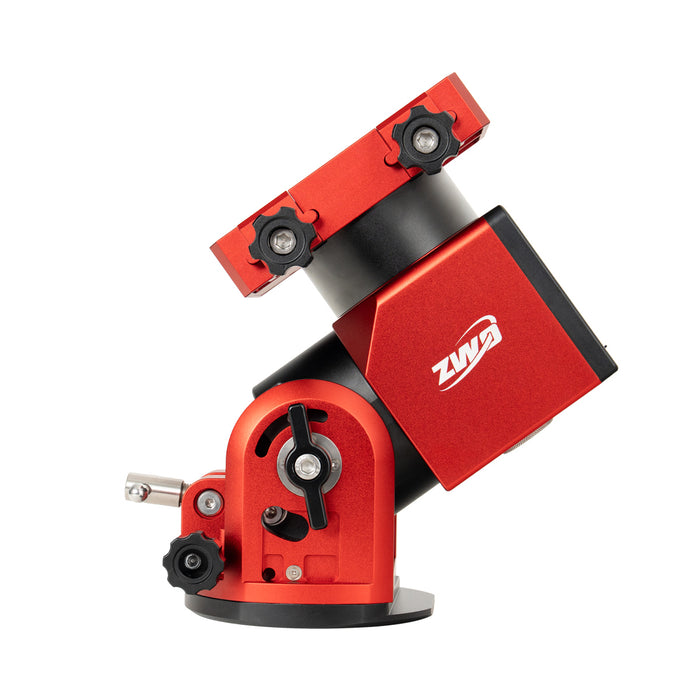

ZWO AM7 Harmonic Equatorial Mount

Flagship Harmonic-Drive Precision for Serious Astrophotography — with Visual Flexibility Built In

The ZWO AM7 Harmonic Equatorial Mount is the most capable and refined mount ZWO has produced to date. Designed with modern astrophotography in mind, the AM7 combines high payload capacity, verified tracking precision, and harmonic-drive engineering in a package that remains genuinely portable and thoughtfully integrated.

This is a mount aimed squarely at imagers running heavier, more demanding optical systems — particularly at longer focal lengths — but it also offers the flexibility to serve visual observers through a dedicated alt-azimuth mode. The AM7 is not just a step forward for ZWO; it is a clear statement of where their mount platform is headed.

A Flagship Mount Designed to Grow with You

At the core of the AM7 is a custom harmonic-drive system developed specifically for astronomical tracking. Harmonic mounts are valued for their ability to deliver high torque and smooth motion without relying on large counterweights, and the AM7 represents ZWO’s highest-capacity implementation of this approach.

The mount supports up to 44 lb (20 kg) of payload without counterweights, allowing many complete imaging systems to be run in a clean, compact configuration. For heavier optical tubes or longer moment-arm setups, the AM7 can carry up to 66 lb (30 kg) when counterweights are used, providing room to grow into larger telescopes and more complex imaging trains over time.

Rather than forcing you to replace your mount as your equipment evolves, the AM7 is designed to scale with your ambitions.

Precision You Can Verify

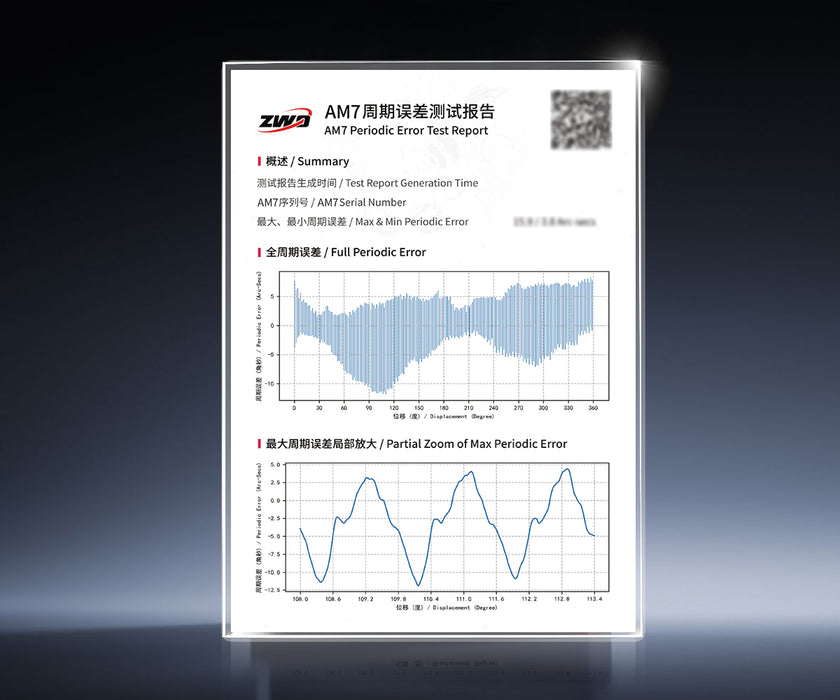

Tracking accuracy is one of the most critical — and most misunderstood — aspects of mount performance. Rather than relying solely on published specifications, ZWO individually tests every AM7 before it ships. Each mount includes its own measured periodic error report, allowing you to see the actual performance of the specific unit you own.

The AM7’s periodic error is controlled within ±10 arcseconds, a level well suited to guided astrophotography. In practice, this translates to smoother tracking, less aggressive guiding corrections, and more consistent results during long imaging runs — particularly important when working at longer focal lengths.

This emphasis on verification reflects a design philosophy focused on repeatable, real-world performance rather than optimistic marketing numbers.

Understanding Harmonic-Drive Performance

Like all harmonic-drive mounts, the AM7 is designed to be guided for best results in astrophotography. This is not a limitation, but a deliberate trade-off that favors compact size, high torque, and counterweight-free operation.

When paired with a modern guiding setup, mounts of this class are capable of delivering stable, repeatable tracking that supports demanding imaging applications without the bulk of traditional counterweight-heavy designs. For imagers accustomed to guided workflows, the AM7 fits naturally into established best practices.

Built for Real Imaging Loads

Astrophotography places real mechanical demands on a mount, especially when carrying long focal length telescopes with full accessory trains. The AM7’s harmonic drive features a 300:1 total gear reduction, contributing to strong torque delivery and smooth, controlled motion under load.

This allows the mount to remain composed when supporting heavier imaging systems, resisting disturbances and maintaining consistent behavior throughout the night. The result is a platform that feels stable and predictable — qualities that matter when imaging unattended or operating remotely.

Clean Cable Management That Reduces Setup Friction

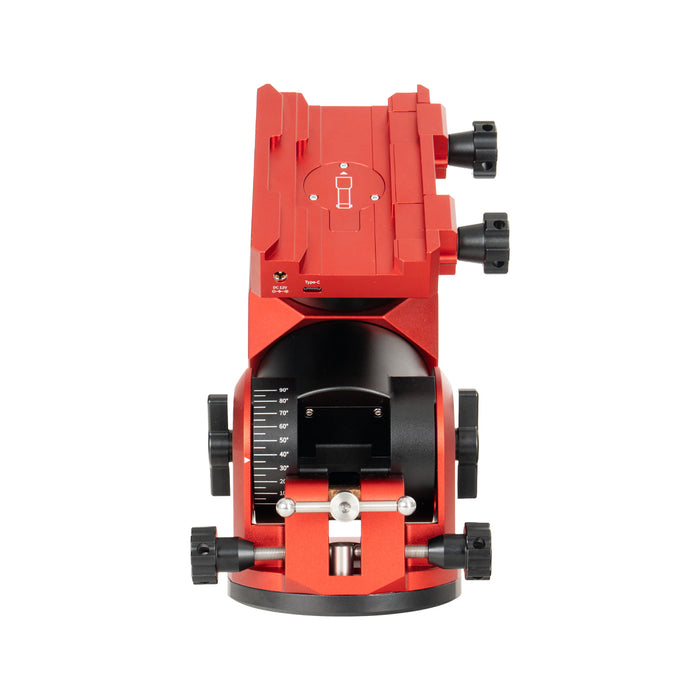

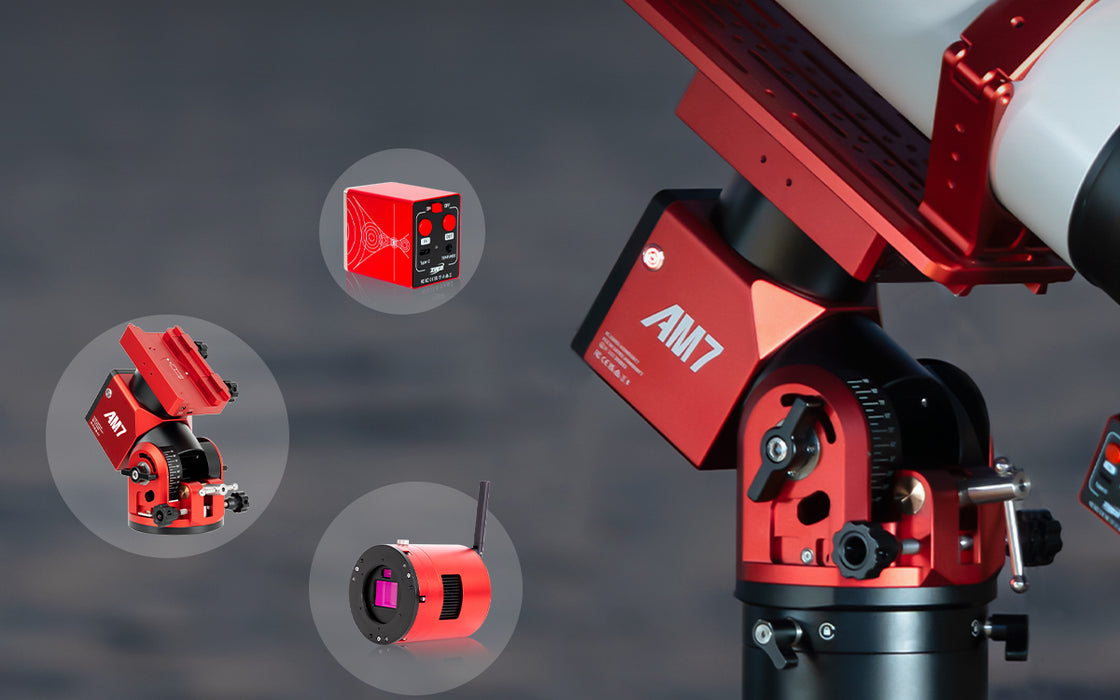

Cable management is often overlooked until it becomes a problem. The AM7 addresses this directly with integrated USB-C and DC power ports built into the dovetail saddle.

By routing power and data through the mount itself, the AM7 reduces the need for external cable runs that can snag, twist, or interfere with slews. For imagers running cameras, electronic focusers, filter wheels, and guide systems, this design simplifies setup, shortens teardown time, and reduces potential failure points during long sessions.

Small details like this make a meaningful difference in day-to-day use.

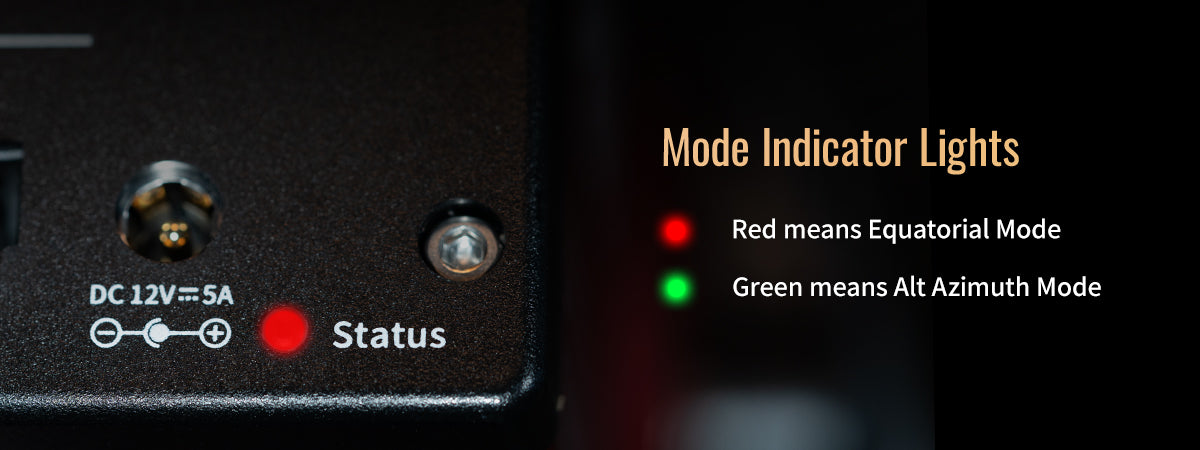

Dual-Mode Operation: Imaging and Visual Observing

While the AM7 is clearly engineered with imaging performance as its primary mission, visual observers should not overlook it. The mount supports two operating modes, allowing it to serve both roles effectively.

Equatorial Mode

Optimized for astrophotography and extended tracking sessions, equatorial mode provides accurate sky tracking and GoTo performance for imaging and serious observing.

Alt-Azimuth Mode

In alt-azimuth configuration, the AM7 becomes a refined visual mount. The same rigid construction, smooth motion, and zero-backlash feel that benefit imaging also translate to confident slews, quick settling, and smooth tracking at the eyepiece.

For observers who image seriously but still enjoy visual sessions, this dual-mode capability allows one high-quality mount to do both without compromise.

Works Anywhere on Earth

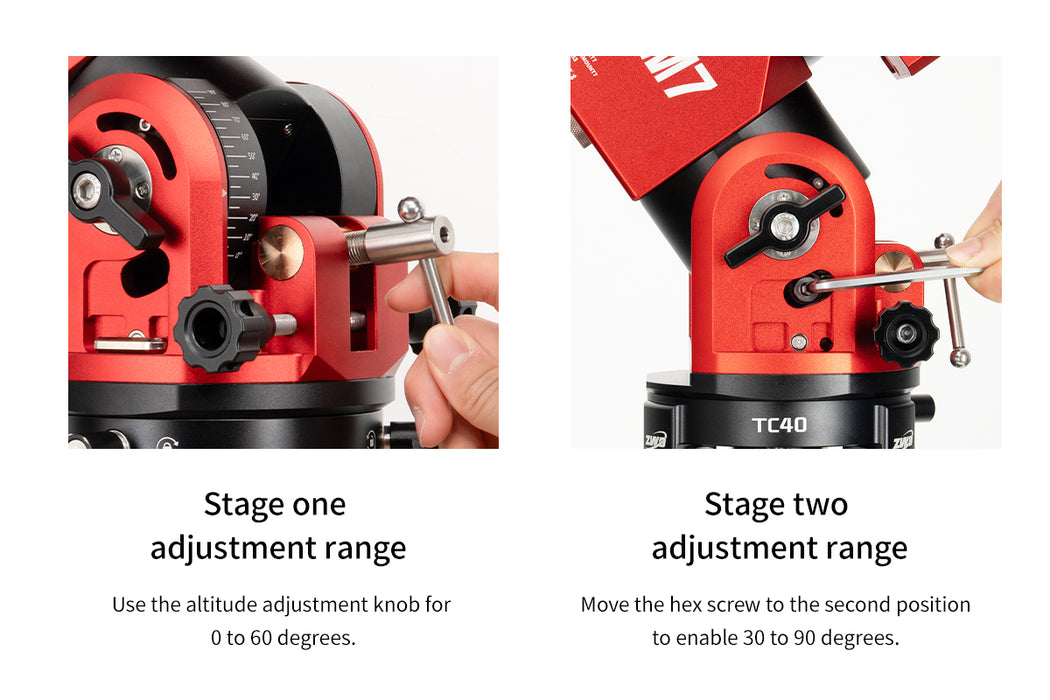

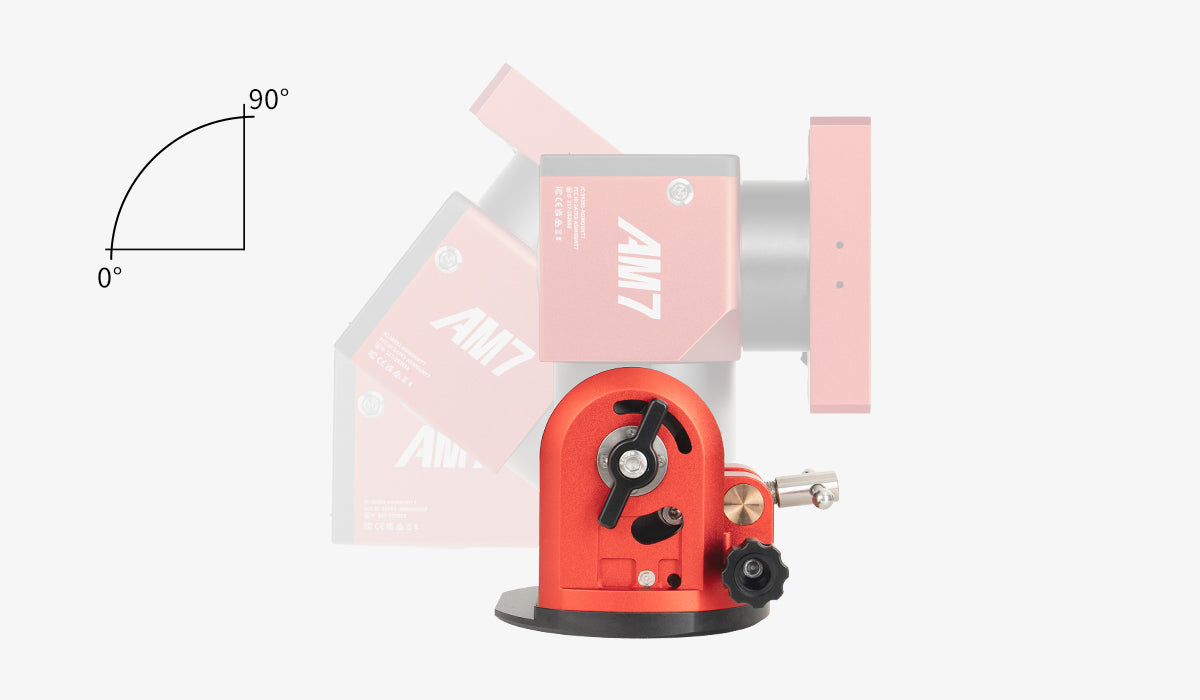

The AM7 supports a full 0–90° altitude adjustment range, allowing it to be aligned and operated at virtually any latitude — from equatorial regions to high-latitude observing sites.

A two-stage altitude adjustment system provides smooth control across this range, maintaining rigidity and precision regardless of where you observe. This flexibility makes the AM7 suitable for travel, temporary setups, or permanent installations worldwide.

Modern Control, Thoughtfully Implemented

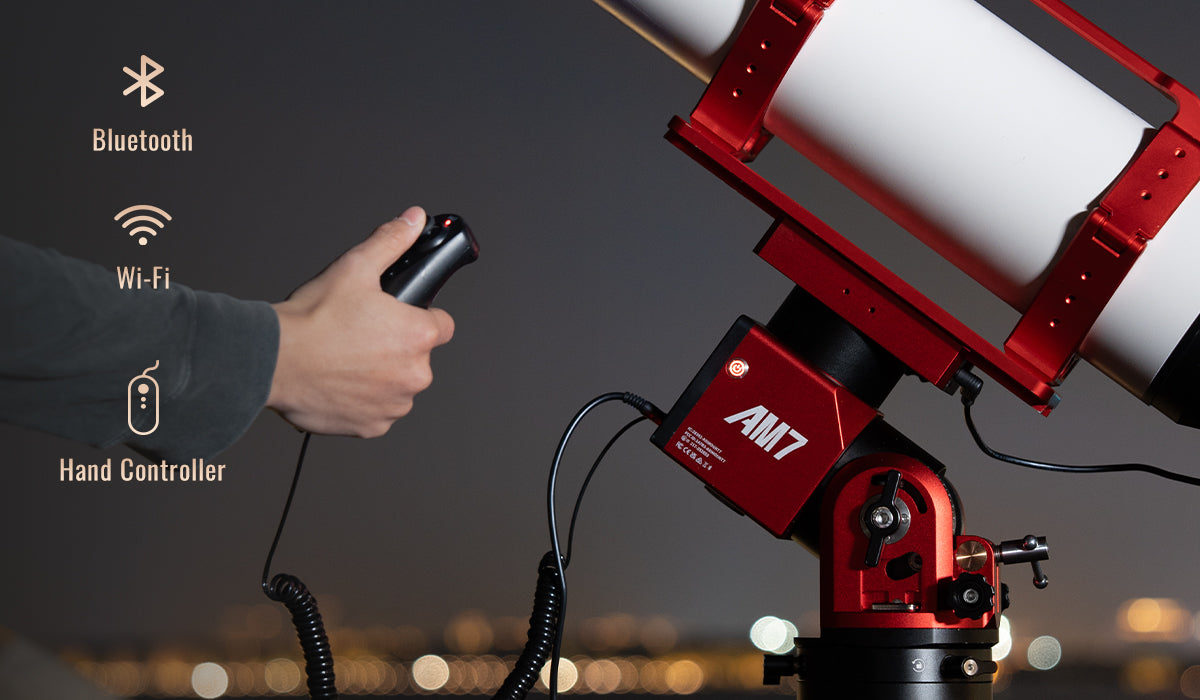

The AM7 offers multiple control options to suit different observing styles and environments:

• Wi-Fi connectivity for network-based control

• Bluetooth connectivity for quick, direct mobile operation

• Included smart hand controller for tactile, reliable control

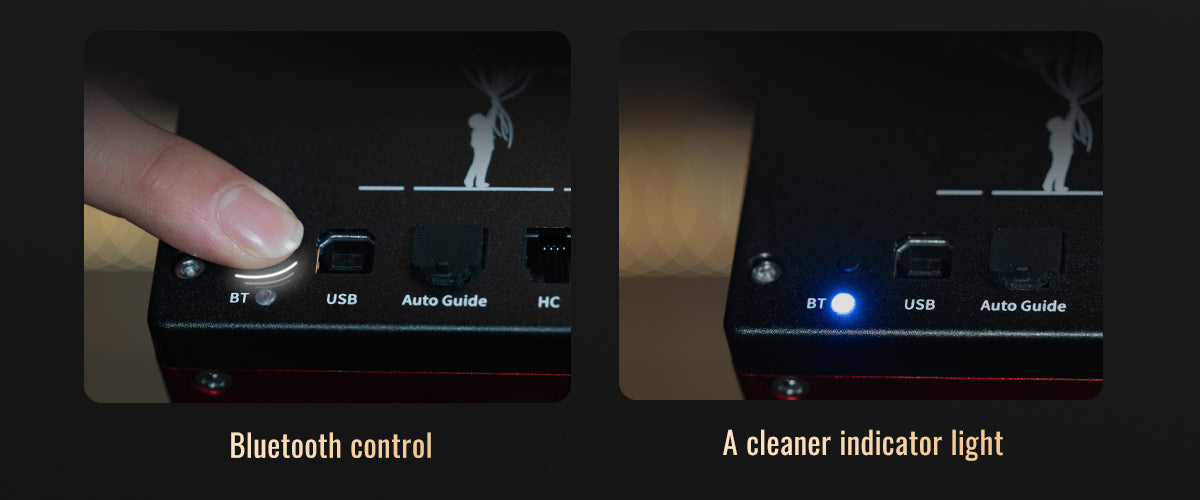

Bluetooth can be enabled or disabled as needed, making the system adaptable for casual field use or installations where tighter wireless control is preferred.

The hand controller itself functions as more than a simple input device. It serves as a central connection hub, providing a built-in Wi-Fi hotspot, web-based control interface, and firmware update capability for both the controller and the mount.

Seamless Integration with ASIAIR

As part of the ZWO ecosystem, the AM7 integrates smoothly with ASIAIR. The mount can be controlled via wired or wireless connections, and ASIAIR station mode allows for clean, cable-minimized setups using the hand controller’s Wi-Fi.

This tight integration removes much of the uncertainty associated with mixing hardware and software from multiple vendors. As ASIAIR continues to evolve, AM7 support is built directly into the same platform, ensuring long-term compatibility and feature growth.

Portable Without Feeling Compromised

Despite its capacity and rigidity, the AM7 mount head weighs only about 14.8 lb (6.7 kg). This makes it manageable to transport and quick to set up, especially compared to traditional mounts offering similar payload capability.

Once installed, the mount feels solid and confidence-inspiring. Yet it remains realistic to carry into the field and use regularly — an important balance for imagers who value both performance and mobility.

What the AM7 Is — and What It Isn’t

The ZWO AM7 is a high-capacity, modern harmonic-drive mount designed for astrophotographers who value precision, portability, and a tightly integrated control ecosystem. It excels when paired with guiding and rewards careful setup with consistent, predictable performance night after night.

It is not intended to replace traditional observatory-class mounts built around massive counterweights and permanent installations. Instead, it offers a different path — one that trades sheer mass for intelligent design, verified factory testing, and real-world usability.

Observing & Imaging Tip

Harmonic-drive mounts are generally happiest when the imaging train is kept compact and well-centered over the saddle. While counterweight-free operation works well for many setups, adding a modest counterweight for longer optical tubes or rear-heavy configurations can help smooth guiding corrections and reduce motor load over long sessions. Think of counterweights not as a requirement, but as a tuning tool — one that lets you optimize the mount for your specific system.

Final Thoughts

The ZWO AM7 Harmonic Equatorial Mount marks a clear milestone in ZWO’s mount development. It combines verified tracking precision, serious payload capacity, and modern harmonic-drive engineering into a platform that is both portable and confidence-inspiring.

As the AM7 begins reaching observatories and imaging rigs worldwide, real-world experience will continue to refine best practices. What is already clear is the engineering intent: a mount designed to support demanding imaging systems within a modern, tightly integrated ecosystem. For astrophotographers ready to move into heavier setups — and for observers who value precision and flexibility — the AM7 stands as ZWO’s flagship mount and a compelling long-term investment.
