Sooner or later, a growing telescope collection begins to outgrow its mount. Perhaps you've moved from a small 70mm refractor to a 100mm apochromat with a cooled camera, filter wheel, and guide scope. Or you've discovered that a 6" Newtonian astrograph offers an attractive combination of aperture and photographic speed, but also presents considerably more weight and wind resistance than the telescope you started with.
Whatever the reason, there comes a point when the mount deserves as much attention as the telescope sitting on top of it. After all, even excellent optics can't deliver sharp long-exposure photographs if the mounting system cannot track the sky accurately and support the equipment without excessive vibration.

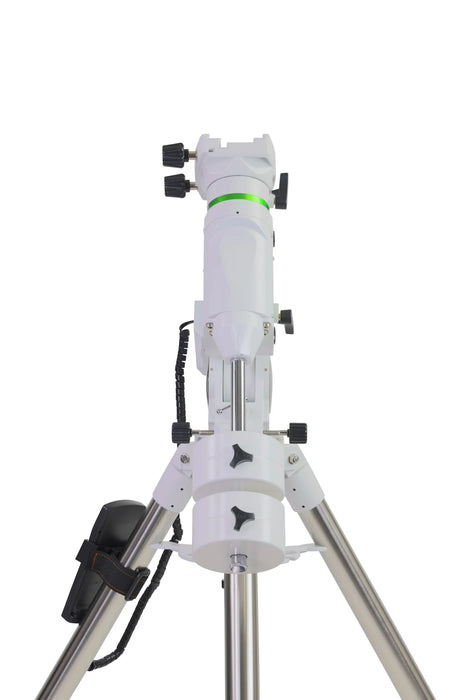

The Sky-Watcher HEQ5-R Pro was developed for observers who have reached that point. With a rated payload capacity of 33 pounds, dual-axis belt drives, improved worm gearing, built-in Wi-Fi, and computerized SynScan GoTo control, it offers many of the capabilities associated with larger equatorial mounts in a package that remains manageable for regular backyard use.
The mount head weighs approximately 26 pounds, while its steel tripod weighs another 13 pounds. That's a considerable amount of equipment, but still noticeably easier to handle than some larger equatorial mounts. Sky-Watcher includes two 11-pound counterweights, so you can build a properly balanced observing or photographic system without immediately purchasing additional weights.
It's particularly attractive for the astronomer who wants a substantial, conventional German equatorial mount but doesn't necessarily want the weight or expense of moving all the way to the EQ6-R Pro.
What Makes the HEQ5-R Pro Different?
The original Sky-Watcher HEQ5 Pro earned a following among observers and astrophotographers because it offered a useful combination of load capacity, computerized pointing, and portability. The HEQ5-R Pro builds on that general concept with meaningful changes to the mechanical drive system and electronic connections.
The most obvious improvement is the use of synchronous toothed-belt drives on both the right ascension and declination axes. Rather than relying on a conventional motor-to-worm spur-gear arrangement, the new drive uses timing belts and pulleys to transmit motion from the stepper motors to the worm gears.
That change has several practical advantages. Properly tensioned belts operate quietly and avoid the direct metal-to-metal gear engagement found in a conventional spur-gear drive. They can also reduce a source of gear backlash, the small amount of lost motion that occurs when the direction of a drive is reversed.
Backlash matters particularly in declination guiding. When a guide camera requests a correction in the opposite direction, excess backlash can delay the response until the mechanical slack has been taken up.
Belt drives don't eliminate every possible source of backlash. The worm-and-wheel mechanism still requires proper adjustment, and the mount's performance depends on its mechanical condition and the load it carries. But the belt system removes one contributor and helps provide smoother transmission of motor movement.
Sky-Watcher has also revised the worm gearing. The HEQ5-R Pro uses a 160-tooth right ascension worm wheel and a 144-tooth declination worm wheel, with larger gearing intended to improve load support and tracking precision.
For the astrophotographer, these changes are more important than simply making the mount quieter. They provide a better mechanical foundation for guiding corrections during the hundreds or thousands of exposures that may be collected over the course of a night.
Motor Cables Where They Belong
Another welcome change is the internal routing of the motor wiring.
On some equatorial mounts, cables connecting the motors and control electronics are exposed on the outside of the mount. That makes them easier to see, but also gives them opportunities to catch on equipment, become strained during a slew, or interfere with the movement of the telescope.
The HEQ5-R Pro keeps its motor cables inside the mount housing. That reduces external clutter and eliminates those particular motor cables as potential snag points during movement.
This becomes especially useful when photographing objects on both sides of the meridian. As an equatorial mount changes its orientation, external wires can move through a considerable range. Keeping the motor wiring internal removes one thing that must be watched.
It doesn't mean every cable in an imaging system disappears. Your camera, electronic focuser, guide camera, and other accessories may still require external power and data connections. Those cables need sufficient slack and proper routing to accommodate a complete range of mount movement.
But it's certainly better to have fewer exposed cables to worry about, particularly when the mount is operating automatically and you're not standing beside it for every exposure.
33 Pounds of Rated Capacity
Sky-Watcher specifies a 33-pound instrument capacity for the HEQ5-R Pro. That's sufficient for a variety of popular refractors, compact catadioptric telescopes, and smaller Newtonian reflectors.
An 80mm or 100mm apochromatic refractor makes a natural photographic companion. These telescopes provide enough focal length for many galaxies and nebulae while remaining relatively compact and easy to balance.
A well-equipped 100mm refractor may carry more weight than expected once a cooled camera, filter wheel, guide equipment, electronic focuser, and adapters are installed. The HEQ5-R Pro provides useful room for those additions.
A 6" Newtonian astrograph may also be suitable, provided the complete equipment weight stays within the mount's rating and the tube can be properly supported. Newtonians deserve a little more consideration because their length and diameter expose more surface area to the wind, and the camera mounted on the side can complicate balancing.
The important distinction is between a manufacturer's maximum payload rating and the load that will provide the most forgiving long-exposure photographic performance.
A telescope that weighs 33 pounds and can be carried safely by a mount isn't automatically the ideal arrangement for photographing galaxies at long focal lengths. Tracking accuracy depends on balance, tube length, wind, tripod stability, focal length, and how carefully the entire system is configured.
For visual observing, where a small tracking error is less consequential, you may be comfortable operating closer to the published capacity. For demanding astrophotography, keeping a practical margin below that rating is sensible.
The HEQ5-R Pro is best understood as a capable mid-sized equatorial mount rather than a substitute for an unlimited-capacity observatory mounting system.
SynScan GoTo and Built-In Wi-Fi

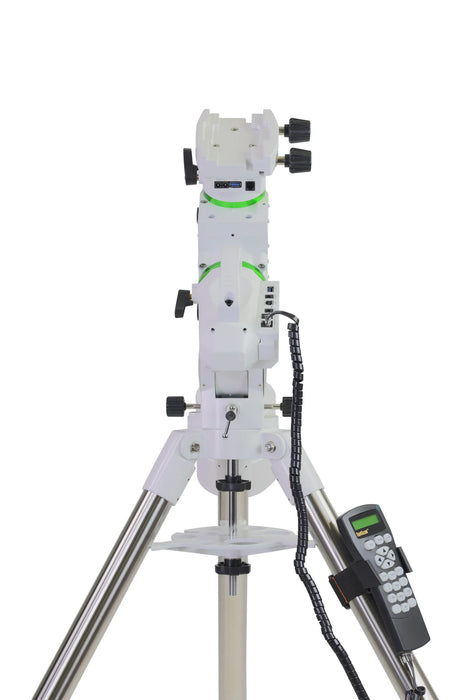

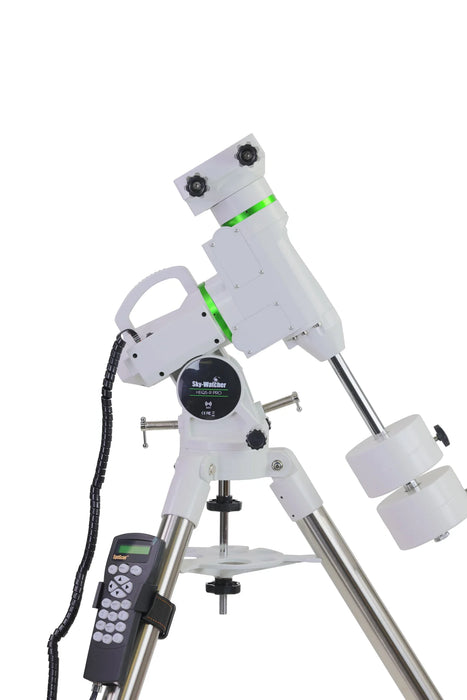

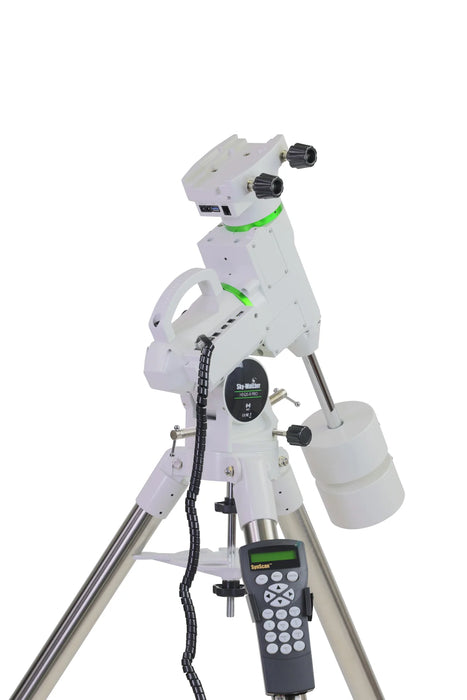

The HEQ5-R Pro includes Sky-Watcher's SynScan V5 computerized hand controller, with a database containing more than 42,900 astronomical objects.
That includes the familiar Messier catalog, the New General Catalogue (NGC), and the Index Catalogue (IC), along with additional celestial objects.
Once the mount has been set up and aligned, you can select an object from the controller and have the telescope slew toward it automatically. This is particularly useful when an evening's observing list includes objects scattered across different parts of the sky.
For someone beginning to explore fainter deep-sky objects, computerized pointing removes much of the frustration of locating something that may not be visible in a finder scope. Experienced observers can also appreciate the convenience, especially when switching among photographic targets.
The mount supports sidereal, lunar, and solar tracking rates. Sidereal tracking compensates for the apparent movement of the stars as Earth rotates, while the other rates account for the different apparent motions of the Moon and Sun.
Built-in Wi-Fi provides another way to operate the mount. Using Sky-Watcher's SynScan Pro application on a compatible phone or tablet, you can control pointing and other supported functions without relying exclusively on the physical hand controller.
That's convenient when setting up a portable system or when you prefer controlling the telescope from a nearby chair rather than standing at the tripod.
The included SynScan V5 hand controller also provides a USB-B connection for compatible computer control. With the necessary software and drivers, you can integrate the mount with supported planetarium programs and imaging applications.
The USB-B computer cable is not included, so plan to supply one if you intend to use that particular connection method.
Connections for an Imaging System
Modern astrophotography equipment often needs several different connections. The camera needs power and data, the guide camera must communicate tracking corrections, and an electronic focuser may need its own power or computer connection.
The HEQ5-R Pro includes accessory cable-management connections intended to make the arrangement more convenient.
Sky-Watcher provides two 2.1mm DC accessory power connections and a USB-A connection, along with the mount's ST-4-compatible autoguider interface and computer-control options.
The advantage is straightforward: compatible cables can be connected near the mount rather than every accessory requiring a long cable that runs independently toward the ground.
It's important, however, to distinguish these connections from a complete powered USB hub or dedicated imaging power-distribution system.
Sky-Watcher does not describe the HEQ5-R Pro's USB connection as a powered hub for running multiple imaging devices. Likewise, equipment connected to the DC accessory ports must be compatible with the available voltage, connector polarity, and current capacity. Check those requirements before connecting a cooled camera, dew heater, or other accessory.
Some imaging configurations may still benefit from a separate powered USB hub or purpose-built power-distribution box.
The mount includes an ST-4-compatible autoguider connection with selectable guide correction rates of 0.25x, 0.5x, 0.75x, and 1x sidereal speed.
An ST-4 connection allows a compatible guide camera to send directional tracking corrections directly to the mount. Depending on the equipment and software being used, guiding may also be performed through a computer-control connection using suitable software and drivers.
For long-exposure photography, autoguiding is an important part of getting consistently round stars, particularly as focal length increases.
Polar Alignment Without a Traditional Polar Scope
Every German equatorial mount needs to have its right ascension axis aligned with Earth's rotational axis to track the sky accurately.
For visual observing, an approximate polar alignment may be sufficient. Long-exposure astrophotography places greater demands on that alignment because errors can produce field rotation and make guiding more difficult.
The HEQ5-R Pro does not include a conventional optical polar alignment scope. Instead, Sky-Watcher provides a SynScan polar alignment procedure that can refine the mount's alignment using suitable visible stars.
This is particularly helpful at locations where Polaris is hidden behind a building or tree.
The mount's mechanical altitude and azimuth controls allow the polar axis to be adjusted during the procedure. The altitude mechanism accommodates observing latitudes from 5° to 72°, covering a wide range of observing locations.
Astrophotographers using a computer can also consider compatible plate-solving polar alignment software. Such programs photograph and identify star fields, calculate the mount's polar alignment error, and guide the observer through the necessary adjustments.
Whether you use the SynScan procedure or a separate electronic alignment system, the principle is the same: take the time to establish accurate polar alignment before beginning a long sequence of exposures.
The mount will reward that preparation with easier guiding and fewer unnecessary corrections throughout the night.
A Steel Tripod and Practical Counterweight System
The HEQ5-R Pro comes with an adjustable tripod using 1.75" rolled-steel legs, a familiar and proven arrangement for this class of equatorial mount.
The tripod weighs approximately 13 pounds and adjusts from about 33" to 45.5" in height. A metal accessory tray is included, providing a convenient place for eyepieces and other small observing accessories while contributing to the assembled tripod structure.
The mount head weighs approximately 26 pounds, making it realistic for many owners to carry outside and install without requiring a permanent observatory.

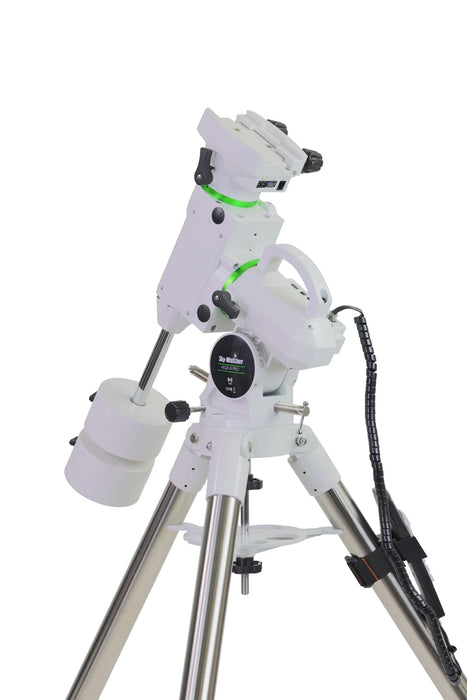

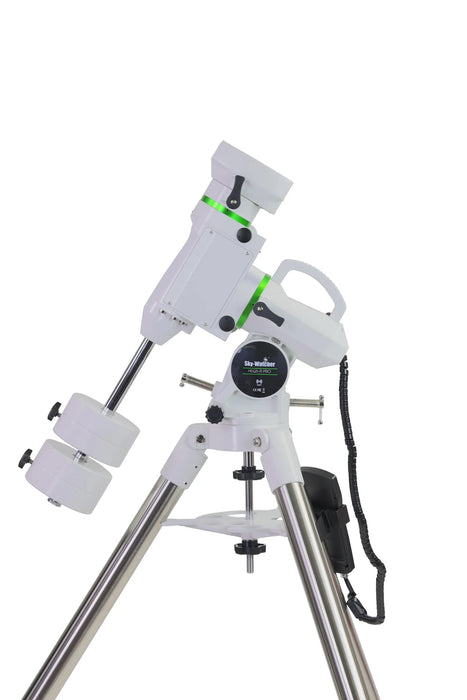

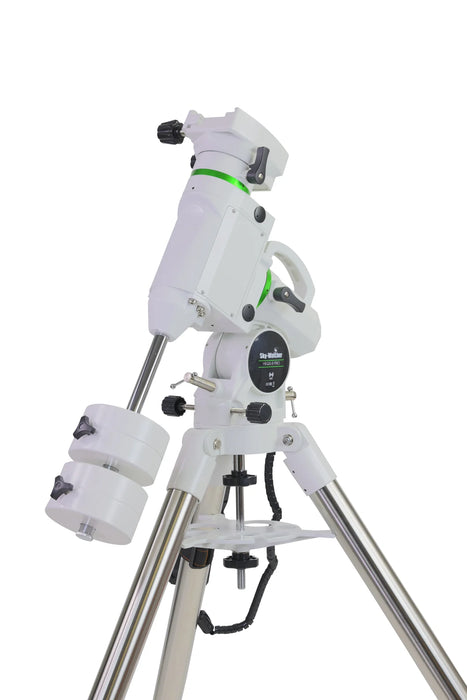

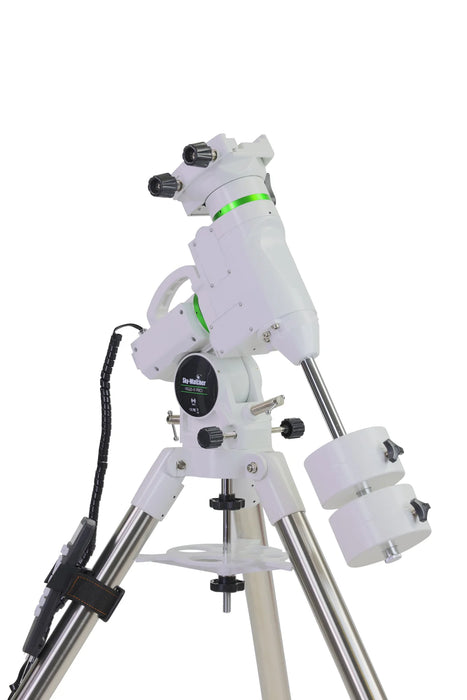

Two 11-pound counterweights are included, along with a threaded counterweight shaft and an extension section for additional positioning flexibility.
The counterweights are not included in the 33-pound telescope payload rating. Their job is to counterbalance the instrument and accessories carried by the mount.
In a conventional German equatorial mount, balancing the telescope reduces the effort required of the motor drive and helps the system respond predictably during tracking and guiding.
The counterweight arrangement also makes it possible to adapt the mount to telescopes of differing weights, within its specified limits.
Remember that the complete mounting system is considerably heavier than the mount head alone. Head, tripod, and two included counterweights add up to approximately 61 pounds before accounting for the counterweight shaft, tray, telescope, and other accessories.
You can transport those pieces separately, which is one reason the HEQ5-R Pro remains a practical backyard mount despite its substantial assembled weight.
Under the Night Sky
A capable equatorial mount opens up more observing and photographic possibilities than its specifications alone might suggest.
With a modest apochromatic refractor, the HEQ5-R Pro makes an attractive platform for wide-field imaging. The North America Nebula in Cygnus, the Heart Nebula in Cassiopeia, and the Pleiades in Taurus all provide opportunities to photograph broad regions of sky filled with stars, gas, and dust.
An 80mm or 100mm refractor can also work beautifully on the Orion Nebula during winter, or the Andromeda Galaxy in autumn. The actual field depends on the telescope's focal length and the camera sensor being used.
Move to a suitably sized 6" Newtonian astrograph and the emphasis can shift toward smaller subjects. The Whirlpool Galaxy, M51, is especially rewarding during spring, with its prominent spiral arms and interacting companion.
The Leo Triplet offers another attractive galaxy project, while M81 and M82 in Ursa Major provide two very different galactic shapes within the same region of sky.
For visual observers, the HEQ5-R Pro can carry an appropriately sized Maksutov, Schmidt-Cassegrain, or refractor for a wide variety of observing sessions.
Jupiter's cloud belts, Saturn's rings, and the changing lunar terminator are all worthwhile targets. Computerized pointing is particularly convenient when moving from a bright planet to a distant star cluster or a faint galaxy.
The mount itself doesn't determine what detail you'll see; that's primarily the job of the telescope, atmosphere, and observer. But a steady mounting system allows the optical instrument to do its work without introducing unnecessary vibration and movement.
For astrophotography, that can be the difference between collecting several hours of useful data and spending the evening discarding exposures spoiled by tracking problems.
Observing Tip: Get the Alignment Right Before You Start
If you're setting up the HEQ5-R Pro for imaging, give yourself a few minutes to establish a sound foundation before attaching too much importance to the guiding numbers on your computer screen.
Begin with the tripod firmly planted and the mount secured. Set the polar-axis elevation approximately to your observing latitude and orient the mount toward the appropriate celestial pole.
Install the telescope and imaging accessories, then balance the equipment following Sky-Watcher's instructions. Make sure the camera, guide equipment, and other connections have enough cable slack to accommodate the mount's movement.
Next, refine polar alignment using the SynScan routine or a compatible computer-assisted method.
Once polar alignment is satisfactory, perform the necessary pointing alignment or plate-solving procedure, bring the guide system into focus, and begin testing tracking performance.
Don't be discouraged if the first guiding graph isn't perfect. Seeing conditions, wind, cable drag, imbalance, mechanical adjustment, and guide-camera settings can all influence the result.
It is often more productive to correct a clear mechanical or alignment problem than to spend an hour changing software settings in an attempt to compensate for it.
And before leaving the mount to image unattended, perform a controlled slew through the parts of the sky you intend to photograph. Verify that nothing contacts the tripod, counterweight assembly, or cables, particularly during a meridian flip.
A little attention at the beginning of the evening makes the rest of the night much more enjoyable.
Know Before You Buy
-
External power is required. The mount operates from 9–12.6V DC. A DC power cord is supplied, but an AC-to-DC power adapter or field battery must be purchased separately. Sky-Watcher's global specification calls for a 3A supply for the mount; verify additional power needs if using accessory outputs.
-
33 pounds is the rated instrument capacity. For long-exposure imaging, consider telescope length, total accessory weight, wind resistance, focal length, and practical payload margin.
-
No conventional polar scope is included. The mount supports SynScan-assisted polar alignment and compatible computer-based alternatives.
-
Autoguiding is recommended for demanding long exposures. The mount provides an ST-4 guide connection and supports compatible computer-control arrangements.
-
USB-B cable sold separately. You'll need a suitable cable for a wired computer connection through the SynScan hand controller.
-
Accessory connections have limitations. Check voltage, polarity, current capacity, and USB requirements before connecting cameras and other devices.
-
No carrying case is included. The mount head and tripod are supplied in their shipping packaging.
FAQ
- Should I buy the HEQ5-R Pro or EQ6-R Pro?
- The HEQ5-R Pro provides a 33-pound instrument capacity with a mount head weighing approximately 26 pounds. The larger EQ6-R Pro offers greater payload capacity and a heavier mounting system. Choose the HEQ5-R Pro if your telescope and accessories fit comfortably within its capabilities and regular portability matters. The EQ6-R Pro is worth considering for larger telescopes, longer tubes, and heavier imaging systems.
- What is different from the earlier HEQ5 Pro?
- The HEQ5-R Pro incorporates revised worm gearing, belt drives on both axes, internally routed motor wiring, built-in Wi-Fi, and updated electronic connections for modern imaging equipment.
- Does the HEQ5-R Pro have built-in Wi-Fi?
- Yes. Built-in Wi-Fi allows compatible phones and tablets to control the mount through Sky-Watcher's SynScan Pro application. A SynScan V5 physical hand controller is also included.
- Can I use it for astrophotography?
- Yes. The mount provides equatorial tracking, dual-axis belt drives, an ST-4-compatible autoguider connection, and computer-control options. Accurate polar alignment, suitable guiding, and an appropriately sized telescope are important for successful long-exposure imaging.
- Does the mount include a polar alignment scope?
- No conventional optical polar scope is included with the U.S. package. Sky-Watcher provides a SynScan polar alignment routine, and compatible computer-based plate-solving alignment systems may also be used.
- Can I power my camera through the mount?
- The HEQ5-R Pro includes two DC accessory connections, but any camera or accessory must be compatible with the available voltage, connector polarity, and current capacity. Check the electrical requirements of the specific equipment before connecting it. High-demand camera cooling systems and additional accessories may require separate power distribution.
- What power supply do I need?
- Use a properly regulated DC supply or field battery compatible with the mount's 9–12.6V input requirement. Sky-Watcher's global specifications call for 3A. Account for any additional accessory loads and confirm the connector and polarity before use. A DC cord is supplied, but an external power source is not included.
- Are counterweights included?
- Yes. Two 11-pound counterweights, a counterweight shaft, and an extension are supplied. Additional counterweights may be necessary for certain telescope configurations, subject to the mount's allowable loading.
What's Included
- Sky-Watcher HEQ5-R Pro computerized German equatorial mount head with built-in Wi-Fi
- Dual-format D/V-style telescope dovetail saddle
- SynScan V5 GoTo hand controller and connection cable
- Hand controller holder
- Adjustable tripod with 1.75" rolled-steel legs
- Metal tripod accessory tray
- Two 11-pound counterweights
- Threaded counterweight shaft, approximately 11.25" long and 20mm in diameter
- 7.25" counterweight shaft extension
- DC power cord
- Instruction manual
Telescope, camera, guide equipment, external power supply or battery, USB-B computer cable, and carrying case are not included.
Final Thoughts
A good equatorial mount doesn't usually receive the same attention as a beautifully finished refractor or a large reflecting telescope. There isn't a colorful nebula to admire through its drive gears or a dramatic view of Saturn waiting inside the control electronics.
But anyone who has spent a night struggling with vibration, poor tracking, or cables that catch as the telescope moves soon develops an appreciation for a well-designed mounting system.
The Sky-Watcher HEQ5-R Pro builds on a familiar equatorial mount design with several worthwhile improvements. Belt drives on both axes provide quieter, smoother motor transmission, revised worm gearing supports the increased 33-pound payload rating, and internal motor wiring removes one potential source of cable trouble.
Built-in Wi-Fi and the SynScan V5 hand controller provide convenient computerized pointing, while the electronic connections make it easier to incorporate the mount into a modern astrophotography system.
The HEQ5-R Pro isn't as light as a compact strain-wave mount, and it doesn't offer the load capacity of a much larger observatory-class equatorial. But it occupies a useful middle ground for observers who want the familiar balancing and tracking characteristics of a traditional German equatorial mount without committing to an unnecessarily large system.
Pair it with an appropriately sized telescope, take the time to establish good polar alignment and balance, and it can become the dependable foundation of many enjoyable nights under the stars.
And that's really what a good mount should do. Once it's properly set up, the mount should stop demanding your attention and let you concentrate on the reason you went outside in the first place: the sky.
