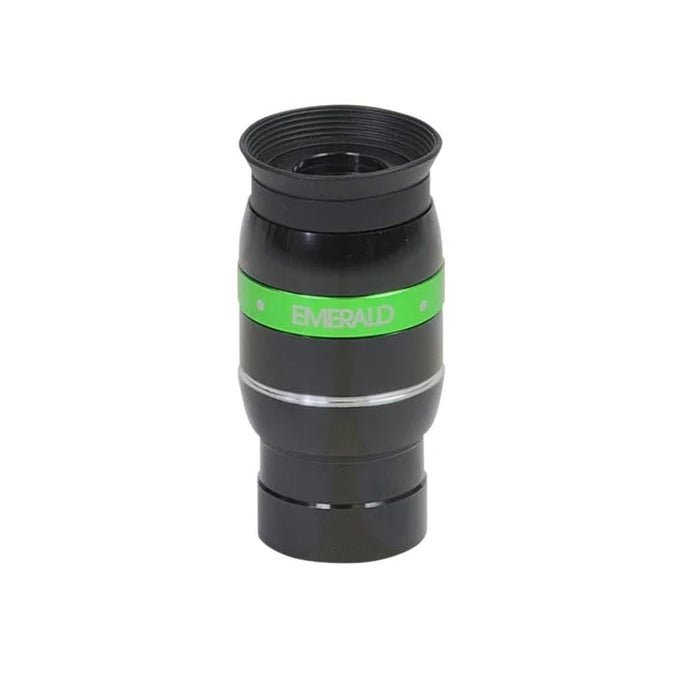

The 9mm focal length sits near the center of where most observers spend their time. It's high enough to reveal meaningful lunar and planetary detail, yet moderate enough to remain useful on most nights. The Sky-Watcher Emerald 9mm combines that practical magnification with an 82° apparent field and a 7-element optical design that keeps the view sharp and immersive.
The 82° Sweet Spot
Eyepiece design has always been a series of compromises. Widen the field of view and you introduce edge distortion. Narrow it and you can keep the image clean, but you lose the immersive experience that draws observers back outside night after night. The Emerald series sits in the middle — wider than the classic 68° designs that dominated the market for 40 years, but not as extreme as the 100°+ ultra-wides that demand perfect centering and leave you searching for the object you were just looking at. Many observers find 82° offers an excellent balance between immersion and ease of use. It delivers genuine immersion without the learning curve, and it works across the entire range of focal lengths where observers actually spend time: from 9mm planetary sessions down to 22mm deep-sky sweeping.
What 9mm Gets You
A 9mm eyepiece in a typical 8" f/6 Dobsonian (1200mm focal length) delivers 133× magnification. In a 4" f/10 refractor (1000mm focal length), you're at 111×. Those are numbers that matter. At 111–133×, you're at the threshold where planetary detail begins to resolve: the bands of Jupiter clear enough to count, Saturn's rings structured rather than just rings, the lunar terminator sharp enough that crater rims cast actual shadows. You're also at the edge of what most observers can sustain — any higher and atmospheric turbulence (seeing) becomes the limiting factor rather than the telescope. Nine millimeters is the workable limit for most users, most nights, most locations.
The catch is that a 9mm eyepiece needs excellent optical correction. The 7-element design in the Emerald series is there for a reason. It doesn't just magnify — it corrects. The optical design helps control edge aberrations and maintain image quality across the field.
Frequently Asked Questions
Can I use this on a refractor? A small scope?
Yes, on any telescope with a 1.25" focuser. On smaller scopes (under 4" aperture), 133× becomes overly magnified relative to the light-gathering power of the telescope. Use the 16mm or 22mm Emerald for lower power instead. On larger scopes (8" and up), this becomes your go-to planetary eyepiece.
How does the 82° field compare to older eyepieces I already own?
If you're coming from 50° Plössl-style eyepieces, the difference is immediate. The field is roughly 60% wider (5.6mm true field vs 3.4mm true field in a typical 4" scope). You'll see more sky, track objects with less re-centering, and the immersion is noticeably better. It's still narrower than ultra-wide 100°+ designs, which translates to less edge distortion and better off-axis correction.
Is the 8mm eye relief a problem?
For uncorrected vision, no. For eyeglass wearers, yes — you'll need to remove glasses or accept looking slightly off-axis. Some observers use it as written; others adjust. Know your setup before you buy.
Observing Session Tip
When you first use this eyepiece, resist the urge to crank it to full magnification on a night of average seeing. Start with your 16mm or 22mm to find the object, center it, and let the atmosphere settle. Then switch to the 9mm. Give your eye a moment to adjust to the brighter field. High magnification feels like you're looking through a smaller opening — it takes a few seconds for your visual system to lock in. Once it does, and if the seeing is good, you'll understand why people spend thousands on refractors. This is where the detail lives.
Accessories
-
1.25" diagonal. Any 1.25" mirror diagonal works with this eyepiece. High-quality diagonals (multi-coated, low-profile mirror) improve light transmission and comfort compared to stock diagonals.
-
Eyepiece filter set. Lunar filter (reduces glare), polarizing filter (adds contrast), and color filters for planetary observation.
-

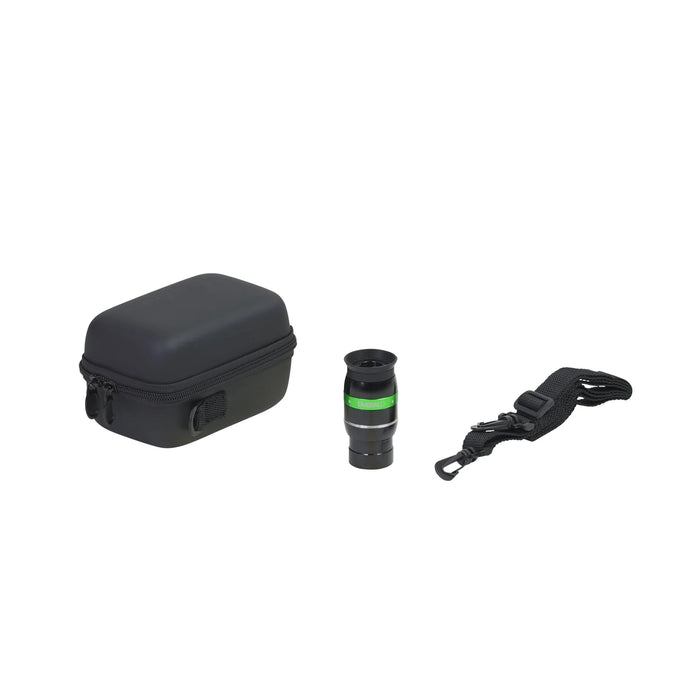

Eyepiece case or foam holder. The included travel case handles transport. For permanent storage, eyepiece foam cases protect against dust and temperature swings.
Final Thought
The difference between looking at a planet and resolving a planet is one eyepiece. The Emerald 9mm at 82° delivers the correction, the field, and the practical magnification to cross that line. It doesn't reinvent the wheel — it refines a wheel that's been working for decades. That's the job of a good high-power eyepiece: not to revolutionize, but to deliver the optics you need when you finally point at something small and distant and want to see what's actually there.
