The Sky Rover 130 GPS is already a capable imaging refractor at native focal length — 130mm of Super ED triplet glass at 910mm f/7. That's a versatile focal ratio: fast enough for deep-sky work without a reducer, long enough for smaller targets that benefit from image scale. Planets, galaxies, emission nebulae — the 130 GPS handles all of them well at f/7. But there are nights when you want more sky in the frame and faster photon collection. The SR130GPSRFF 0.8× reducer steps the system down to 728mm at f/5.6, opening up the field and cutting your exposure times — while the integrated field flattener keeps stars round and tight all the way to the corners.
Expanding the Range
At native 910mm f/7, the 130 GPS already delivers clean, corrected images across a generous field. The SR130GPSRFF adds a second configuration: 728mm at f/5.6 gives you 36% faster exposures and roughly 64% more sky in the same frame. Large nebulae that fit a little tight at 910mm now have room to breathe. Multi-panel mosaics become more practical with shorter exposures per tile. And field curvature at the new focal length is corrected by the integrated flattener, so your stars stay pinpoints from center to corner. Thread it on when you want to go wide. Thread it off when you want the full 910mm reach. Two configurations from one scope.
Reducer vs. Flattener: Know the Difference
This is a 0.8× reducer — it changes both the focal length and the focal ratio. The 130 GPS goes from 910mm f/7 down to 728mm f/5.6. The reducer also includes integrated field flattening to correct the curved focal plane at the new focal length. If you want to image at the full 910mm f/7 with flat-field correction instead, Sky Rover offers the SR130GPSFF 1× flattener — same scope, same focal length, just a flat field. But if you want to open up the field and accelerate your exposures, the reducer does both in a single, precision-engineered component.
Purpose-Built Precision

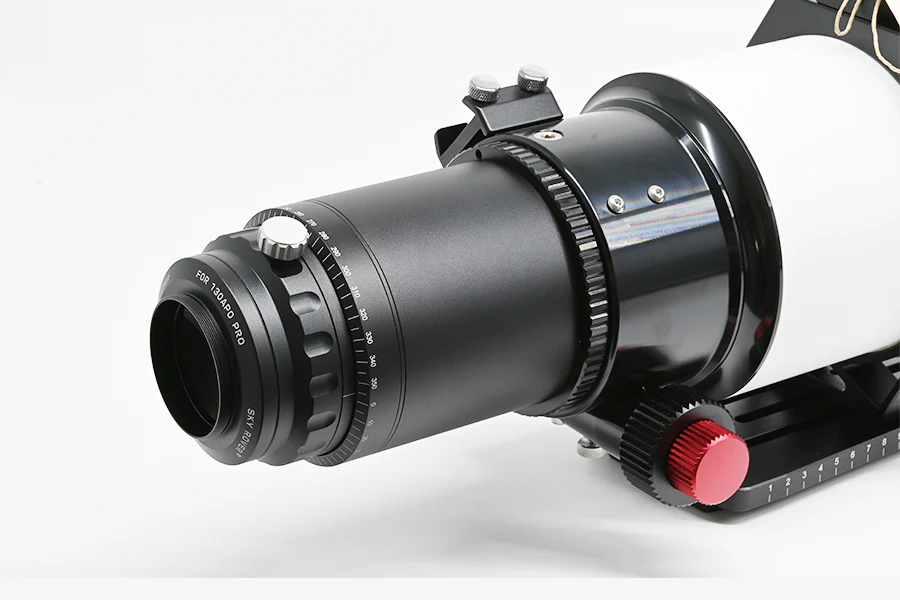

The 130 GPS has an integrated Camera Angle Adjuster (CAA) with M82 output threads — the SR130GPSRFF threads directly onto this interface. The scope's oversized 3.7" focuser bore means no vignetting at the reduced focal length, and no need for auxiliary spacers or adapters. Threading it on takes seconds. Removing it takes seconds. The engineering is clean and minimalist, exactly how purpose-built optics should work.
Wide-Field Deep-Sky and Mosaics
At f/5.6 with 728mm focal length and a flat field, the 130 GPS makes an excellent mosaic platform. Multi-panel projects become more efficient — shorter exposures per panel mean less cumulative integration time, and the flat field means your panel edges stay seamless. Targets like the Veil Nebula complex, the Heart and Soul Nebulae, and large galaxy groups that benefit from a wider framing all gain from the reduced focal length. This is a specialist reducer, purpose-designed for the 130 GPS, and it excels at exactly what it's meant for.
Camera Connection
The camera side of the reducer connects to your imaging equipment via standard threads. DSLR and mirrorless cameras connect via a T-ring for your specific camera mount (sold separately). Dedicated CMOS and CCD astronomy cameras typically have 48mm T-threads built in and connect directly without a T-ring.
What's Included
- Sky Rover SR130GPSRFF 0.8× reducer/field flattener for 130 GPS
Features
-
0.8× reduction with integrated field flattening. Steps the 130 GPS from 910mm f/7 down to 728mm f/5.6 while simultaneously correcting field curvature. Faster exposures, wider fields, flat stars corner to corner.
-
Specialist design for the Sky Rover 130 GPS. Not a generic reducer. Purpose-engineered for the 130 GPS's optical prescription and mechanical interface. The result is optical performance that matches the scope's inherent quality.
-
Threads onto integrated CAA. The 130 GPS's Camera Angle Adjuster provides M82 output threads for a precision mechanical interface. No adapters, no guesswork — just thread and image.
-
No vignetting risk. The 130 GPS's 3.7" oversized focuser bore means full illumination at the reduced focal length, even with large sensors.
-
Widens your imaging options. Open up the field for wide nebulae and large targets. Cut exposure times by more than a third. Build mosaics with shorter integration per panel. Same optical quality, different framing.
-
Standard camera-side threading. DSLR and mirrorless bodies connect via a T-ring (sold separately); dedicated CMOS/CCD astronomy cameras attach directly — 48mm T-threads are standard on most.
-
45mm Image Circle. Get the most out of your full frame camera with an image circle that makes it right at home.
Frequently Asked Questions
What's the difference between the SR130GPSRFF and the SR130GPSFF?
The SR130GPSRFF is a 0.8× reducer — it steps down to 728mm f/5.6 with integrated field flattening. The SR130GPSFF is a 1× flattener that maintains the native 910mm f/7 and only corrects field curvature. If you want the full 910mm focal length with a flat field, use the 1× flattener. If you want to open up the field and speed up your exposures, the reducer is your tool. Some imagers own both and choose based on the target.
Will this reducer work on any other Sky Rover scope?
No. The SR130GPSRFF is engineered specifically for the 130 GPS's optical prescription and mechanical interface. Using it on a different scope will not produce correct results. Each Sky Rover scope has its own matched reducer and flattener.
Is the 130 GPS already fast enough to image without a reducer?
Yes. At f/7, the 130 GPS is a solid imaging platform on its own — that's not a slow focal ratio by any means. The reducer isn't a necessity; it's an option. It gives you a wider field and faster exposures for nights when that's what the target calls for. Plenty of excellent deep-sky work is done at f/7 and slower.
What cameras does this work with?
DSLR and mirrorless cameras connect via a T-ring for your specific camera mount (sold separately). Dedicated CMOS and CCD astronomy cameras typically have 48mm T-threads built in and connect directly without a T-ring.
Do I need spacers or auxiliary optics with the reducer?
No. The reducer is a complete optical solution. It threads onto the 130 GPS's CAA and connects directly to your camera. No barlows, spacers, or adapters are needed — the engineering is built into the reducer itself.
Final Thoughts
The 130 GPS at f/7 is already a versatile imaging refractor — not too long, not too fast, and optically clean across the field. The SR130GPSRFF gives you a second option: 728mm at f/5.6 when the target calls for a wider view and faster integration. Thread it on in seconds, thread it off in seconds. No compromise to the native system, no adapters, no fuss. If you're imaging with the 130 GPS and want the flexibility to switch between two well-matched focal lengths depending on the night's plan, this is the piece that makes it happen.
