The Problem with Star Trackers
The Earth rotates. Your camera doesn't. That mismatch is the fundamental challenge of night-sky photography — any exposure longer than about 10–15 seconds at a wide-angle focal length will show star trails instead of points. A star tracker solves this by slowly rotating your camera at the same rate the sky moves, canceling out Earth's rotation and letting you take exposures measured in minutes rather than seconds. The result is deeper, cleaner images of the Milky Way, star fields, constellations, and wide-field deep-sky targets that would be invisible in a single short exposure.
The catch has always been weight and complexity. Traditional star trackers carry counterweights, need alignment tools, and weigh 3–4 pounds before you add a ball head, camera, and lens. That's manageable for a drive-to dark site, but less appealing when you're hiking to a mountain overlook, traveling internationally, or simply trying to keep your kit small enough that you'll actually bring it.
What the HST MiniTracker Is

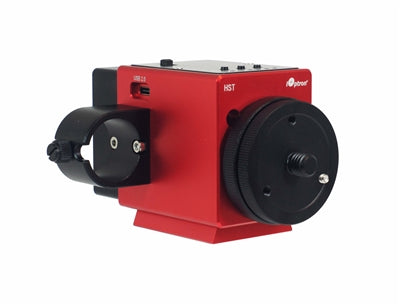

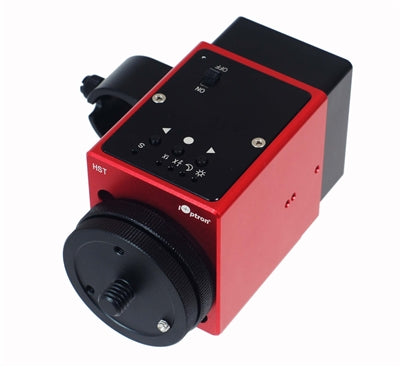

The iOptron HST MiniTracker is a strain wave gear star tracker that weighs 1.75 pounds and is small enough to fit comfortably in one hand. It carries up to 8.8 pounds of camera and lens — enough for a full-frame mirrorless body with a 200mm telephoto — without a counterweight. The strain wave gear drive is the same technology used in full-size imaging mounts that cost thousands more. In this application, it provides smooth, silent tracking with lower periodic error than conventional tracker gearing, which translates to tighter stars at longer focal lengths than conventional star tracker gearing can typically deliver.
There are four tracking rates: sidereal (for stars and deep-sky), lunar, solar, and a half-speed mode that tracks at half the sidereal rate so both sky and foreground remain acceptably sharp in a single exposure. The half-speed mode is designed specifically for wide-angle Milky Way compositions where you want tracked stars above a sharp landscape — at half rate, both sky and ground show acceptable sharpness in a single frame, reducing or eliminating the need to composite separate sky and foreground exposures in post-processing.
Strain Wave Gear in a Star Tracker
Most star trackers use worm gears or belt drives. They work, but they have inherent periodic error — a small cyclical inaccuracy that repeats with every rotation of the worm. In a star tracker, periodic error shows up as slight wobble in your tracked stars, limiting how long you can expose before stars elongate. You compensate by keeping exposures shorter or by stacking more frames.
The HST MiniTracker uses a strain wave gear (what iOptron calls SWG), which operates on a fundamentally different mechanical principle. A flexible spline meshes with a circular spline through a wave generator, producing high gear reduction in a compact package with very low backlash and very low periodic error. The practical benefit: the tracker holds its accuracy over longer individual exposures, and the motor runs essentially silent, with no noticeable ticking or vibration. At focal lengths up to about 200mm, this means you can push individual frames to 60–90 seconds with good polar alignment, shorter at longer focal lengths.
What It Carries
The 8.8-pound payload rating is honest for a tracker this size. In practical terms, that covers most astrophotography camera-and-lens combinations that people actually use with star trackers. A full-frame mirrorless camera body weighs about 1.5 pounds. A 50mm f/1.4 prime adds half a pound. A 135mm f/2 adds about 1.5 pounds. A 200mm f/2.8 telephoto adds roughly 2 pounds. With a ball head, you're well within the 8.8-pound limit for any of these setups. Even a 70–200mm f/2.8 zoom, which tends to run 3+ pounds, fits within the payload with a typical mirrorless body.
Where the payload becomes a real constraint is with heavy telephoto lenses — a 300mm f/2.8 or a large 70–200mm f/2.8 on a heavy DSLR body will push the limit. For those setups, a heavier star tracker with more payload capacity (like iOptron's own SkyGuider Pro at 11 pounds) or a full equatorial mount is the better tool. The MiniTracker is built for the 14mm-to-200mm focal length range that covers the vast majority of wide-field and medium-field astrophotography.
Power Options
The MiniTracker runs on a built-in 3000mAh lithium-polymer rechargeable battery that provides up to five hours of tracking. Charging is via USB-C. Five hours covers a solid imaging session for most situations, though it won't last an entire winter night. For longer sessions, you can plug in any USB power bank through the same USB-C port and run the tracker for what seems like forever — the same power bank you charge your phone with works fine.
An optional AAA battery holder (iOptron part P-3650-BH, sold separately) provides a backup power option when USB power isn't available. iOptron recommends lithium AAA cells for best performance in cold weather.
Setting Up
Setup is straightforward. Thread the MiniTracker onto a tripod using the 1/4"-20 or 3/8"-16 mount point (a thread adapter is included). Aim the tracker's rotation axis at the celestial pole using the built-in alignment sight — a simple peep sight that gets you close enough for wide-angle work. Attach a ball head and camera to the 50mm camera block on top (1/4"-20 stud, with 3/8"-16 adapter). Select your tracking rate, press the button, and start exposing.
For tighter polar alignment — which matters more as you increase focal length — iOptron offers two optional accessories that mount to the tracker's dedicated side bracket: the AccuAlign polar scope (#3330-HST) for optical alignment, or the iPolar (#3339) electronic polar scope for software-assisted alignment via a laptop or phone. Neither is included with the tracker, but if you plan to shoot regularly at 135mm or longer, one of them is a worthwhile addition. The built-in sight is sufficient for lenses up to about 85mm with exposures of 30–60 seconds.
The MiniTracker can also slide into iOptron's optional Alt-Az Adjustable Base (#3327) via its Vixen-style dovetail, which provides fine latitude and azimuth adjustments for more precise polar alignment. Without the base, you aim the whole tripod head.
What's Not Included
The tracker ships with the MiniTracker unit and a 1/4"-to-3/8" thread adapter. That's it. You will need to supply your own tripod, ball head, polar alignment tool (if desired), and USB charger or power bank. This is worth noting because competing trackers sometimes include a ball head or wedge in the box. The MiniTracker is priced as the tracker alone, and iOptron sells the rest of the system as separate accessories. Plan your purchase accordingly.
Features
-
Strain wave gear (SWG) drive. Low periodic error, near-zero backlash, silent operation. The same gear technology used in high-end imaging mounts, scaled down to a 1.75-pound star tracker.
-
1.75 pounds. Lighter than most camera lenses. The entire tracker fits in your hand and adds almost nothing to your travel kit. No counterweight needed — ever.
-
8.8-pound payload capacity. Carries any mirrorless or DSLR body with lenses up to 200mm f/2.8 class. Enough for the wide-field and medium-field astrophotography that star trackers are designed for.
-
Four tracking rates. Sidereal for stars and deep-sky. Lunar for the moon. Solar for the sun (with proper filter). Half-speed for Milky Way landscape composites where you want both tracked sky and sharp foreground in a single exposure.
-
Rechargeable internal battery. 3000mAh lithium-polymer, up to 5 hours. USB-C charging and pass-through power from any standard USB power bank for all-night sessions.
-
CNC machined metal housing. All-metal construction with no plastic structural components. Rigid, durable, and temperature-stable. Built to handle repeated field use and temperature swings from 14°F to 104°F.
-
No counterweight. The strain wave gear handles the load directly. No counterweight bar, no counterweight shaft, no extra hardware. The camera goes on top, the tripod goes underneath, and that's the entire setup.
-
50mm camera block. 1/4"-20 stud (3/8"-16 adapter included) on a 50mm-diameter platform. Accepts any standard ball head or directly mounts a camera with an Arca-Swiss plate.
-
Vixen dovetail mounting. Slides into iOptron's optional AZ bases for fine polar alignment adjustment. Also mounts directly to any tripod via the standard threaded post.
-
Polar alignment bracket. Built-in side bracket accepts optional AccuAlign polar scope (#3330-HST) or iPolar (#3339) electronic polar scope for accurate alignment at longer focal lengths.
-
Works in both hemispheres. Northern and Southern Hemisphere operation without hardware changes.
Practical Considerations
Five hours of battery life is adequate for most sessions but won't carry you through a long winter night unassisted. Bring a USB power bank if you plan to image past midnight from October through March. The tracker charges via USB-C, so you can top it off between sessions from the same charger you use for your phone.
The 8.8-pound payload is less than the 11-pound capacity of iOptron's SkyGuider Pro or Sky-Watcher's Star Adventurer. If your primary lens is a 300mm telephoto or a heavy zoom, the MiniTracker may not be the right tool. But for the 14mm-to-200mm range that accounts for the vast majority of star tracker work — Milky Way panoramas, constellation portraits, wide-field nebula targets — 8.8 pounds is more than enough, and you save nearly two pounds of weight on the tracker itself.
No polar scope is included. For wide-angle work (14mm to 50mm), the built-in sight is sufficient — you don't need arc-minute polar alignment accuracy for 30-second exposures at 35mm. But if you plan to push exposure times or shoot at 100mm and beyond, budget for the AccuAlign polar scope or iPolar. Accurate polar alignment is what separates 30-second subs from 90-second subs at longer focal lengths.
Who This Is For
Landscape astrophotographers who hike to their shooting locations. Travel photographers who want to capture the night sky without adding pounds to their luggage. Experienced imagers who already own a full mount setup but want something they can grab for a weeknight Milky Way session without the production of setting up an equatorial mount. Anyone who has looked at the weight and complexity of traditional star trackers and thought "I'd use one if it were simpler and lighter." The HST MiniTracker is the answer to that thought.
Frequently Asked Questions
How long can I expose with the MiniTracker?
It depends on focal length and polar alignment accuracy. With the built-in sight at 24mm, 60-second exposures with pinpoint stars are typical. At 50mm with the built-in sight, 30–45 seconds is more realistic. With a proper polar scope at 135mm, experienced users report 60–90 seconds with round stars. At 200mm, polar alignment becomes critical — expect 30–60 seconds with careful alignment. Stacking shorter subs is always an option and often produces better results than pushing single-frame exposure time.
Can this replace a full equatorial mount for astrophotography?
No. Star trackers are designed for camera lenses, not telescopes. The MiniTracker has no GoTo, no autoguiding port, and no computerized control. It's a one-axis tracker for wide-field and medium-field camera lens work. For telescope-based deep-sky imaging, you need a full equatorial mount. But for the work star trackers are designed to do — Milky Way, star fields, constellation portraits, wide-field nebula targets — the MiniTracker does it in a package that weighs less than most eyepieces.
How does this compare to the iOptron SkyGuider Pro?
The SkyGuider Pro carries 11 pounds (vs. 8.8), includes a counterweight system for heavier loads, and has a longer battery life. It weighs about 3.5 pounds — roughly double the MiniTracker. If you drive to your imaging site and want maximum payload flexibility, the SkyGuider Pro is the more versatile tool. If you prioritize weight, pack size, and simplicity above all else, the MiniTracker is the lighter, more compact option with the added benefit of strain wave gear precision.
Do I need the optional polar scope?
For wide-angle lenses (14mm to 50mm), the built-in alignment sight works. It gets you close enough that stars will be round at the exposure times typical for wide-angle work. For lenses 85mm and longer, a proper polar scope pays for itself in better tracking performance and longer usable exposures. If you plan to use the tracker primarily at focal lengths beyond 85mm, buy the AccuAlign polar scope (#3330-HST) or iPolar (#3339) with the tracker.
What tripod should I use?
Any sturdy photo tripod works. The MiniTracker weighs almost nothing, but your camera, lens, and ball head add up. A travel tripod that handles 10–15 pounds total is fine for most setups. Carbon fiber tripods are lighter for hiking. The key is stability, not payload — a wobbly tripod will show vibration in your images regardless of how well the tracker performs. iOptron also sells a stainless steel tripod (#3221) designed for their tracker line.
Can I image the Sun or Moon with this?
Yes. Solar and lunar tracking rates are built in. For solar work, you must use a proper solar filter on your lens — never point an unfiltered camera at the Sun. The lunar rate is useful for long-focal-length moon photography where the moon's apparent motion would cause blur during longer exposures.
Accessories
-
iOptron AccuAlign Polar Scope (#3330-HST). Dark-field illuminated polar scope with LED. Mounts to the MiniTracker's side bracket. Recommended for focal lengths above 85mm.
-
iOptron iPolar Electronic Polar Scope (#3339). Software-assisted polar alignment via laptop or phone. Faster and more accurate than optical alignment. Mounts to the same side bracket.
-
iOptron Alt-Az Adjustable Base (#3327). Fine latitude and azimuth adjustments for precise polar alignment. Accepts the MiniTracker's Vixen dovetail. Two latitude range options: 0–40° and 0–65°.
-
iOptron Ball Head (#3350A). 1/4"-20 connection with 3/8"-16 adapter. Mounts between the tracker and your camera for flexible framing.
-
AAA Battery Holder (P-3650-BH). Backup power option when USB isn't available. Accepts 3x AAA cells. iOptron recommends lithium AAA batteries for cold-weather reliability.
-
USB power bank. Any standard USB power bank with USB-C output extends runtime indefinitely. A 10,000mAh bank will run the tracker through multiple full nights.
Final Thoughts
The HST MiniTracker is iOptron's answer to a question that astrophotographers have been asking since star trackers first appeared: how light can you make one without compromising the tracking? At 1.75 pounds with strain wave gear precision, the answer is remarkably light. It won't replace your equatorial mount for telescope work, and its 8.8-pound payload means heavy telephoto setups are better served by a larger tracker. But for the wide-field and medium-field lens work that defines most star tracker photography — Milky Way arches, constellation portraits, tracked landscapes, star-field deep-sky targets — it does the job in a package you'll barely notice in your camera bag. The best tracker is the one you actually bring with you, and this one makes that easy.
