A smart telescope can find an object, focus the camera, and follow it across the sky without much help from its owner. But there's one thing it can't do for itself: find a steady place to stand. And when you want to use equatorial tracking for longer photographic exposures, that support also needs to hold the telescope at a carefully chosen angle.

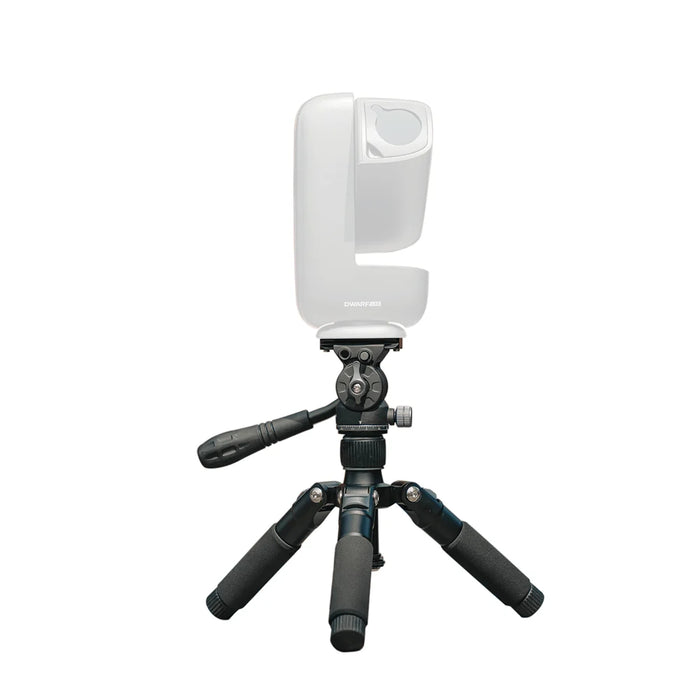

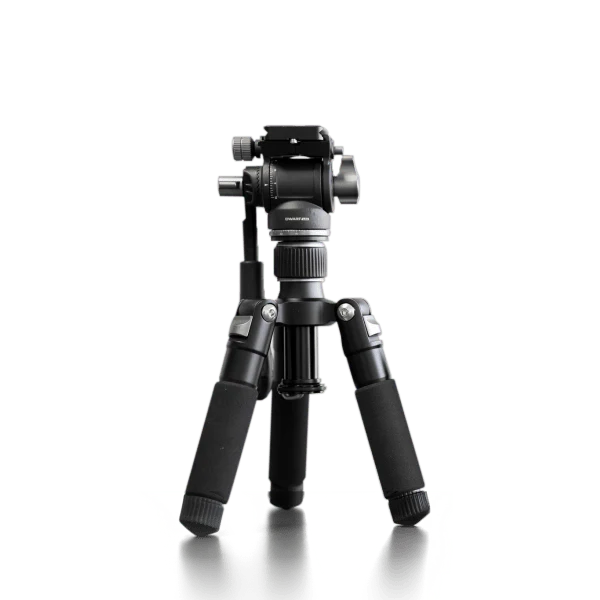

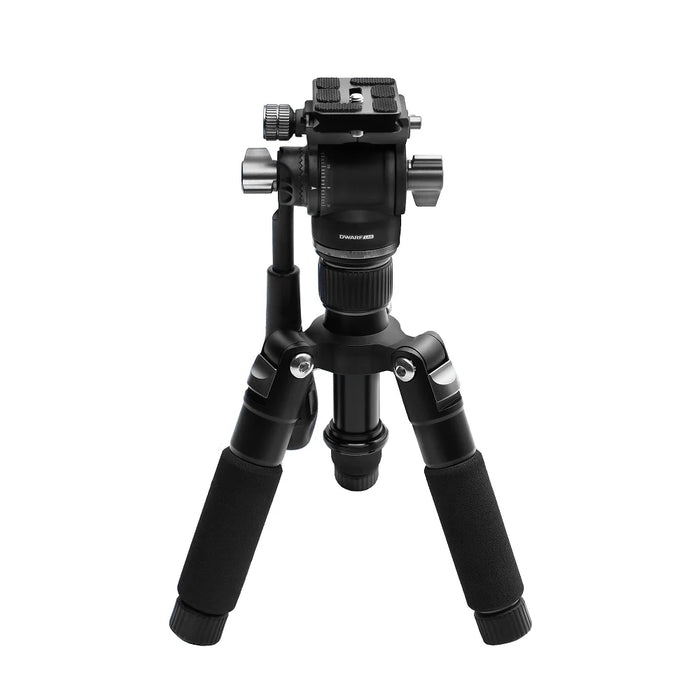

DWARFLAB's Mini Hydraulic Tripod was designed with those needs in mind. It's a compact aluminum tripod with a fluid-damped pan-and-tilt head, suitable for both the DWARF mini and DWARF 3 smart telescopes. It weighs approximately 1.7 pounds, folds to about 10" long, and extends to a maximum height of approximately 21". There's enough adjustment for ordinary alt-azimuth observing, equatorial alignment, and daytime photography, without requiring you to carry a full-size camera tripod.
What makes this little tripod particularly useful is its adjustable head. Instead of relying on a ball head that moves freely in several directions when loosened, the hydraulic head provides controlled panning and tilting. You can adjust the telescope's angle, secure it in position, and let the DWARF's own motors handle the tracking.
The Right Support for Equatorial Tracking
DWARF smart telescopes can track the sky in two different ways. In ordinary alt-azimuth mode, the telescope sits level and follows an object by moving horizontally and vertically. It's a convenient arrangement for casual observing, daytime photography, and shorter astronomical exposures.
There is, however, a complication. As the Earth rotates, the orientation of the star field gradually changes relative to an alt-azimuth telescope. Astronomers call this field rotation. During longer exposures, it can cause stars to trail, and over a large number of stacked photographs it can reduce the usable area around the edges of the finished image.
Equatorial mode reduces that problem by tilting the DWARF so its rotation axis can be aligned with the Earth's rotational axis. The axis must point toward the celestial pole at an elevation corresponding to your observing latitude. Once properly aligned, the telescope can follow the apparent rotation of the sky with much less field rotation.
The Mini Hydraulic Tripod makes that arrangement practical. Its head tilts through approximately 90° in one direction and 75° in the other, with a full 360° of horizontal rotation. The adjustment controls let you position the telescope for equatorial operation and secure the angle once the initial adjustment is complete.
DWARFLAB's app then guides you through the polar alignment procedure. The tripod provides the necessary mechanical adjustment, while the telescope's software helps determine how accurately the axis is aligned.
Good equatorial alignment doesn't guarantee that every long exposure will be perfect, but it gives the DWARF the physical orientation needed to take advantage of its longer-exposure imaging modes.
Smooth Adjustments Without the Juggling Act
Anyone who has tried to make a precise adjustment using a small, inexpensive ball head knows how frustrating it can be. Loosen the head, move the camera a fraction of an inch, and suddenly everything wants to shift in a different direction.
The Mini Hydraulic Tripod uses fluid damping to make movements smoother and easier to control. Instead of swinging freely with very little resistance, the head moves with a more deliberate feel, making it easier to approach the desired angle without overshooting it.
That is particularly useful when adjusting a DWARF for equatorial alignment. You're trying to establish a specific orientation, and a head that allows controlled movement makes the process more pleasant.
The same advantage applies during daytime photography. Whether you're positioning the telescope toward a distant bird, following activity across a landscape, or setting up a time-lapse sequence, the pan-and-tilt head gives you a more controlled way to compose the scene.
The hydraulic damping helps with manual positioning; it doesn't eliminate vibration from wind or an unstable surface. Once the head is locked, the steadiness of the tripod and the ground beneath it still matter.
Small Enough to Go Along
One of the attractions of the DWARF mini is that the telescope itself weighs less than two pounds. Carrying it everywhere wouldn't be nearly as appealing if it required a large, heavy tripod to use its more advanced features.
The Mini Hydraulic Tripod is built from aluminum alloy, with five-section legs that telescope inward for storage. Folded, it measures approximately 10" long, small enough to fit in a daypack alongside the telescope and other accessories.
Fully extended, it reaches approximately 21". That's quite low compared with a full-size photography tripod, but remember that a DWARF telescope doesn't have an eyepiece. You're watching the image on a phone or tablet, so there's no need to raise the telescope to eye level.
In fact, the relatively low working height can be an advantage. Shorter leg extensions and a lower center of gravity generally make a small tripod less susceptible to movement from a breeze or an accidental bump.
The legs also support multiple spread angles, allowing you to arrange a wider, lower stance when greater stability is desirable. For astronomical photography, a stable support is usually more valuable than having the telescope another foot or two above the ground.
DWARFLAB rates the tripod and head for equipment weighing up to 6.6 pounds. That's sufficient for either the DWARF mini or DWARF 3 when properly mounted, although the stability of a tilted telescope depends on the tripod's stance, the position of the load, and the surface beneath it.
Useful Beyond Astronomy
Although the Mini Hydraulic Tripod was developed for DWARFLAB's smart telescopes, it uses a standard 1/4"-20 camera mounting screw on a quick-release plate.
That means it can also support many compact cameras, small video cameras, and other photographic equipment within its rated capacity. The head's controlled panning is useful for composing photographs, and the adjustable legs allow low-angle shots that would be awkward with a taller tripod.
It's not intended to replace a substantial photography tripod carrying a large camera and telephoto lens. But for a small camera, a travel telescope, or the DWARF smart telescope you already own, it offers a useful combination of portability and adjustment.
Observing Tip: Stability Comes Before Height
When preparing a DWARF for equatorial imaging, begin with the tripod rather than the telescope.
Choose firm, stable ground and spread the legs sufficiently to support the telescope when it's tilted. Avoid soft surfaces where the feet can gradually settle during an exposure. Position the head so the tilted telescope's weight remains safely over the tripod's footprint rather than extending unnecessarily beyond it.
With the telescope attached and the head securely adjusted, follow DWARFLAB's instructions to orient the rotation axis toward the celestial pole and refine the alignment in the app. Check that the angle lock remains secure before starting a long exposure sequence.
Try not to extend the legs farther than necessary. If you use the tripod at its maximum height, DWARFLAB recommends adding approximately 4.4 to 6.6 pounds of ballast to the center hook to improve stability. Make sure any suspended weight is securely attached and cannot swing into the legs or telescope.
Once the telescope is aligned, avoid moving the tripod during the imaging session. Even a small shift in its position may require you to repeat the polar alignment procedure.
FAQ
- Does this tripod fit the DWARF mini and DWARF 3?
- Yes. DWARFLAB designed the Mini Hydraulic Tripod for its smart telescope series, including both the DWARF mini and DWARF 3. The quick-release plate uses a standard 1/4"-20 mounting screw.
- Do I need this tripod to use equatorial mode?
- You need a suitable support that allows the telescope to be tilted and securely held at the angle required for polar alignment. This tripod is specifically designed to make that practical with DWARF smart telescopes, although other appropriately configured supports may also work.
- How tall is the tripod?
- The maximum working height is approximately 21". Its compact size is intentional, since a DWARF displays images on your phone or tablet rather than requiring you to look through an eyepiece.
- How much weight can it support?
- DWARFLAB rates the tripod and head for a maximum load of 6.6 pounds. For the best stability, keep the legs as short as practical and ensure that the telescope's weight remains properly supported when the head is tilted.
- Can I use it with an ordinary camera?
- Yes. The standard camera mounting screw allows it to hold compatible compact photographic equipment within its weight capacity. The hydraulic head provides smooth panning and tilting for composing photographs and videos.
What's Included
- DWARFLAB Mini Hydraulic Tripod with five-section aluminum legs
- Hydraulic pan-and-tilt head with adjustment handle
- Quick-release mounting plate with 1/4"-20 camera screw
DWARF smart telescope and additional ballast are not included.
Final Thoughts
One of the pleasures of a DWARF smart telescope is that you don't need to turn an evening of astronomy into a major equipment project. The telescope is small, the electronics are built in, and a phone or tablet handles the controls. The support beneath it ought to be just as convenient.
That's what I like about the Mini Hydraulic Tripod. It folds into a small package, gives the telescope a stable place to stand, and provides the tilt adjustment needed to take advantage of equatorial tracking. You aren't carrying a large camera tripod simply to support a telescope that weighs only a few pounds.
If you already own a sturdy photographic tripod with an appropriate adjustable head, you may not need another one. But if you're putting together a portable DWARF system and want a tripod designed specifically for the job, this is a sensible accessory to have along.
