ZWO ASI992MM Pro USB 3.0 Cooled Mono SWIR Camera – Deep Infrared Imaging Precision

ZWO ASI992MM Pro USB 3.0 Cooled Mono SWIR Camera

Deep Infrared Sensitivity Meets Scientific Precision

ZWO’s ASI992MM Pro pushes the boundaries of what a dedicated astronomy camera can reveal. Built around Sony’s advanced IMX992 short-wave infrared (SWIR) sensor, this high-performance instrument combines exceptional sensitivity in the deep infrared spectrum with the mechanical reliability and integration finesse that define ZWO’s Pro line. Designed for professional research, advanced imaging, and specialized observation under difficult atmospheric conditions, the ASI992MM Pro delivers stable, low-noise data where conventional CMOS cameras fall short.

This camera’s true advantage lies in its ability to see beyond the visible—reaching wavelengths up to 1800 nm while maintaining a strong response in the visual range. That capability opens the door to imaging under thin cloud cover, fog, or even daylight conditions, revealing celestial and terrestrial details invisible to standard detectors.

Optical System & Sensor Performance

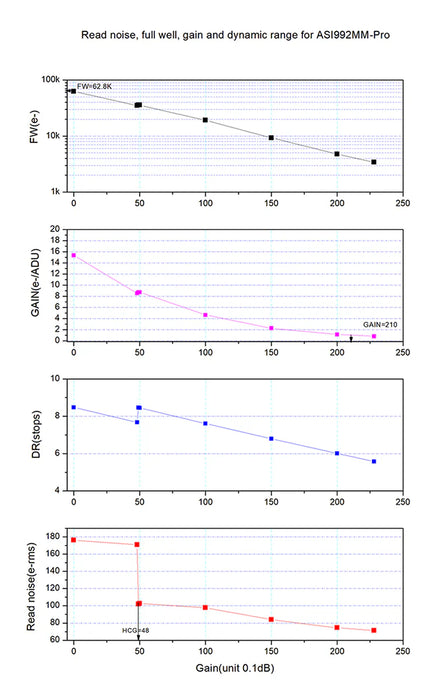

At the heart of the ASI992MM Pro is Sony’s IMX992 InGaAs sensor, an evolution of the earlier IMX990 architecture. The 5.3-megapixel array (2592 × 2056) uses 3.45 µm pixels with a full-well depth of 62.8 ke⁻, providing an excellent balance between resolution, sensitivity, and dynamic range. This combination results in crisp, high-contrast data even when pushing the limits of exposure and gain.

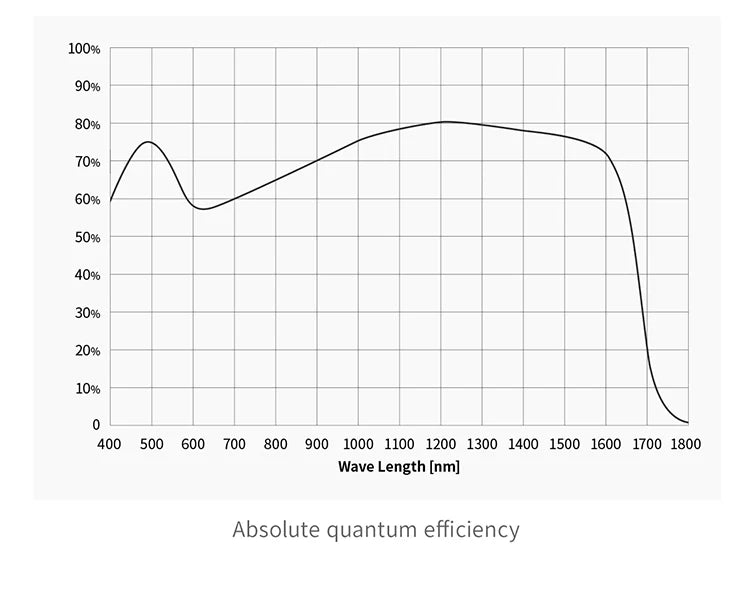

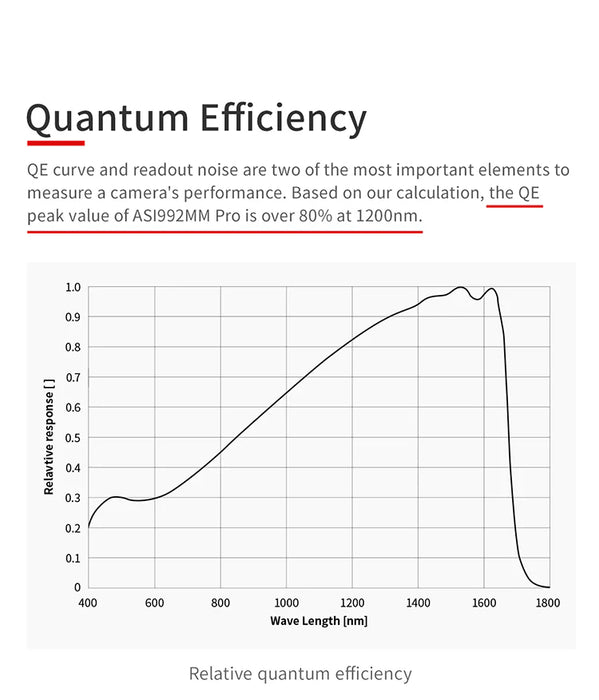

Where typical astronomical sensors struggle beyond 1000 nm—often dropping below 10% quantum efficiency—the ASI992MM Pro maintains its strength far into the infrared. Quantum efficiency peaks at an astonishing 80% around 1200 nm, and remains effective well past 1700 nm. This extraordinary reach enables the ASI992MM Pro to “see through” atmospheric moisture and haze, dramatically increasing imaging reliability in marginal or variable conditions.

Data output is handled in 12-bit depth, offering smooth tonal gradation and accurate contrast across faint and bright regions. With careful calibration, users can extract remarkable detail from both astronomical and industrial subjects that emit or reflect in the short-wave IR spectrum.

Cooling & Electronic Design

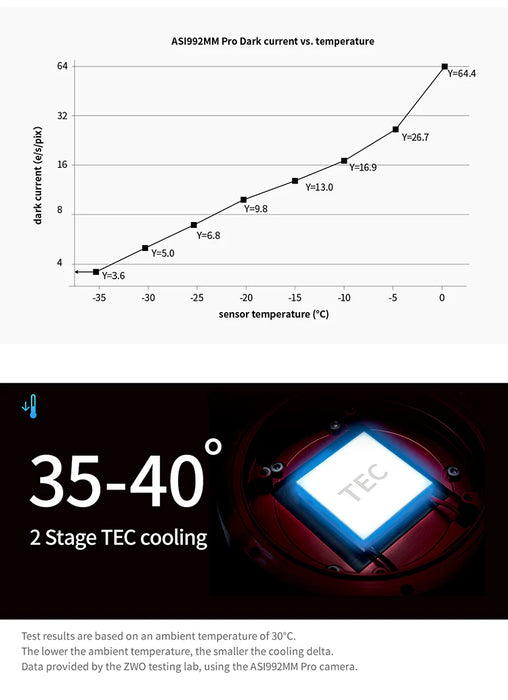

ZWO’s engineering refinements are evident throughout the ASI992MM Pro. Its dual-stage thermoelectric (TEC) cooling system maintains the sensor temperature 35° to 40°C below ambient, effectively minimizing thermal noise during long exposures. This precise cooling performance ensures repeatable calibration frames and low dark current levels, critical for quantitative imaging applications.

Equally important is ZWO’s Zero Amp Glow architecture, which eliminates the bright corner flare common in older sensor designs. Combined with a 256 MB DDR3 image buffer, the ASI992MM Pro provides clean, stable data transfer even during high-frame-rate or long-duration imaging sessions. The result is consistent, artifact-free data that can stand up to demanding scientific analysis.

Mechanical Construction & Integration

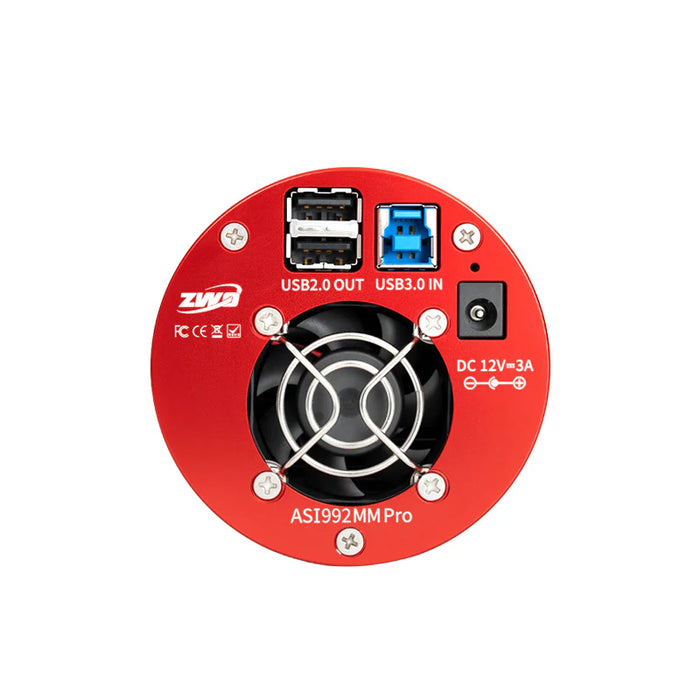

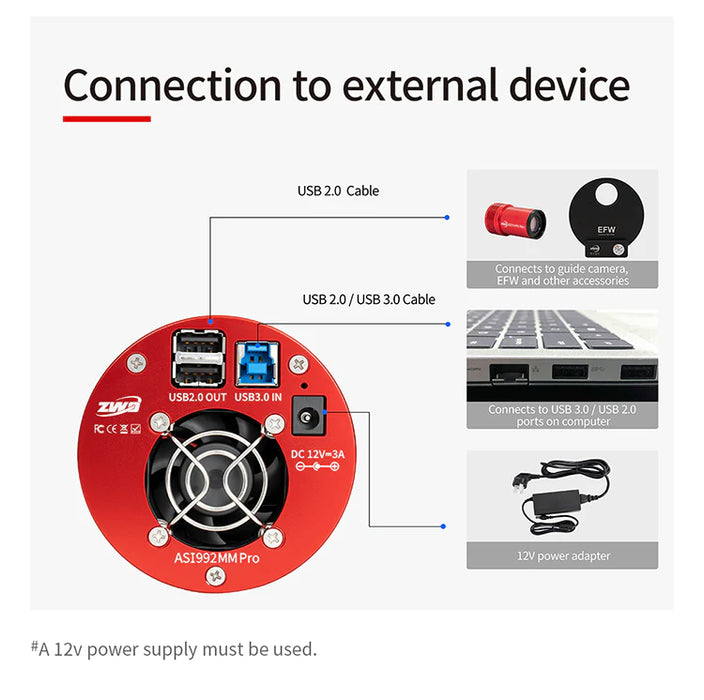

Precision machining and thermal management come together in a compact, robust housing designed for seamless integration into advanced imaging systems. The ASI992MM Pro uses a 5.5 × 2.1 mm 12V DC input for stable power delivery and a USB 3.0 Type-B interface for rapid, reliable data transfer. Two powered USB 2.0 Type-A ports are built into the rear panel, allowing users to connect and power filter wheels, focusers, or guiding cameras directly through the main camera body—simplifying cable management and system layout.

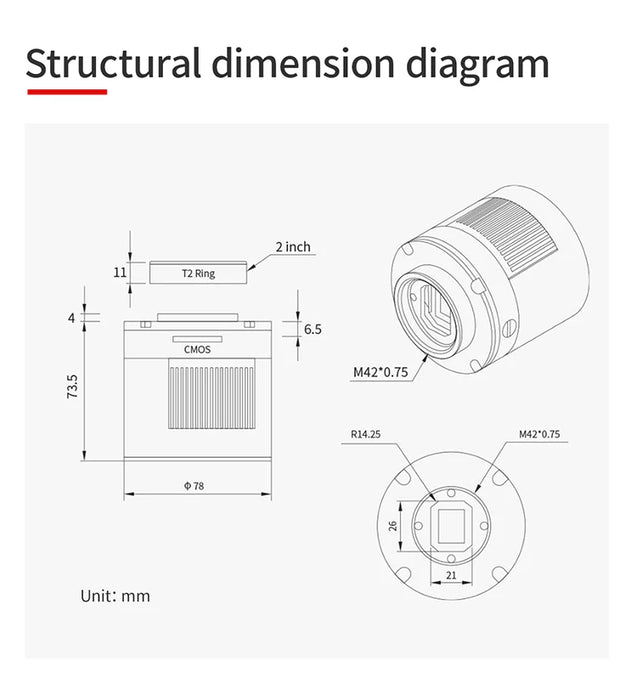

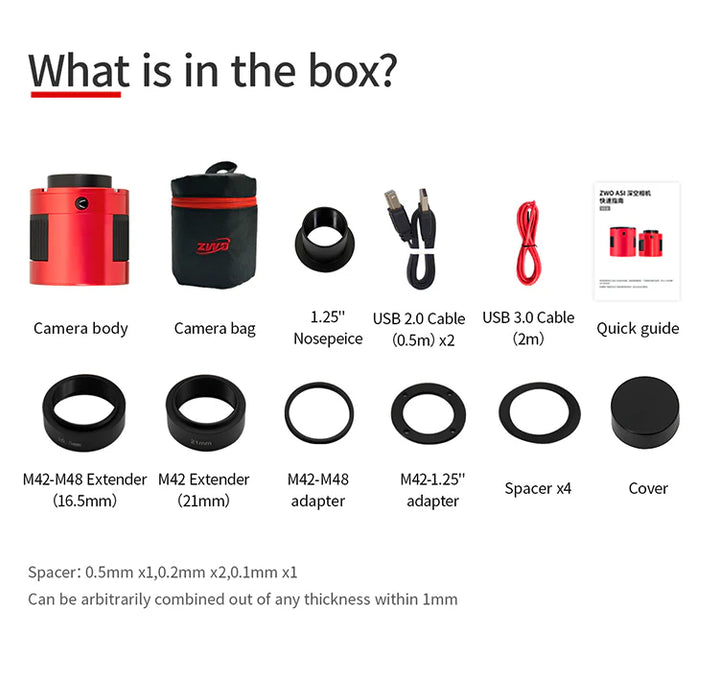

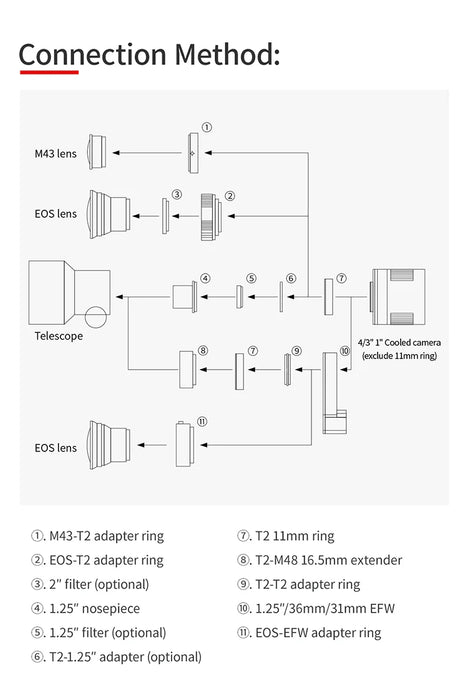

Backfocus configuration is equally well thought out. The camera body features a 6.5 mm native backfocus distance with an M42 male thread, and includes an 11 mm M42 spacer (pre-installed) to achieve the common 17.5 mm standard. Additional adapters and shims (including 16.5 mm and 21 mm spacers, as well as 0.1–0.5 mm shims) allow users to reach 55 mm of total backfocus for standard optical train configurations.

The included M42–M48 step-up ring ensures compatibility with a broad range of filter wheels and imaging accessories, making it simple to incorporate the ASI992MM Pro into existing systems without extensive modification.

Reliability in Demanding Environments

The ZWO ASI992MM Pro was engineered for professionals who require dependable data under less-than-ideal conditions. Its SWIR sensitivity means it can perform in fog, haze, or early daylight, capturing faint stellar signatures or subtle reflectance differences long after conventional imaging sensors have reached their limits. For industrial and scientific users, this same characteristic allows the ASI992MM Pro to detect material variations, thermal emissions, or surface characteristics invisible to visible-light systems.

Each component—from the sensor assembly to the cooling interface—has been optimized for longevity and stability, ensuring consistent performance across long imaging campaigns or continuous monitoring operations.

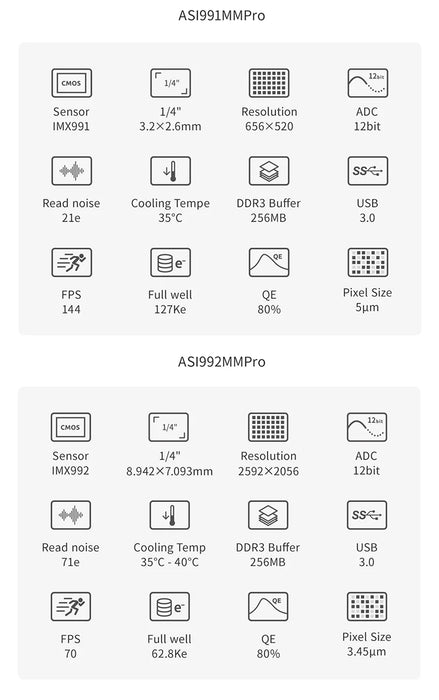

Features at a Glance

• Sony IMX992 InGaAs SWIR sensor with 5.3 MP (2592 × 2056) resolution

• Peak QE: 80% at 1200 nm, effective up to ~1800 nm

• 3.45 µm pixel size, 62.8 ke⁻ full-well capacity

• 12-bit output with low read noise (~7 e⁻ typical)

• Dual-stage TEC cooling to 35–40°C below ambient

• Zero Amp Glow circuitry and 256 MB DDR3 buffer

• USB 3.0 Type-B interface with two powered USB 2.0 ports

• M42 × 0.75 thread, native 6.5 mm backfocus

• Includes full spacer and shim kit for 55 mm optical train alignment

• Compact aluminum housing, 12V/3A power requirement

Final Thoughts

The ZWO ASI992MM Pro USB 3.0 Cooled Mono SWIR Camera represents a rare intersection of scientific-grade capability and field-ready reliability. Its exceptional infrared sensitivity, robust cooling, and thoughtful engineering make it one of the most versatile SWIR imaging systems available to research astronomers, institutions, and specialized imaging professionals.

In environments where conventional cameras fall short—through cloud, haze, or daylight interference—the ASI992MM Pro continues to deliver precise, noise-controlled data. Whether capturing atmospheric phenomena, testing optical materials, or expanding the frontiers of astronomical imaging, this camera stands as ZWO’s finest expression of precision in the infrared domain.
