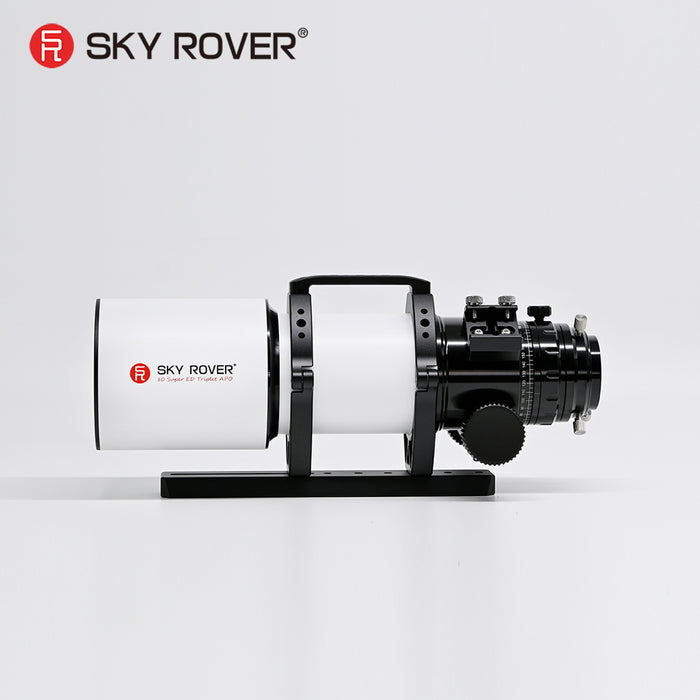

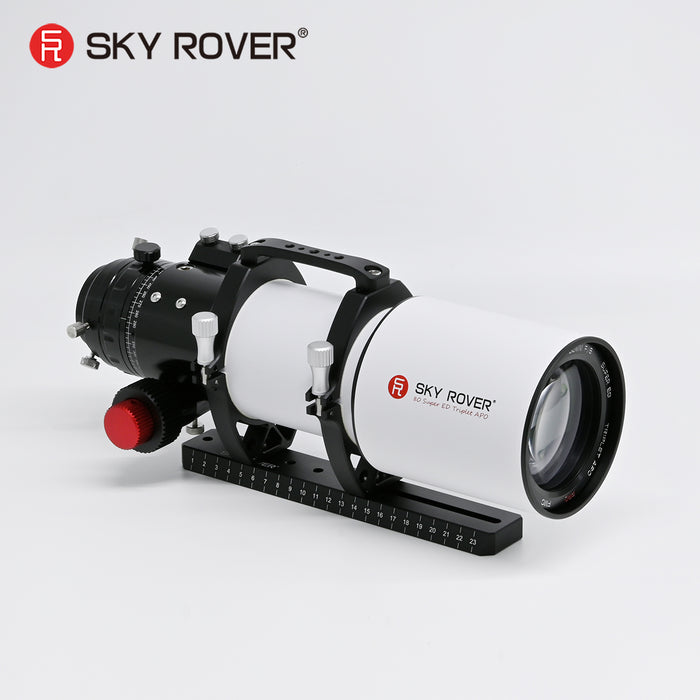

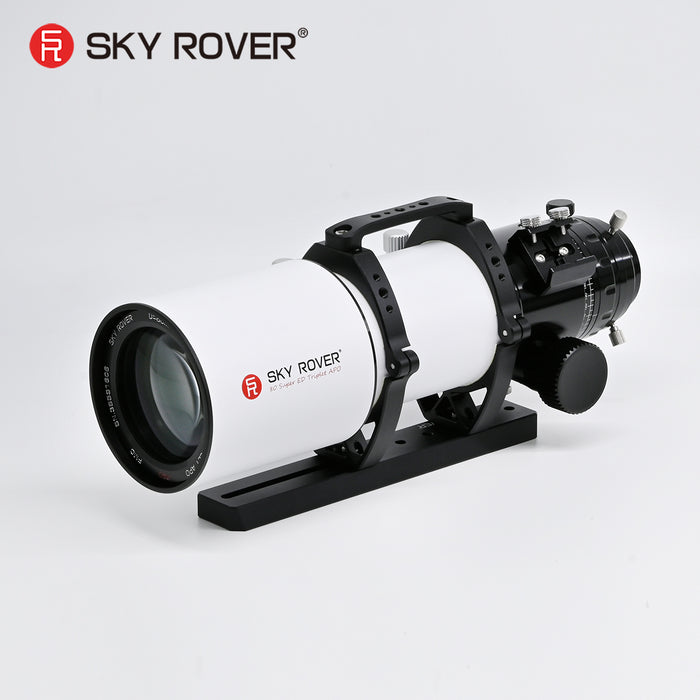

Sky Rover 80 GPS 80mm f/6 Super ED Triplet APO PRO Refractor OTA

Eighty millimeters is the aperture where a refractor stops being a novelty and starts being a real telescope. The Sky Rover 80 GPS takes that threshold seriously — an air-spaced Super ED triplet at f/6, with an integrated camera angle adjuster, a 2.5-inch dual-speed focuser, and the kind of build quality that announces GPS-series intent the moment you pick it up. At about 7.7 pounds ready to mount, it's still a one-hand carry. But the triplet optics, the precision CAA with M63×1 threading for a dedicated field flattener, and the 2024 redesign that added a hidden flange plate for focal-plane adjustment put this in a different league from the 80mm doublets you'll find at this price point. This is a scope that takes both visual observing and astrophotography seriously — and delivers at both.

The GPS designation is Sky Rover's premium tier.  Individual optical testing with artificial star tests and laser interferometry before the scope leaves the factory. A build standard that's designed for serious work. The 80 GPS shares these DNA markers with the rest of the GPS line, and the triplet optical design puts it firmly in apochromatic territory. Three elements with Super ED glass correct chromatic and spherical aberration to a degree that f/6 doublets cannot achieve — and the difference is visible at the eyepiece and measurable in imaging data. Stars are tight, round, and color-free. The lunar limb shows no purple fringe. Planetary detail is clean and high-contrast.

What sets this version of the 80 GPS apart is the attention to the imaging workflow. The integrated rear-mounted CAA provides smooth, deliberate rotation with laser-engraved angle markings, terminating in M63×1 threading that accepts the dedicated 1× field flattener directly. Thread on the flattener, connect your camera, and you have a flat-field triplet imaging system at 480mm f/6. The new hidden front flange plate — accessible by extending and removing the dew shield — allows precise adjustment of the focal plane using three sets of push-pull screws at 120° intervals. This is the kind of detail that matters when you're chasing perfect star shapes to the corners of a frame.

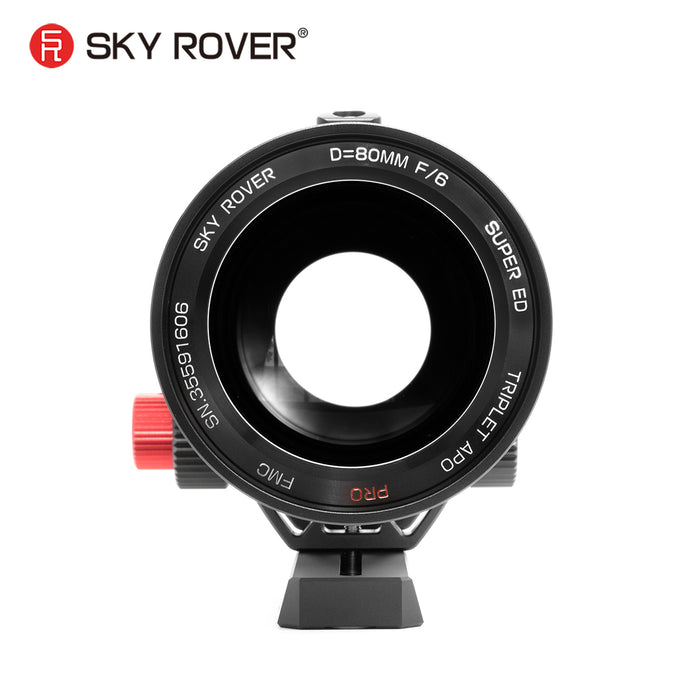

The Optical Design

The objective is an air-spaced triplet apochromat with a Super ED element — Sky Rover's designation for FCD-100 extra-low dispersion glass — and two conventional elements. Every air-to-glass surface carries full multi-coating for high transmission and contrast.

The triplet configuration at f/6 is the optical sweet spot that has made 80mm triplet APOs the most popular class of astrophotography refractor in the hobby. Three elements give the designer enough variables to control chromatic aberration, spherical aberration, and coma simultaneously — at a focal ratio where a doublet would show meaningful residual color on bright objects. The practical result is star images that are essentially perfect at the center of the field and remain well-corrected across a wide image circle. For visual observers, the difference shows up as razor-sharp planetary detail, clean double-star splits, and a complete absence of false color on the brightest targets.

The 2.5" Dual-Speed Focuser

The 80 GPS steps up to a 2.5-inch focuser — larger bore than the 70 GPS's 2-inch unit. The rack-and-pinion mechanism provides positive motion with no slip under load, and the dual-speed reduction delivers the fine control that critical focusing demands. The 2.5-inch bore passes light for larger-format camera sensors without vignetting, and provides plenty of room for 2-inch visual accessories. The 2024 redesign specifically removed the rotating focuser mechanism that earlier versions used — a change that astrophotographers will appreciate. The focuser tracks straight, locks solid, and stays where you set it.

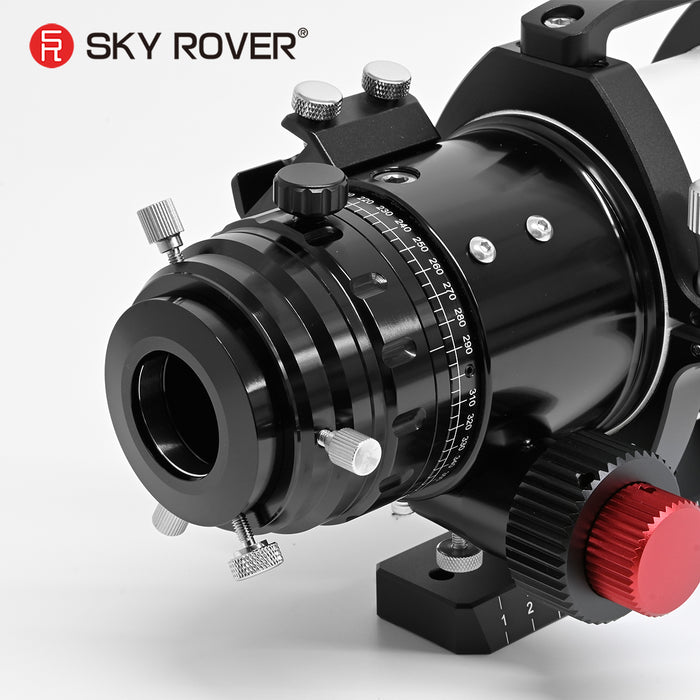

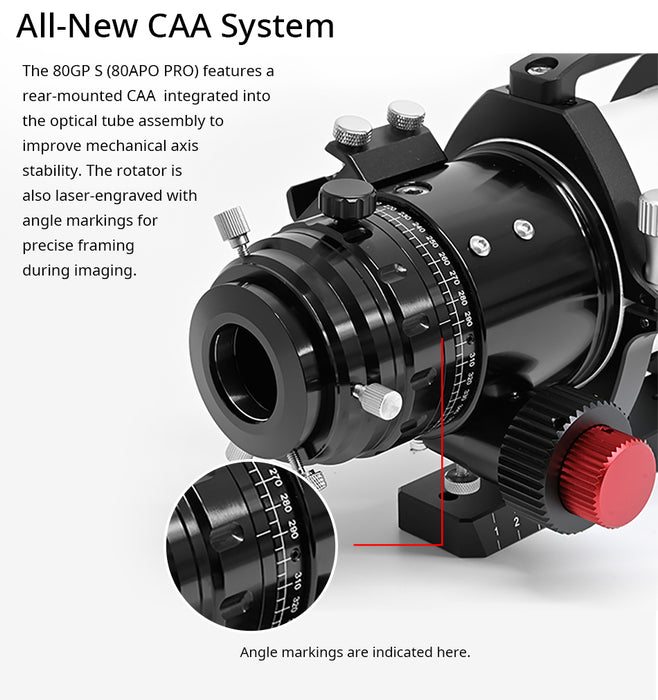

The Integrated CAA

The camera angle adjuster is built into the rear of the focuser tube assembly. It provides smooth, controlled rotation with laser-engraved angle markings for precise, repeatable framing. The M63×1 threaded output accepts Sky Rover's dedicated 1× field flattener directly — a mechanically rigid connection with no adapter rings, no play, and no tilt.

For imagers, this is the workflow simplifier: rotate to frame your target, lock the angle, thread on the flattener, connect the camera. Every component is purpose-built to work together, and the mechanical precision of the GPS series means the optical axis stays centered through the entire imaging train. The laser-engraved markings let you return to a previous framing angle by number — useful when you're building multi-night mosaics or returning to a project across sessions.

The Hidden Flange Plate

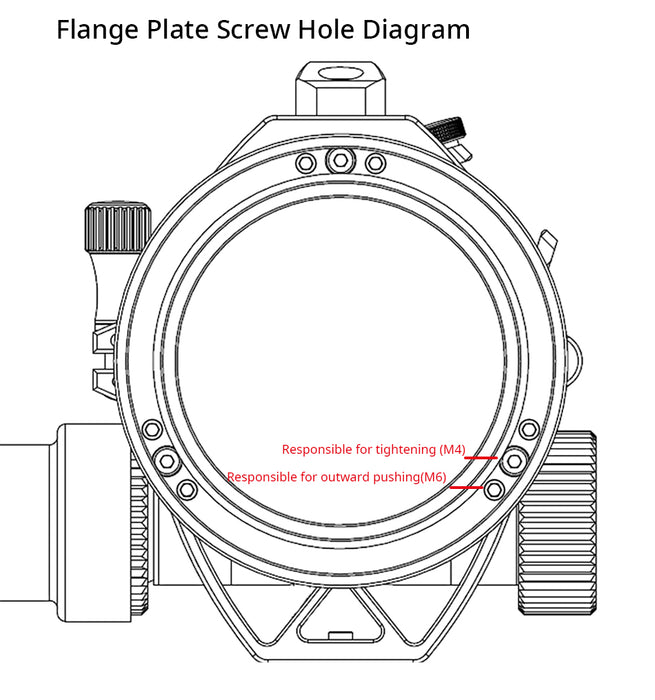

The 2024 version introduced a hidden front collimation flange plate at the objective end — a feature borrowed from high-end refractor designs. To access it, extend the dew shield fully and unscrew it counterclockwise. Behind it, three sets of screws spaced at 120° provide push-pull adjustment of the optical axis and focal plane. The M4 screws handle tightening, the M6 screws handle outward adjustment. This allows precise correction of tilt without changing the dew shield diameter or the external profile of the telescope. For deep-sky imagers chasing perfect star shapes across the full sensor, this level of adjustability is a genuine asset.

Built for the Field — 2024 Redesign

The 2024 80 GPS carries forward the proven air-spaced triplet optical design while upgrading everything around it. The new dual tube rings match the 70 GPS design — lightweight aluminum with M6 threaded holes for accessory mounting and refined handwheels for secure locking. The mini handle doubles as an accessory platform with M6, M4, 1/4-20, M4, and M6 threaded holes. The CNC narrow dovetail plate features weight-reduction cutouts and ruled centimeter markings for repeatable balance positioning — a small detail that matters when you're optimizing a mount setup for imaging.

Fully retracted, the tube measures about 370mm (14.6 inches). Extended, about 490mm (19.3 inches). The aluminum alloy construction uses internal multi-baffle light suppression to control stray reflections. The all-black anodized focuser and CAA assembly is a clean, premium-looking build. The scope ships in a portable soft carrying bag inside a cardboard box — genuinely portable for its capability.

What's Included

• Sky Rover 80 GPS 80mm f/6 OTA with retractable dew shield
• Integrated camera angle adjuster (CAA) with laser-engraved angle markings and M63×1 threading
• 2-inch to 1.25-inch adapter
• Dual tube rings with M6 threaded accessory holes
• CNC narrow dovetail plate (weight-reduction design with cm markings)
• Mini carrying handle (doubles as accessory mounting platform)
• Finder base
• Lens caps

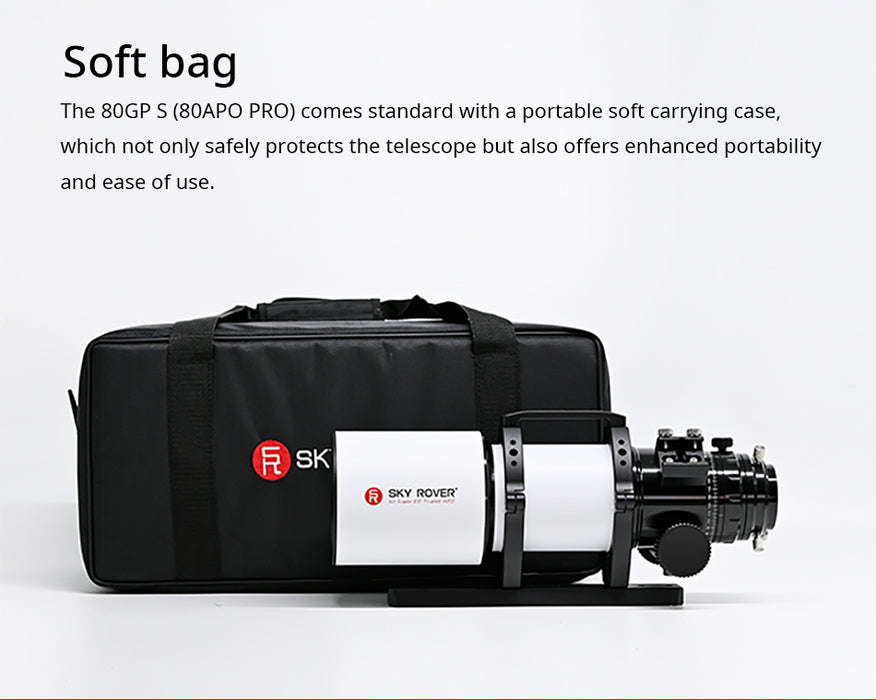

• Portable soft carrying bag

Features

• 80mm f/6 Super ED air-spaced triplet apochromat. Three-element design with FCD-100 ED glass, fully multi-coated on all surfaces. At f/6, the triplet delivers essentially zero false color — chromatic and spherical aberration are controlled to a level that f/6 doublets cannot match. Each unit is tested with artificial star testing and laser interferometry.
• Integrated CAA with M63×1 threading. Built into the focuser tube assembly, not bolted on. Smooth rotation with laser-engraved angle markings for precise, repeatable framing. The M63×1 thread accepts the dedicated 1× field flattener directly — a complete, rigid imaging connection with no adapter stack.
• 2.5" dual-speed rack-and-pinion focuser. Upgraded from the 70 GPS's 2-inch focuser. Larger bore for bigger sensors and 2-inch visual accessories. Positive motion, no slip, dual-speed fine control. The 2024 version removed the old rotating focuser mechanism — the focuser tracks straight and stays put.
• Hidden front flange plate for focal-plane adjustment. Three sets of push-pull screws at 120° intervals allow precise tilt correction. Access by removing the dew shield. This is the kind of adjustability that separates a serious imaging platform from a scope that hopes for the best.
• About 7.7 pounds ready to mount. Factory configuration weight — OTA with rings, handle, dovetail, CAA, and adapter — is approximately 7.7 pounds (3.5 kg). Light enough for small and mid-range equatorial mounts, star trackers, and even sturdy alt-az platforms. Still very much a portable telescope.
• 480mm f/6 focal length — the imager's workhorse. Fast enough for reasonable deep-sky exposure times. Wide enough for generous APS-C fields. Long enough for meaningful planetary magnification at the eyepiece. This is the focal length range where more astrophotography data has been captured than any other.

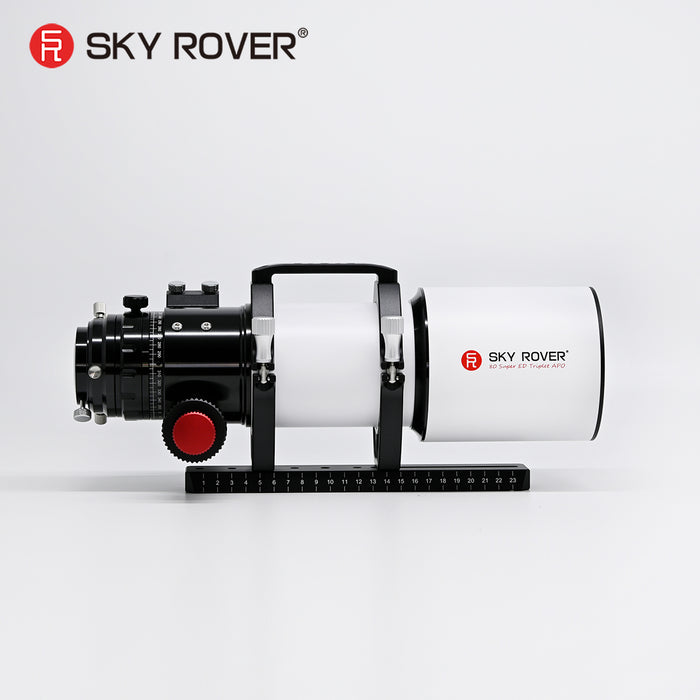

• Dovetail plate with ruled cm markings. Repeatable balance positioning for imaging sessions. A detail that saves time during setup and improves tracking accuracy. Weight-reduction cutouts keep the plate light.
• Dedicated 1× field flattener available. Sky Rover's matched flattener for the 80 GPS threads directly onto the CAA's M63×1 interface. Produces a flat field across APS-C and larger sensors — pinpoint stars to the corners. Sold separately.

Under the Night Sky

Eighty millimeters of triplet aperture is where a refractor starts pulling its weight on every category of object. The 80 GPS won't compete with a 150mm scope on raw light grasp, but the views it delivers — clean, contrasty, and pin-sharp — will satisfy observers who value quality over quantity in their photons.

On the Moon, 80mm at f/6 is a delight. A 7mm eyepiece delivers about 69× — enough to turn the terminator into a three-dimensional landscape of craters, peaks, and shadows. Push to a 5mm for 96×, and individual craterlets resolve in the floors of larger formations. The triplet optics keep the limb clean and color-free at any magnification the aperture supports.

Jupiter's equatorial belts show structure — festoons, barges, and the Great Red Spot are regular sights at 80–120×. Saturn's Cassini Division is a clean, dark line, and the globe shows subtle banding. Both planets benefit from the triplet's tight color correction: at the magnifications where planetary detail lives, any false color in the optics would degrade the view. The 80 GPS doesn't have that problem.

For deep-sky visual work, the 480mm focal length and f/6 speed make the 80 GPS an effective wide-field sweeper. A 24mm wide-field eyepiece delivers 20× with a generous true field — enough to frame the entire Pleiades cluster with room to spare, cruise through the Double Cluster in Perseus, or sweep the Sagittarius Milky Way on a summer evening. Under dark skies, the Andromeda Galaxy fills the field and shows hints of dust lane structure. The Orion Nebula shows color and cloud texture. Globular clusters like M13 appear granular, on the edge of resolution.

For astrophotography, the 80 GPS with the dedicated flattener is one of the most capable small imaging systems available. At 480mm f/6 on an APS-C sensor, you can frame the Orion Nebula with the Running Man, the North America and Pelican complex, the entire Veil Nebula, or a generous section of the Milky Way with hundreds of resolved stars. The triplet optics produce tight, round stars across the field, and the integrated CAA makes framing adjustments straightforward. Stack an hour of data from a dark site, and the results will surprise anyone who thinks 80mm is too small for serious imaging.

Observing Tip

Mount the scope, thread on the flattener, attach a cooled APS-C camera, and you have a complete deep-sky imaging system that fits in a camera backpack. Take it to a dark-sky preserve, polar align the tracker, and start capturing 60–120 second subs. The f/6 focal ratio keeps exposures manageable even without autoguiding. When you process the stacked data at home, you'll see what a good triplet at 480mm can resolve — and you'll start planning your next trip.

Frequently Asked Questions

How does the 80 GPS compare to the 80 GPA?
The 80 GPA is a doublet (two elements) at f/7; the 80 GPS is a triplet (three elements) at f/6. The triplet provides tighter chromatic correction — particularly important at f/6, where doublets show visible false color on bright objects. The GPS adds an integrated CAA with M63 threading for direct flattener attachment, a 2.5-inch focuser (vs. 2-inch on the GPA), a steel objective cell, a hidden flange plate for tilt adjustment, and individual optical testing. The GPS is the stronger choice for astrophotography and for visual observers who want the absolute best color correction. The GPA is excellent value for primarily visual use.

What mount do I need?
At about 7.7 pounds (3.5 kg) ready to mount, the 80 GPS works on a wide range of mounts. For visual use, any small-to-mid equatorial or alt-az mount rated for 15+ pounds is more than sufficient. For astrophotography, a small equatorial mount or star tracker rated for 10+ pounds of imaging payload handles the 80 GPS comfortably at 480mm. The Sky-Watcher Star Adventurer GTi, iOptron GEM28, and similar-class mounts are excellent matches.

Do I need the field flattener?
For deep-sky astrophotography on APS-C or larger sensors, yes — strongly recommended. The dedicated 1× flattener corrects field curvature at the edges and produces pinpoint stars across the full frame. Without it, stars in the corners of larger sensors will show some elongation. For visual observing, no flattener is needed. For planetary imaging with a small-chip high-speed camera, no flattener is needed.

What's the hidden flange plate for?
The flange plate allows precise adjustment of the optical axis — specifically, correcting any tilt that affects star shape uniformity across the sensor. To access it, extend and remove the dew shield. Three sets of push-pull screws at 120° intervals let you adjust the tilt of the objective in fine increments. Most users may never need to touch it — but for imagers chasing perfect stars to the corners, it's a genuine advantage over scopes that offer no adjustment at all.

Why a 2.5-inch focuser on an 80mm scope?
The larger 2.5-inch bore reduces vignetting with larger-format camera sensors and accommodates 2-inch visual accessories without restriction. It also provides a more rigid platform for heavier imaging setups. At 80mm aperture, a 2-inch focuser works fine for most applications — but the 2.5-inch unit means you'll never hit a vignetting limit as you upgrade cameras or add accessories.

Is this scope good for visual observing, or is it mainly for astrophotography?
Both. The triplet optics, clean color correction, and 80mm of unobstructed aperture make the 80 GPS a genuinely satisfying visual telescope — the Moon, planets, double stars, and deep-sky objects all benefit from the optical quality. The imaging features — CAA, flattener compatibility, flange plate — add capability without detracting from the visual experience. If you want one scope that does everything at 80mm, this is it.

Recommended Accessories

• Sky Rover 1× Field Flattener for 80 GPS (SR80GPSFF): Threads directly onto the CAA's M63×1 interface. Produces a flat field across APS-C and larger sensors. The essential companion for deep-sky imaging with this scope. Sold separately.
• Sky Rover 2" Diagonal (SR2D): A quality diagonal for comfortable visual observing. The 2-inch size matches the focuser bore and passes the full light cone to wide-field eyepieces.
• Sky Rover UWA 13mm Eyepiece: 82° apparent field at 37× — an ideal general-purpose magnification for deep-sky objects through the 80 GPS. Wide enough to frame large targets, detailed enough to show structure in smaller ones.
• Sky Rover XWA 5mm Eyepiece: 100° field at 96× — a planetary and lunar powerhouse. At 80mm aperture, this magnification extracts meaningful planetary detail on most nights.

Final Thoughts

The 80 GPS is built for the observer who wants a premium triplet APO that works as hard for imaging as it does at the eyepiece — without carrying the weight and mount demands of a larger instrument. The triplet optics at f/6 deliver color-free views and round stars across the field. The integrated CAA and M63 flattener threading make it a complete imaging platform. The hidden flange plate lets you chase perfection when the data demands it. And at under eight pounds, it still fits in a soft bag and rides comfortably on a small equatorial mount. This is the 80mm triplet that doesn't ask you to choose between visual and imaging — it does both, and it does both well.
