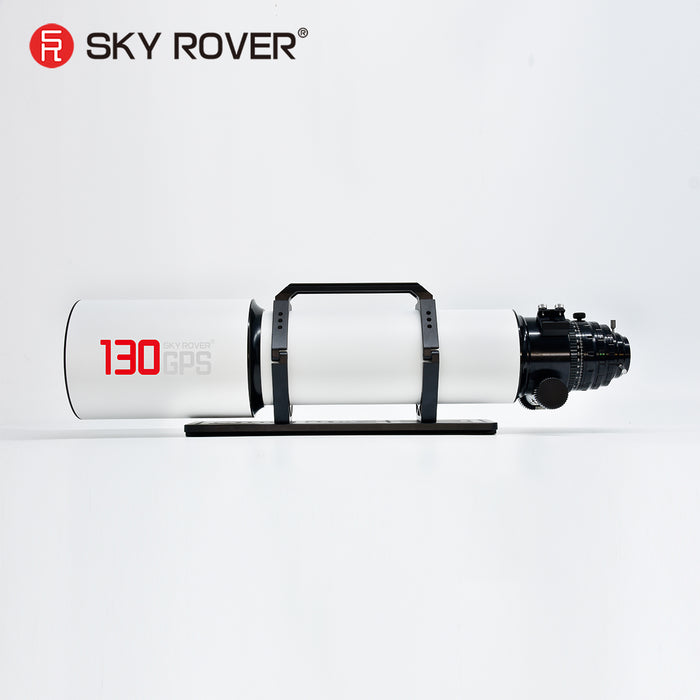

Sky Rover 130 GPS 130mm f/7 Super ED Triplet APO PRO Refractor OTA

A 130mm triplet apochromat is where a refractor becomes a serious instrument — the kind of telescope that astrophotographers build their imaging rigs around and visual observers plan their nights around. The Sky Rover 130 GPS delivers all of that: a 130mm f/7 air-spaced triplet with Super ED glass, a massive 3.7-inch dual-speed focuser, and an integrated camera angle adjuster with M82 output threading. It ships in an aluminum case. It accepts both a dedicated 1× field flattener and a 0.8× reducer that drops the system to 728mm at f/5.6. Every element of this telescope — from the forward-adjustable flange plate to the Losmandy-compatible wide dovetail — says the same thing: this scope was designed by people who image, for people who image. And then they made it an exceptional visual instrument too.

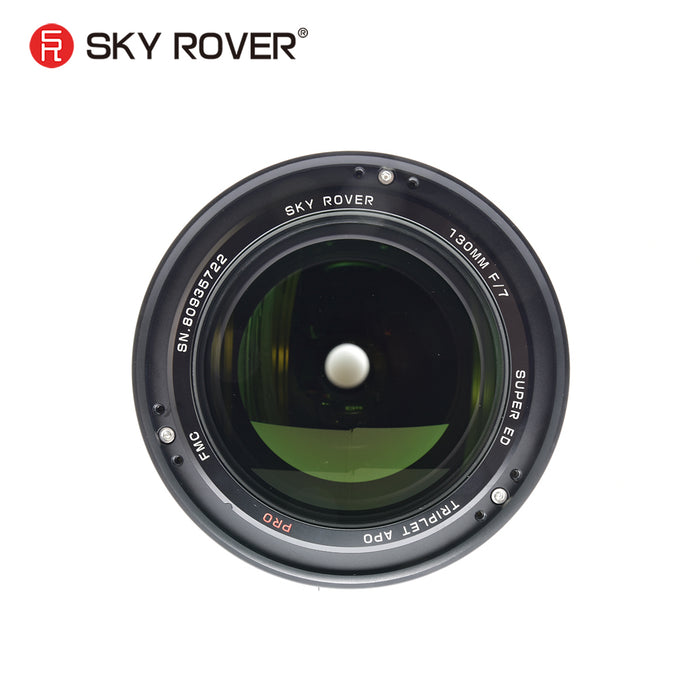

The GPS series  is Sky Rover's premium line. Every 130 GPS undergoes individual optical testing — artificial star tests and laser interferometry — before it ships. The lens cell is engraved with the specification and serial number. This is not mass-production-and-hope. This is a telescope that was verified before it left the factory.

At 130mm aperture and 910mm focal length, the f/7 ratio hits a productive balance. It's fast enough for deep-sky imaging without extreme exposure times. It's slow enough that the triplet formula can achieve excellent color correction without requiring heroic glass or exotic coatings. And 910mm of focal length means planetary and lunar magnifications that extract genuine detail — while deep-sky fields on an APS-C sensor are wide enough to frame most of the objects you'll want to capture. Add the 0.8× reducer, and the system drops to 728mm at f/5.6 — a faster, wider configuration for large nebulae and mosaic panels. Two focal lengths, one telescope.

The Optical Design

The objective is an air-spaced triplet apochromat with a Super ED element — Sky Rover's designation for FCD-100 extra-low dispersion glass — and two conventional elements housed in the cell. Every air-to-glass surface carries full multi-coating for high transmission and contrast.

The steel cell matters. At 130mm aperture, the objective lens has real mass, and the cell that holds it needs to maintain alignment under temperature changes, transport vibration, and the mechanical stresses of years of use. Steel provides the dimensional stability that aluminum cells struggle to maintain at this aperture class. The improved glass calibration and mounting methods that Sky Rover developed for the GPS series ensure that the optical elements are positioned with the precision the triplet formula requires — and stay there.

The triplet at f/7 produces chromatic correction that will satisfy the most critical visual observers and astrophotographers. False color on bright objects is essentially absent. Star images are tight, round, and well-corrected across a wide field. The six air-to-glass surfaces all carry full multi-coating, and while a triplet inherently has more surfaces than a doublet, the modern multi-coatings reduce reflections to the point where ghost images and scatter are negligible. What you get is 130mm of clean, contrasty aperture with the color correction to match.

The 3.7" Dual-Speed Focuser

The focuser is enormous — 3.7 inches of clear aperture, rack-and-pinion, dual-speed. This is not typical for a 130mm refractor, and it signals Sky Rover's intent. The oversized bore eliminates any vignetting concern with full-frame cameras and large-format imaging sensors. It provides a rigid platform for heavy camera setups — cooled CMOS cameras, filter wheels, off-axis guiders — without flexure or tilt. The rack-and-pinion mechanism delivers positive, repeatable motion with no slip under load, and the dual-speed reduction provides the fine control that critical focusing at 910mm demands.

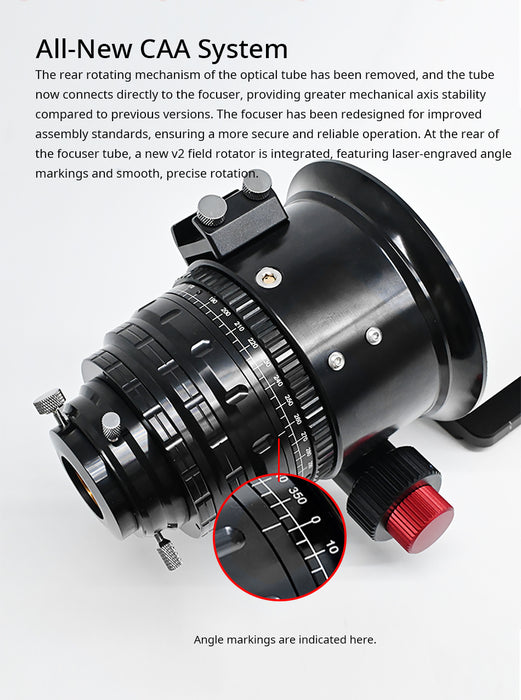

The current version removed the rear rotating mechanism that earlier models used, connecting the tube directly to the focuser for maximum mechanical axis stability. The focuser tracks straight, locks solid, and stays exactly where you set it.

The Integrated CAA

The camera angle adjuster is integrated into the rear of the focuser assembly. It threads into the focuser via an M92 thread and provides an M82 output thread for connecting flatteners, reducers, and camera adapters. The rotation is smooth and controlled, with laser-engraved angle markings for precise, repeatable framing.

The M82 output threading accepts both the dedicated 1× field flattener and the 0.8× reducer/flattener directly. This means the entire imaging train — scope, focuser, CAA, corrector, camera — is a single mechanical assembly with no adapter stacks, no play, and no tilt. At 910mm focal length (or 728mm with the reducer), any mechanical instability in the imaging train shows up in your data. The GPS eliminates that variable.

Forward-Shifted Flange Plate

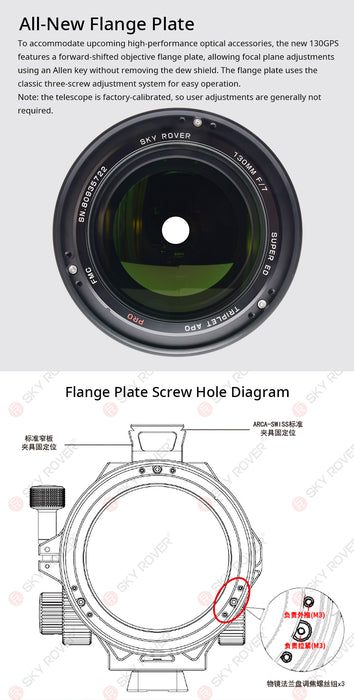

The 130 GPS features a forward-shifted objective flange plate that allows focal-plane adjustment without removing the dew shield. Three sets of push-pull screws (M3, Allen key) provide precise tilt correction. The system is factory-calibrated, and most users will never need to touch it — but for imagers chasing uniform star shapes across a full-frame sensor, the ability to fine-tune the optical axis is a meaningful advantage. No disassembly required. No special tools beyond an Allen key.

The Losmandy-Compatible Dovetail System

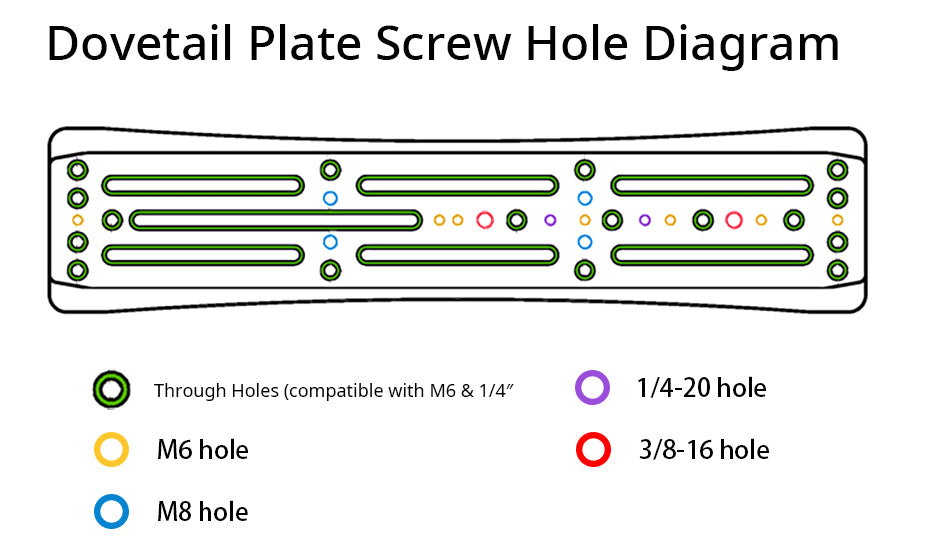

The 130 GPS ships with a wide Losmandy-compatible dovetail plate — 450mm long, curved to follow the tube profile, with numerous mounting holes and T-slots. The plate includes through-holes in M6, M8, 1/4-20, and 3/8-16 — a versatile array that accommodates virtually any accessory mounting configuration. The dual tube rings feature multiple side-mounted holes for guidescopes, cameras, and accessories, plus mounting holes for a counterweight bar if balance requires it.

The patented handle is compatible with both Vixen and Arca-style quick-release systems — a thoughtful detail for observers and imagers who work with different mounting platforms. The entire system — wide dovetail, heavy-duty rings, and universal handle — is designed for a telescope that will carry a full imaging rig and needs to do it without compromise.

Build and Field Use

The OTA weighs approximately 24.2 pounds (11 kg). Add the tube rings, dovetail plate, and adapter at about 5.1 pounds (2.3 kg), and the total system weight is roughly 29.3 pounds (13.3 kg). This is a substantial instrument that requires a mount to match. Plan on a German equatorial rated for 45+ pounds for visual use, or 55–60+ pounds for astrophotography. The iOptron CEM70, Losmandy G-11, Sky-Watcher EQ6-R Pro, and similar-class mounts are appropriate partners.

Fully retracted, the tube measures approximately 800mm (~31.5 inches). The aluminum alloy construction uses internal multi-baffle light suppression, and the retractable dew shield extends for protection on dew-prone nights. The telescope ships in an aluminum carrying case inside a cardboard box — genuine protection for a precision optical instrument.

What's Included

• Sky Rover 130 GPS 130mm f/7 OTA with retractable dew shield
• Integrated camera angle adjuster (CAA) with laser-engraved angle markings and M82 output threading
• 2-inch interface + 2-inch to 1.25-inch adapter
• Dual tube rings with side-mounted accessory holes and counterweight bar mounting
• Losmandy-compatible wide dovetail plate (450mm, curved, with T-slots)
• Patented handle (Vixen and Arca-compatible)
• Finder base
• Aluminum carrying case

Features

• 130mm f/7 Super ED air-spaced triplet apochromat. Three-element design with FCD-100 ED glass, fully multi-coated. Chromatic aberration is essentially absent — no false color on the brightest stars, the lunar limb, or Jupiter's cloud bands. Each unit tested with artificial star testing and laser interferometry. The triplet at f/7 delivers the color correction and field correction that serious imaging demands.
• Steel objective cell with improved calibration. The GPS-series steel cell provides the dimensional stability and long-term alignment that 130mm of triplet optics require. Improved glass calibration and mounting methods ensure the elements are precisely positioned — and stay there through temperature changes and transport.
• 3.7" dual-speed rack-and-pinion focuser. Oversized bore eliminates vignetting with full-frame sensors. Rigid enough for heavy imaging rigs with no flexure. Positive motion, no slip under load, dual-speed fine control. Rear rotating mechanism removed in the current version for maximum mechanical stability.
• Integrated CAA with M82 output threading. Built into the focuser assembly, M92 input, M82 output. Smooth rotation with laser-engraved angle markings. Accepts both the 1× field flattener and the 0.8× reducer directly — no adapter stack, no play, no tilt.
• Forward-shifted flange plate. Adjustable with Allen key without removing the dew shield. Three sets of M3 push-pull screws at 120° for precise tilt correction. Factory-calibrated. The imager's safety net for uniform stars across the full sensor.
• Losmandy-compatible 450mm wide dovetail plate. Curved design with T-slots and multiple mounting holes (M6, M8, 1/4-20, 3/8-16). The mounting system for a scope that carries a full imaging rig. Patented handle compatible with both Vixen and Arca-style quick-release systems.
• Dual focal lengths with the 0.8× reducer. Native: 910mm at f/7 — ideal for planetary, lunar, and targeted deep-sky fields. With the dedicated 0.8× reducer: 728mm at f/5.6 — faster and wider for large nebulae, galaxy groups, and mosaic work. Two configurations, one telescope. Both reducer and 1× flattener sold separately.
• Aluminum carrying case included. A 130mm triplet APO is a precision instrument — and it ships in a case that reflects that. Genuine protection for transport and storage, not a cardboard box you'll throw away.
• 130mm of unobstructed triplet aperture. Over five inches of light-gathering area with no central obstruction. Resolves to approximately 0.89 arcseconds (Dawes). Collects over 2.5× the light of an 80mm and nearly twice the light of a 102mm. At the eyepiece, the views from a clean 130mm triplet are in a class that most amateur astronomers have never experienced.

Under the Night Sky

A 130mm triplet APO is one of the finest visual instruments an amateur astronomer can own. The aperture is large enough to reveal genuine detail in every category of object, and the clean triplet optics deliver that detail with a contrast and color fidelity that reflectors and doublets can't match at this aperture. Every session with the 130 GPS will remind you what a refractor does differently.

On Jupiter, the equatorial belts subdivide into multiple zones with festoons, barges, ovals, and the turbulent wake behind the Great Red Spot visible on nights of good seeing. The GRS itself shows internal structure and color gradation. The Galilean moons show disks. Transiting moon shadows are crisp and black. At 130–200×, Jupiter becomes a weather system you can study in real time — and the triplet's color correction means the detail is clean and undistorted.

Saturn through 130mm of triplet aperture is quietly spectacular. The Cassini Division is a clean dark line at moderate magnification. The globe shows multiple belt zones. The shadow of the rings on the planet takes on three-dimensional depth that smaller scopes hint at but can't quite deliver. Saturn's moons beyond Titan — Rhea, Dione, Tethys — are accessible at moderate magnification.

The Moon at 130mm is a landscape. The terminator becomes a terrain of shadow and light with genuine depth — peaks casting long shadows, craterlets peppering crater floors, rilles winding across the maria. At 150–200×, the central peaks of major craters show ridgelines and texture. The triplet optics keep the limb razor-sharp with no chromatic fringe. You'll spend more time on the Moon than you expected.

For double stars, the 130mm aperture resolves pairs to approximately 0.89 arcseconds. The clean, unobstructed aperture produces textbook Airy patterns that make close doubles snap apart cleanly. Subtle color differences between components become vivid and beautiful.

Deep-sky work with 130mm of triplet aperture and 910mm of focal length is rewarding at the eyepiece and extraordinary with a camera. Visually, globular clusters resolve into individual stars nearly to the core. M13, M5, and M3 all show genuine stellar resolution. Planetary nebulae reveal color and edge definition. The Orion Nebula shows cloud texture and color. Under dark skies, spiral arms in M51 show structure, and M81 reveals its bright core with hints of the spiral arms extending outward.

For astrophotography, the 130 GPS with the dedicated flattener at 910mm f/7 produces images with pinpoint stars across APS-C and larger sensors. With the 0.8× reducer at 728mm f/5.6, the system opens up for larger targets — the North America Nebula, the Heart and Soul complex, wide galaxy groups. The triplet optics produce the tight, round stars and clean color data that make processing a pleasure rather than a fight against optical artifacts.

Observing Tip

At 130mm aperture, cool-down time is real — plan on 30–60 minutes for the triplet to reach thermal equilibrium, depending on the temperature differential between storage and observing conditions. The steel cell helps with stability, but glass is glass. Use that time productively: polar align your mount, frame your first target at low power while the optics settle, or observe easy targets that don't demand critical seeing. When the optics are equilibrated, switch to the high-power eyepiece and you'll know — the diffraction pattern will snap into clean, concentric rings with no thermal currents flowing across the image. That's when the 130 GPS is ready to show you what it can really do.

Frequently Asked Questions

How does the 130 GPS compare to the 125 GPA?
The 125 GPA is a doublet (two elements) at f/7.8; the 130 GPS is a triplet (three elements) at f/7. The triplet provides tighter chromatic correction, a flatter native field, and better correction across the image circle — advantages that matter significantly for astrophotography and are visible at the eyepiece as well. The GPS adds a  3.7-inch focuser (vs. 2.5-inch), an integrated CAA with M82 threading, a Losmandy dovetail system, and compatibility with both a 1× flattener and a 0.8× reducer. The GPS also gives you 5mm more aperture. The GPA is lighter and more affordable; the GPS is the instrument for serious imaging and the best possible visual performance.

What mount do I need?
The total system weight is approximately 29.3 pounds (13.3 kg). For visual use, a mount rated for 45+ pounds is appropriate. For astrophotography at 910mm — where tracking precision is critical — plan on a mount rated for 55–60+ pounds of imaging payload. The iOptron CEM70, Losmandy G-11, Sky-Watcher EQ6-R Pro, and Celestron CGX-L are good matches. The Losmandy-compatible dovetail plate connects directly to these mounts without adapter plates.

Do I need the flattener, the reducer, or both?
For visual use only, you don't need either. For astrophotography: the 1× field flattener corrects field curvature at 910mm f/7 for flat, pinpoint stars across APS-C and larger sensors — this is the essential accessory for deep-sky imaging. The 0.8× reducer/flattener gives you a second configuration at 728mm f/5.6 — faster, wider, and excellent for large targets and mosaic work. Many imagers own both and switch based on the target. If you're starting with one, begin with the 1× flattener.

Can this scope handle a full-frame camera?
Yes. The 3.7-inch focuser bore is large enough to pass light for full-frame sensors without vignetting. With the dedicated 1× flattener or 0.8× reducer, the corrected field should cover full-frame formats — though corner performance at the extreme edges of a full-frame sensor depends on the specific corrector. For APS-C and smaller formats, the field is excellent to the corners.

Recommended Accessories

• Sky Rover 1× Field Flattener for 130 GPS (SR130GPSFF): Threads directly onto the CAA's M82 interface. Produces a flat field at the native 910mm f/7 — the essential accessory for deep-sky astrophotography. Sold separately.
• Sky Rover 0.8× Reducer/Flattener for 130 GPS (SR130GPSRFF): Drops the system to 728mm f/5.6. Faster, wider fields for large nebulae and mosaic panels. A second imaging personality for the same scope. Sold separately.
• Sky Rover 2" Diagonal (SR2D): Essential for visual observing. The 2-inch diagonal pairs with the 3.7-inch focuser to deliver the full light cone to wide-field eyepieces.
• Sky Rover XWA 9mm Eyepiece: 100° apparent field at 101× — an immersive planetary and deep-sky view. At 130mm aperture, this magnification shows genuine detail on most nights.
• Sky Rover XWA 20mm Eyepiece: 100° field at 45.5× — a walk-through-space view of star clusters, nebulae, and the Milky Way. At 130mm aperture, the low-power view through a 100° eyepiece is remarkable.

Final Thoughts

The 130 GPS is the telescope you buy when you've decided to stop compromising. The triplet optics at f/7 deliver color correction that is simply absent from the view — no false color, no artifacts, just clean aperture doing its job. The 3.7-inch focuser holds your heaviest imaging rig without complaint. The integrated CAA and M82 threading accept both a 1× flattener and a 0.8× reducer for two complete imaging configurations. The steel cell keeps the optics aligned. The Losmandy dovetail mounts to serious equipment. And at the eyepiece, 130mm of unobstructed triplet aperture shows you detail on the planets, the Moon, and the deep sky that makes everything you've looked through before feel like it was holding something back. This is a scope for people who are done upgrading and ready to observe.
