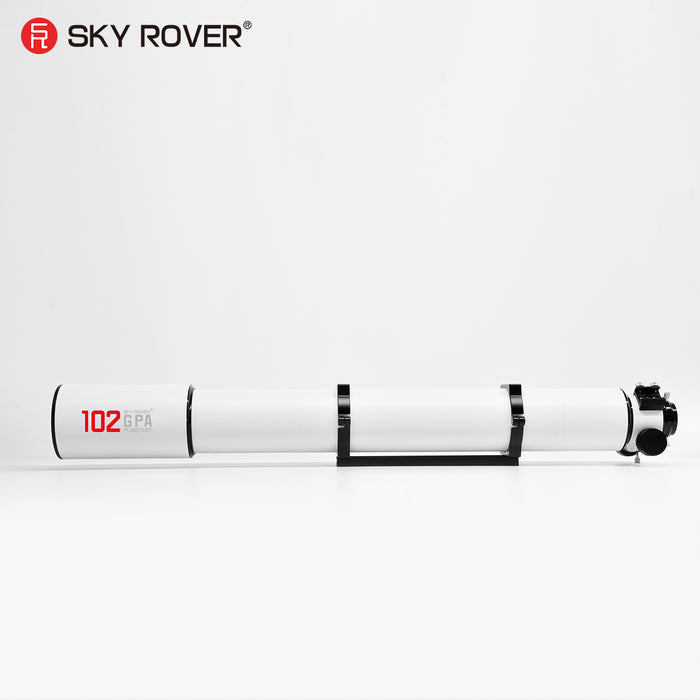

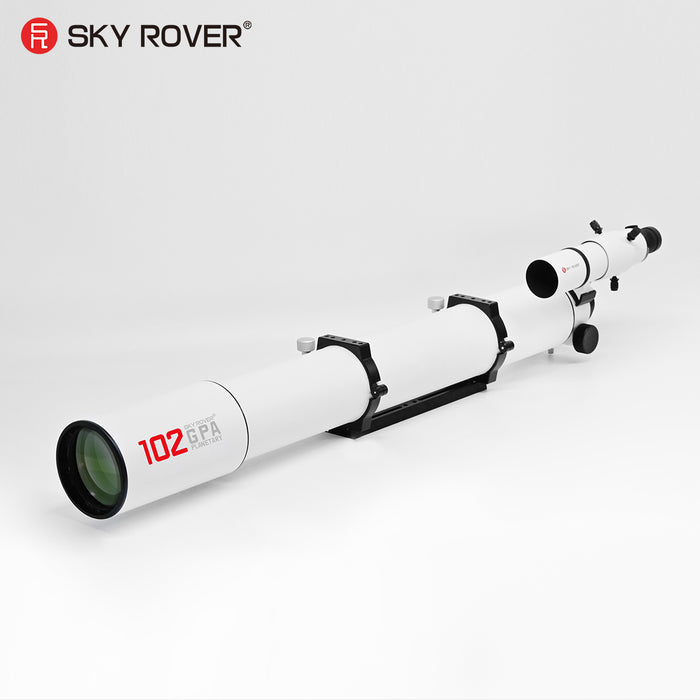

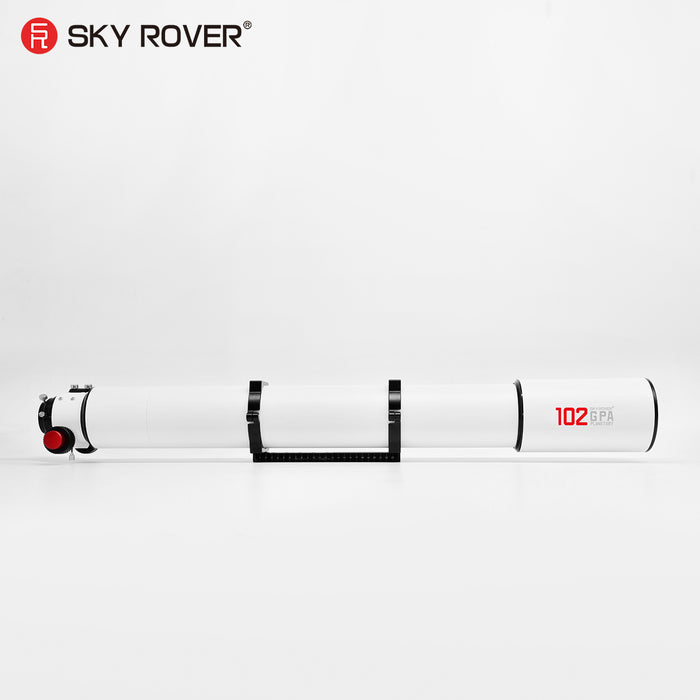

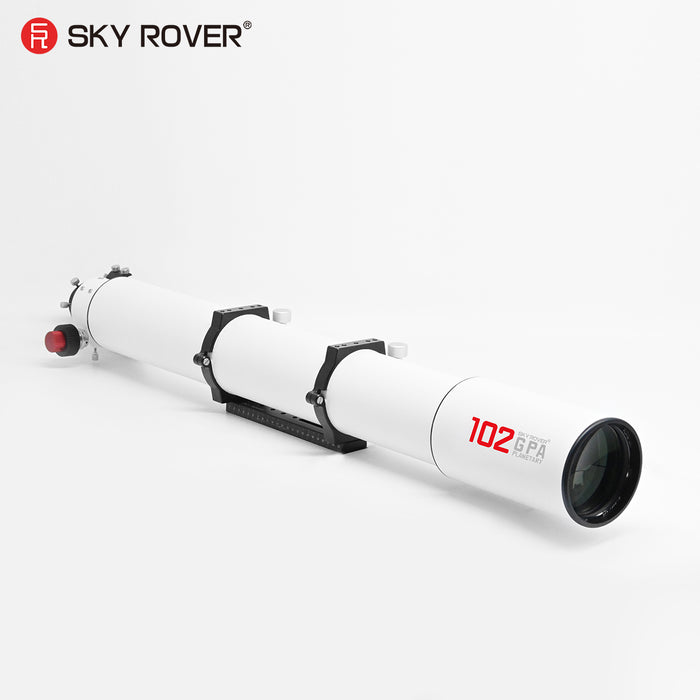

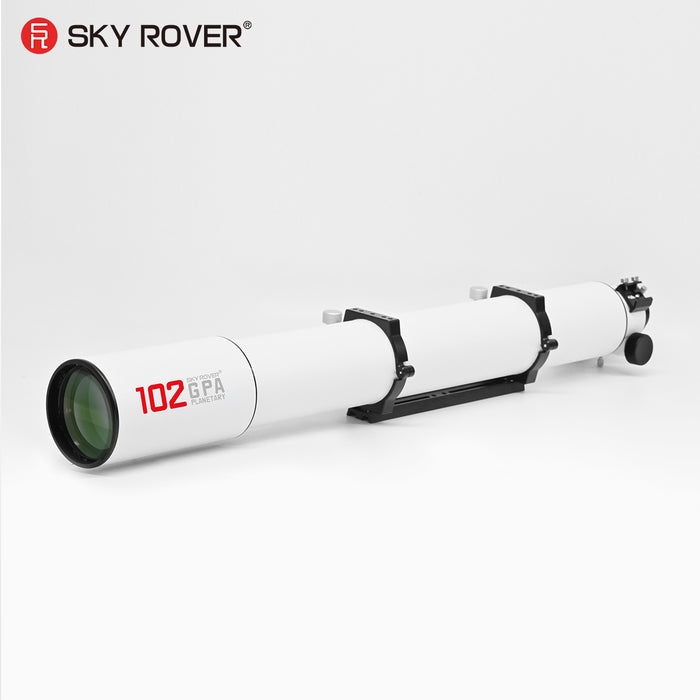

Sky Rover 102 GPA Planetary 102mm f/11 Super ED Doublet APO Refractor

There was a time when a four-inch f/11 refractor was the gold standard for planetary observation — the instrument that experienced observers reached for when the seeing was steady and Jupiter was high. The long focal ratio kept chromatic aberration virtually invisible, the unobstructed aperture produced clean Airy disks, and the high native magnification per millimeter of eyepiece meant you could use simple, comfortable eyepieces to reach the powers where planetary detail revealed itself. The Sky Rover 102 GPA Planetary is a deliberate return to that tradition. It's a 102mm f/11 Super ED air-spaced doublet built from the ground up for one thing: the best possible view of the planets, the Moon, and double stars. Not the widest field. Not the fastest imaging speed. The sharpest, cleanest, most color-free views a four-inch doublet can produce.

The key is the f/11 focal ratio. At 1122mm focal length, the optical demands on the doublet are dramatically reduced compared to faster designs. Chromatic aberration — the residual false color that even ED glass can't completely eliminate at f/6 or f/7 — is suppressed to the point where it effectively disappears at the eyepiece. Sky Rover tested the chromatic aberration curve across the full visual spectrum from 0.436 to 0.680 µm and optimized the Polychromatic Strehl Ratio — the metric that measures how well an optic performs across multiple wavelengths simultaneously, not just at the design wavelength. The practical result is a telescope that delivers planetary detail approaching the theoretical maximum for a 102mm aperture. Colors are vivid and accurate. Contrast is high. And the false color that can degrade the view in faster doublets is simply absent.

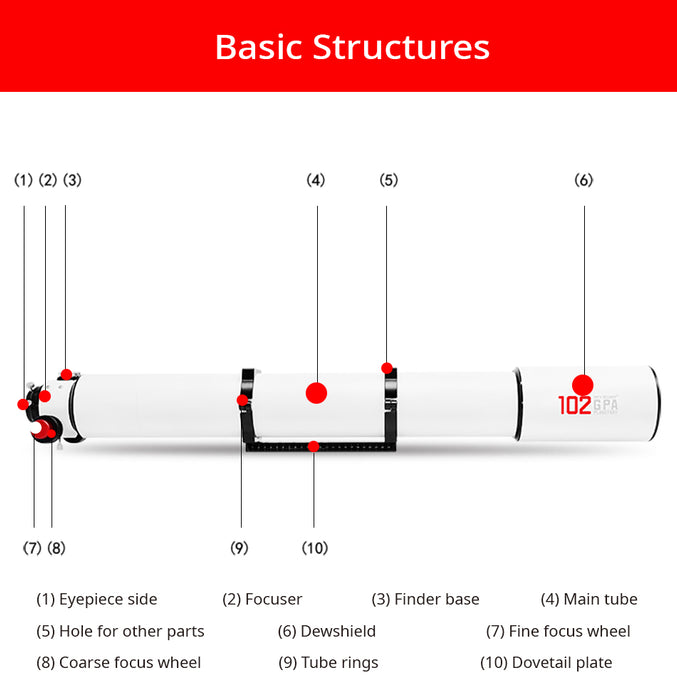

The mechanical design reflects the scope's visual priority. The two-section detachable tube allows binoviewer use without a Barlow lens — remove the 100mm extension section, and the focal plane moves inward far enough for most binoviewers to reach focus at the native 1122mm focal length. The vintage-inspired silhouette is long and elegant in the tradition of classic astronomical refractors. Set it on a wooden tripod or a period-appropriate alt-az mount, and it's as much a statement about the observer as it is about the sky. The focuser features high-quality anti-reflection treatment for smooth, precise operation at the high magnifications where this scope lives.

The Optical Design — Built for Planets

The objective is a two-element air-spaced apochromatic doublet using a Super ED element — FCD-100 extra-low dispersion glass — paired with a conventional crown element. The lens cell is engraved with the specification: 102MM F/11 SUPER ED DOUBLET APO PLANETARY FMC, along with a unique serial number. Every surface is fully multi-coated.

The f/11 focal ratio is the critical design choice. In a doublet refractor, chromatic aberration scales inversely with the square of the focal ratio. An f/11 doublet has roughly 2.5 times less secondary spectrum than an f/7 doublet of the same aperture and glass type. That's not a subtle difference — it's the difference between seeing a faint purple haze around Jupiter's limb and seeing nothing but planet. The longer focal ratio also produces a more relaxed cone of light, which means eyepieces perform better across their apparent fields — less astigmatism, less coma, cleaner edge performance. You don't need exotic eyepiece designs to get excellent views from an f/11 scope. A quality Plössl delivers clean, sharp images from center to edge.

Polychromatic Strehl Ratio — Why It Matters

Most optical specifications quote the Strehl Ratio at a single wavelength — typically 550nm (green), where the human eye is most sensitive. A high Strehl at 550nm is good, but planets aren't monochrome. Jupiter's belts have brown, orange, and tan tones. Saturn shows cream, gold, and subtle blue. Mars is red and dark brown. The Polychromatic Strehl Ratio measures how well the optic performs across the full range of wavelengths simultaneously — the way your eye actually sees.

The 102 GPA Planetary's f/11 design is specifically optimized for high PSR. The long focal ratio suppresses chromatic aberration across the entire visual spectrum, which means the color fidelity on planets is exceptional. Belt colors on Jupiter appear vivid and accurate. Saturn's globe shows subtle pastel shading. Mars displays true color contrast between the ruddy surface and dark albedo features. This is the metric that separates a scope that shows you planets from a scope that shows you planets in their true colors.

The Detachable Extension Tube

The optical tube separates into two sections. The 100mm extension tube removes without tools, shortening the back-focus path for binoviewer use. With the extension removed, most binoviewers reach focus at the native 1122mm focal length — no Barlow lens required, no magnification change, no additional glass in the optical path.

Binoviewing on the Moon and planets through a 102mm f/11 refractor is an experience that words don't fully capture. Your brain fuses the two images into something that feels three-dimensional. Lunar craters develop depth. Jupiter's atmosphere gains a sense of layering. The fatigue of monocular viewing disappears. If you've never binoviewed through a long-focus refractor, this scope is built to show you what you've been missing.

Vintage-Inspired Design

The 102 GPA Planetary is designed to evoke the elegance of classic astronomical instrumentation. The long tube, the proportions, the clean lines — this is a telescope that looks like it belongs in an observatory or a gentleman's study. Set it on a wooden tripod, and it transforms into something that's as much a work of craftsmanship as a scientific instrument. That's not an accident. Sky Rover designed this scope for observers who appreciate the tradition of visual astronomy — who understand that the experience of using a telescope is part of the experience of observing.

The tube measures approximately 40 inches fully retracted and 49 inches fully extended. The total weight is about 10.1 pounds (4.6 kg) with tube rings and dovetail — long but not heavy. The dual tube rings feature multiple threaded holes on top for a carrying handle. The retractable dew shield extends for protection and retracts for transport.

What's Included

• Sky Rover 102 GPA Planetary 102mm f/11 OTA with retractable dew shield

• 100mm detachable extension tube (installed)

• 2.5" dual-speed R&P focuser with anti-reflection treatment

• Dual tube rings with threaded handle mounting holes

• Vixen dovetail plate

• Finder base

Features

• 102mm f/11 Super ED air-spaced doublet — planetary optimized. FCD-100 glass at a long focal ratio that suppresses chromatic aberration to near-invisibility. Optimized Polychromatic Strehl Ratio for vivid, accurate planetary colors. Tested across the full visual spectrum (0.436–0.680 µm). This is a doublet that delivers planetary performance approaching the theoretical limit for 102mm of aperture.

• 1122mm focal length — native high magnification. A 10mm eyepiece delivers 112×. A 5mm delivers 224×. You reach productive planetary magnifications with simple, comfortable eyepieces — no Barlow stacking, no complex eyepiece designs required. The long focal ratio produces a relaxed light cone that makes eyepieces perform at their best.

• Detachable 100mm extension tube for binoviewers. Remove the extension section (no tools needed) and most binoviewers reach focus at the native focal length. No Barlow lens required — pure, unamplified views through both eyes simultaneously. Binoviewing on the Moon and planets through an f/11 refractor is a transformative experience.

• 2.5" dual-speed rack-and-pinion focuser with anti-reflection treatment. High-quality focuser with smooth, precise action designed for critical focus at high magnification. Anti-reflection coating on the focuser interior minimizes scattered light for maximum contrast.

• About 10.1 pounds ready to mount. Total weight approximately 10.1 pounds (4.6 kg) with rings and dovetail. The tube is long (~40 inches retracted) but not heavy — manageable on a mid-range equatorial or a quality alt-az mount.

• Vintage-inspired design aesthetic. Classic refractor proportions and clean lines designed to evoke traditional astronomical instrumentation. Pairs beautifully with wooden tripods and period-appropriate mounts. A scope that's as pleasing to look at as it is to look through.

• High-contrast planetary views. The unobstructed 102mm aperture produces clean Airy disks with well-defined diffraction rings. The f/11 focal ratio minimizes all forms of chromatic aberration. The fully multi-coated optics maximize light transmission. Together, these deliver the high-contrast, razor-sharp views that planetary observers live for.

• Dual tube rings with handle mounting holes. Multiple threaded holes on top of the rings accommodate a carrying handle for easy transport and setup. Vixen dovetail plate included as standard.

Under the Night Sky

The 102 GPA Planetary is built for the nights when the seeing is steady and the planets are high. Point it at Jupiter when the atmosphere cooperates, and you'll understand why experienced observers still reach for long-focus refractors. The equatorial bands subdivide into fine detail — festoons dripping from the north equatorial belt, white ovals in the south temperate zone, the Great Red Spot with internal structure and a wake that trails downstream. The colors are accurate: brown belts against cream zones, the GRS a distinct salmon pink, the polar regions blue-grey. At 200× or above, the Galilean moons show disks — not just points of light, but tiny resolved circles.

Saturn through the 102 Planetary is a view that makes people stop talking. The Cassini Division is a clean, dark line even at moderate magnification. The crepe ring is visible against the globe. The globe itself shows belt shading in subtle pastels — cream, gold, and hints of blue-grey at the poles. The shadow of the rings on the globe, and the shadow of the globe on the rings, are sharply defined. On the best nights, you'll catch the Encke minimum in the A ring — a subtle brightness variation that requires both resolution and contrast to detect.

Mars near opposition rewards the patient observer. Syrtis Major, Hellas Basin, the polar caps — these are clearly defined. But the 102 Planetary's chromatic purity means you'll also see subtle color variations: the orange-red of the deserts, the dark grey-brown of the mare regions, the white brilliance of the caps against the limb. A four-inch refractor at f/11 with excellent seeing will show Mars detail that surprised observers a generation ago who thought you needed 8 inches of aperture.

The Moon is where this scope will spend a lot of its time — and deservedly so. At 1122mm focal length, the image scale is large enough that you're immersed in the lunar landscape without needing extreme magnification. Craterlets pepper the floors of large craters. Rilles thread across the maria. The Straight Wall casts a razor shadow. Lunar domes show their subtle rise. The Alpine Valley reveals its central rille on good nights. Binoviewing on the Moon through this scope is an experience that makes you forget you're looking through a telescope — it feels like you're orbiting.

Double stars are a natural pursuit with 102mm of clean aperture at f/11. The theoretical resolution of ~1.14 arcseconds is achievable in practice because the long focal ratio and unobstructed aperture produce textbook diffraction patterns. Close pairs separate cleanly. Color doubles display vivid contrast. The relaxed light cone means eyepieces deliver sharp Airy disks across their entire apparent field — even simple Plössls and orthoscopics perform beautifully at f/11.

Observing Tip

The 102 GPA Planetary rewards eyepiece simplicity. At f/11, you don't need expensive ultra-wide eyepieces to get excellent performance — the relaxed light cone means that even moderate-quality eyepieces deliver clean, sharp images from center to edge. A set of quality orthoscopic eyepieces in 6mm, 9mm, 12.5mm, and 18mm covers the planetary magnification range beautifully and pairs naturally with this scope's vintage character. Orthoscopics have fewer glass elements, which means less scattered light and higher contrast — exactly what you want for planetary work. Save the wide-fields for your faster scope. The 102 Planetary deserves eyepieces that match its purpose.

Frequently Asked Questions

How does the 102 GPA Planetary compare to the standard 102 GPA (f/7)?
They're built for different observers. The f/7 is a versatile general-purpose scope for visual, imaging, and deep-sky work in a shorter tube. The f/11 Planetary is a dedicated visual specialist — longer tube, better chromatic correction, higher native magnification, and optimized specifically for planets, the Moon, and double stars. The f/11 has virtually no false color at any magnification. The f/7 has excellent color correction for its speed but can't match the f/11 on the very brightest objects at the highest powers. If planets are your passion, the Planetary is the purpose-built tool.

Is this scope useful for deep-sky observing?
It works, but it's not optimized for it. The 1122mm focal length and f/11 ratio mean that low-power wide-field views require very long focal length eyepieces — a 40mm eyepiece gives you just 28×. The narrower true field makes finding faint objects harder. For deep-sky, the shorter GPA or GPS models are better choices. The 102 Planetary is at its best on bright targets: planets, the Moon, double stars, bright planetary nebulae, and globular cluster cores.

Can I do astrophotography with this scope?
Planetary imaging with a high-speed camera — absolutely. At 1122mm native focal length, you have excellent image scale for Jupiter, Saturn, Mars, and the Moon without needing a Barlow. Attach a dedicated planetary camera (like a ZWO ASI462MC) directly to the focuser and shoot high-frame-rate video. The f/11 speed means longer individual frame exposures, but for planetary lucky imaging where you're selecting the sharpest frames from thousands, the exposure time per frame is still measured in milliseconds. For deep-sky long-exposure imaging, the f/11 ratio makes exposures impractically long — this scope is not designed for that.

What mount works best for this scope?
The weight is about 10.1 pounds (4.6 kg), which is manageable for mid-range mounts, but the tube length (~40 inches retracted, ~49 inches extended) creates a significant moment arm. You'll want a mount that can handle the leverage, not just the weight. For visual use, a quality alt-az mount with slow-motion controls is ideal — or a German equatorial like the Celestron AVX, iOptron CEM26, or Sky-Watcher EQ5. A sturdy wooden tripod with an alt-az head pairs beautifully with the scope's vintage aesthetic and is perfectly adequate for planetary and lunar observation.

Why would I choose this over a triplet APO?
At f/11, a well-made Super ED doublet achieves chromatic correction that matches or exceeds most triplets at faster focal ratios. The Polychromatic Strehl Ratio — the metric that matters most for visual planetary observation — is optimized by the long focal ratio. You get planetary-grade color correction with only two glass elements, which means fewer surfaces to scatter light and potentially higher contrast than a three-element design. The trade-off is the longer tube and the narrower application. If you want one scope that does everything, get a triplet. If you want the best possible planetary views from 102mm, this is the instrument.

Recommended Accessories

• Sky Rover 2" Diagonal (SR2D): A quality diagonal is essential. The 2" size accommodates longer eyepieces for low-power views and deep-sky scanning.

• Sky Rover UF 10mm Eyepiece: Delivers 112× — a solid starting magnification for planetary observation. Clean, straightforward performance at f/11.

• Sky Rover UWA 7mm Eyepiece: 82° apparent field at 160× — excellent for detailed planetary views with a wide, comfortable field.

• Sky Rover XWA 3.5mm Eyepiece: 100° apparent field at 321× — for those nights when the seeing allows it. Jupiter and Saturn at 300× in a 100° field through an f/11 refractor is something you won't forget.

Final Thoughts

The 102 GPA Planetary is not a do-everything scope. It's a scope that does one thing better than just about anything else in its aperture class: show you the planets and the Moon with the clarity, contrast, and color fidelity that only a well-corrected long-focus refractor can deliver. The f/11 design suppresses chromatic aberration to the vanishing point. The optimized Polychromatic Strehl Ratio means the colors you see are the colors that are there. The detachable tube accommodates binoviewers for the most immersive views in visual astronomy. And the vintage-inspired design makes the act of using this telescope feel like the tradition it carries. This is a scope for the observer who knows exactly what they want to see — and wants to see it as well as four inches of unobstructed aperture can possibly show it.
