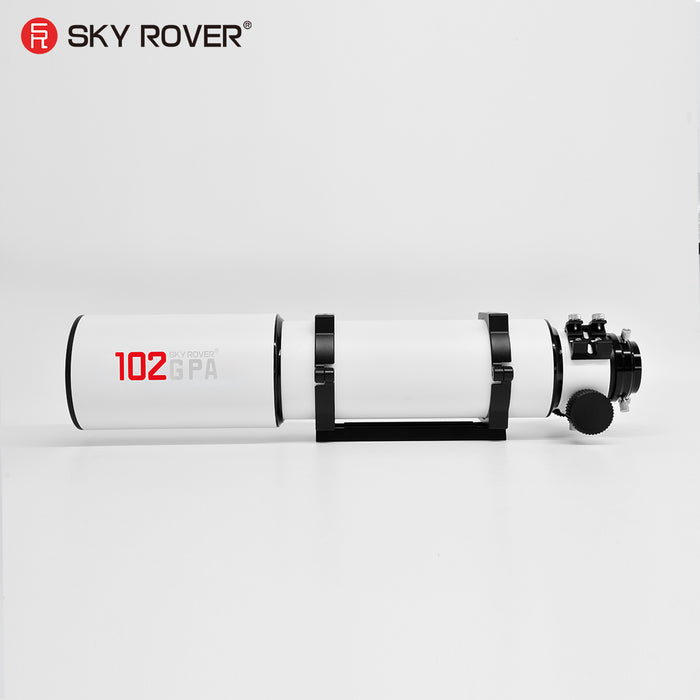

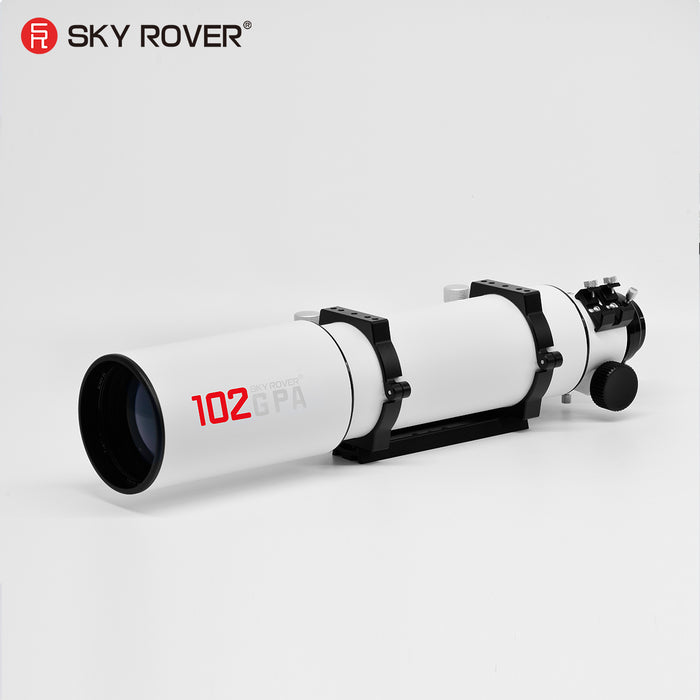

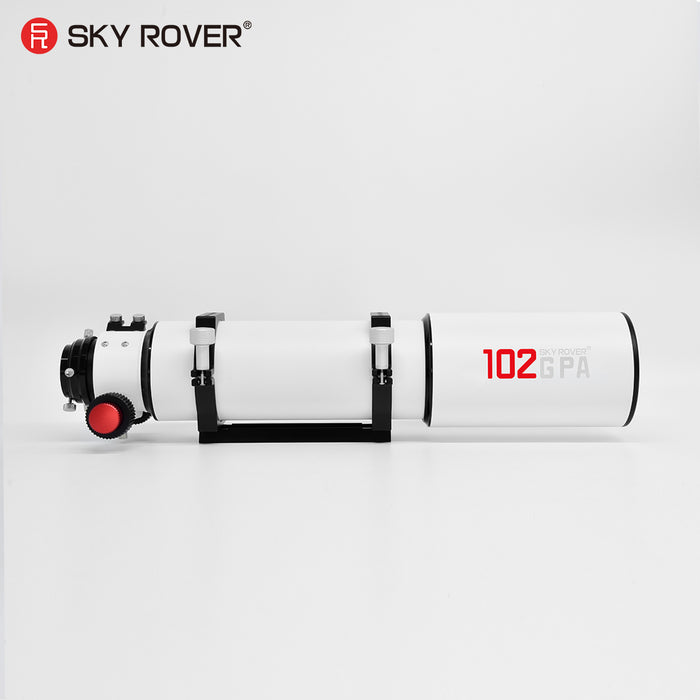

Sky Rover 102 GPA 102mm f/7 Super ED Doublet APO Refractor OTA

A 4-inch refractor has long been considered a turning point in visual observing. It retains the portability and ease of smaller instruments, but adds enough aperture to reveal detail that is just out of reach of smaller scopes. Jupiter shows finer structure in its cloud belts. Saturn’s globe takes on subtle shading. Globular clusters begin to resolve into stars.

The Sky Rover 102 GPA brings that experience into a compact, well-balanced package — a 102mm f/7 Super ED doublet apochromat weighing under 10 pounds, easily handled by a mid-range equatorial mount, and capable of delivering the kind of views that keep you observing well past midnight.

The optical design is an air-spaced doublet using a Super ED element — Sky Rover's designation for FCD-100 extra-low dispersion glass — paired with a conventional crown element. At f/7, the 102 GPA gives the doublet design room to work. Chromatic correction at f/7 in a well-made ED doublet is excellent — false color on bright stars and the lunar limb is minimal, and it stays minimal at the higher magnifications where you'd push a four-inch scope for planetary detail. The 714mm focal length delivers meaningful image scale: a 7mm eyepiece gives you 102× for planetary work, and a 24mm gives you 30× for wide-field sweeping. It's a focal length that doesn't force you to choose between planets and deep-sky — it handles both.

The 2.5-inch dual-speed rack-and-pinion focuser is the same class of hardware found across the GPA line — oversized, rigid, and positive. The rack-and-pinion mechanism eliminates Crayford-style slip under camera loads, and the dual-speed reduction lets you dial in critical focus at the magnifications where four inches of aperture really starts to show what it can do. The optional CAA (camera angle adjuster, sold separately) adds imaging versatility for astrophotographers who want to frame targets precisely without disturbing focus.

The Optical Design

The objective is a two-element air-spaced apochromatic doublet. The primary element uses Super ED glass — an FCD-100 material — for aggressive control of chromatic aberration across the visible spectrum. Every air-to-glass surface is fully multi-coated for high light transmission and the contrast that shows up as clean planetary detail and crisp star fields.

At 102mm aperture and 714mm focal length, you're working with a scope that collects 63% more light than an 80mm and over three times what a 60mm gathers. That's not just a numbers game — it translates directly into brighter planetary views, more resolved deep-sky detail, and a noticeable improvement in limiting magnitude. The theoretical resolution is approximately 1.14 arcseconds, which puts a wide range of double star pairs within reach.

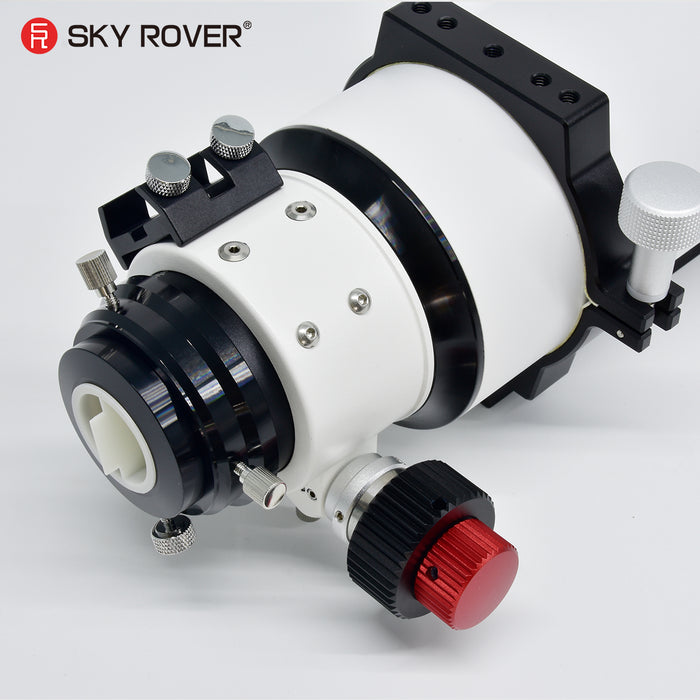

The 2.5" Focuser and Optional CAA

The focuser is a 2.5-inch rack-and-pinion with dual-speed mechanics and approximately 90mm of travel. The oversized barrel provides rigid support for camera payloads and heavy eyepieces without flexure. A 2-inch to 1.25-inch adapter is included for accessory compatibility.

Unlike the smaller 60 and 72 GPA models, the 102 GPA does not include a CAA as standard equipment. A 2.5-inch CAA is available as an optional accessory for astrophotographers who want rotational framing control. For visual-only observers, the focuser as delivered is everything you need.

Photography Package

The optional 2.5-inch 1× field flattener (sold separately) transforms the 102 GPA into a dedicated imaging platform. The flattener corrects the doublet's native field curvature for flat, round stars across the camera sensor. Paired with the optional CAA, the complete imaging train provides field correction, rotational framing control, and solid mechanical stability through the 2.5-inch focuser. At 714mm focal length on an APS-C sensor, you'll frame approximately 1.8° × 1.2° — a productive image scale for galaxies, nebulae, and star clusters.

Built to Use

The 102 GPA weighs approximately 9.3 pounds (4.2 kg) total with tube rings and dovetail. The tube measures about 23 inches fully retracted. That's still firmly in the portable category — one person can carry it from the car to the observing site, set it up on a mount, and be observing in minutes.

The scope ships with dual tube rings and a Vixen dovetail plate. The retractable dew shield extends for protection on humid nights and tucks back for compact storage. Packaging is pearl cotton protective wrapping inside double-layer cartons.

What's Included

• Sky Rover 102 GPA 102mm f/7 OTA with retractable dew shield
• 2.5" dual-speed R&P focuser with 2" to 1.25" adapter
• Dual tube rings
• Vixen dovetail plate
• Finder base

Features

• 102mm f/7 Super ED air-spaced doublet apochromat. FCD-100 extra-low dispersion glass with full multi-coating. At f/7, the doublet achieves chromatic correction that competes with many triplet designs. Four inches of clean, unobstructed aperture produces high-contrast views with minimal false color — even at planetary magnifications above 150×.
• Under 10 pounds ready to mount. Total system weight approximately 9.3 pounds (4.2 kg) with tube rings and Vixen dovetail. Still portable enough for one-person setup and mid-range equatorial mounts. A four-inch refractor that doesn't require an observatory.
• 2.5" dual-speed rack-and-pinion focuser. Rigid, positive motion with ~90mm of travel. Eliminates Crayford-style slip under camera loads. Dual-speed reduction for critical focus. 2" to 1.25" adapter included for full accessory compatibility.
• 714mm focal length — the versatile four-inch. Long enough for productive planetary magnification with standard eyepieces. Short enough for wide-field deep-sky views. Fast enough at f/7 for reasonable imaging exposure times. A focal length that serves all disciplines without compromise.
• 63% more light than 80mm. The jump from 80mm to 102mm is one of the most rewarding upgrades in amateur astronomy. Deep-sky objects that were faint smudges become structured. Globular clusters resolve. Planetary detail that was at the edge of visibility snaps into view. Four inches is where the sky opens up.
• ~1.14 arcsecond resolution. Resolves moderately tight double stars and shows fine planetary detail. The unobstructed aperture produces clean Airy disks with tight, well-defined diffraction rings.
• Optional 1× flattener for imaging. Dedicated field flattener (sold separately) corrects field curvature for round stars across the camera sensor. Pair with the optional CAA for a complete imaging train with rotational framing control.

Under the Night Sky

Four inches of refractor aperture is where planetary observing becomes genuinely engaging. The 102 GPA shows Jupiter with multiple belt zones — not just two equatorial bands, but secondary belts, festoons, and barges that appear on nights of steady seeing. The Great Red Spot shows shape and internal structure. Saturn's Cassini Division is a clean, dark line at moderate magnification, and the globe of Saturn reveals belt shading that smaller scopes barely hint at. Mars near opposition shows dark albedo markings with good definition — Syrtis Major, the polar caps, and the larger dark features are clearly visible. The Moon is spectacular: the terminator is a three-dimensional landscape, crater floors reveal central peaks and craterlets, and rilles and scarps thread across the surface with clean, sharp definition.

Double-star observing at 102mm becomes a serious pursuit. At approximately 1.14 arcseconds theoretical resolution, pairs that were beyond the reach of an 80mm or 90mm scope come into range. Tight pairs like Castor show clean splits. Color doubles like Albireo, Almach, and Izar display vivid contrast between components. The unobstructed refractor aperture produces textbook Airy patterns — tight central disks with well-defined diffraction rings — that make close doubles easier to resolve than they'd be in an obstructed telescope of equal aperture.

For deep-sky work, the step up to 102mm is where globular clusters start to truly resolve. M13 shows individual stars across its face under moderate magnification and dark skies. M5 and M3 granulate into pinpoints. Planetary nebulae — M57, M27, NGC 7662 — reveal shape, color, and edge definition. Open clusters like the Double Cluster, M35, and M37 are rich sprays of pinpoint stars. Under dark skies, you'll see spiral arm structure in M51 and brightness variations in M101. The Orion Nebula is a showpiece: wings, tendrils, the central Trapezium cluster resolved, and the darker nebulosity that frames the bright core all visible with direct vision.

For astrophotography, 714mm at f/7 on an APS-C sensor gives you a field of view that frames individual galaxies and nebulae with good image scale. M31 fills the long axis of the frame. The Rosette Nebula fits with context. M33 shows face-on spiral detail. The focal length is long enough to produce satisfying image scale but short enough to be forgiving of mount imperfections. With the 1× flattener, the 102 GPA becomes a solid imaging platform for broadband and narrowband deep-sky work.

Observing Tip

A 102mm doublet has more glass mass than the smaller GPA scopes, and it takes longer to reach thermal equilibrium. Plan for 20–30 minutes of cool-down after you set up. Start the session at moderate magnification — 50× to 80× — on easy targets while the objective stabilizes. By the time you've worked through a few star clusters or scanned the Moon at low power, the scope will be ready for higher magnifications on planets. On a good night, the 102 GPA will happily take 200× or more on Jupiter and Saturn. Use a planetary filter — a #80A light blue on Jupiter brings out belt detail, and a #23A light red on Mars enhances the dark markings. Small accessories, big results.

Frequently Asked Questions

How does the 102 GPA compare to the 102 GPA Planetary (f/11)?
They're two very different scopes built around the same aperture. The 102 GPA at f/7 is a general-purpose instrument — versatile for visual observing, deep-sky, and astrophotography with a shorter tube and wider field. The 102 GPA Planetary at f/11 is a dedicated visual specialist — long focal ratio optimized for planetary contrast and chromatic correction, with a vintage-inspired design and no CAA option. If you want one scope that does everything, the f/7 is the choice. If planetary and lunar observing is your primary passion and you want the absolute best color correction from a doublet, the f/11 is purpose-built for that.

Why doesn't the 102 GPA include a CAA like the 60 and 72 GPA?
The smaller GPA scopes are primarily imaging instruments where a CAA is nearly essential for framing. The 102 GPA serves a broader audience — many buyers will use it primarily or exclusively for visual observing, where a CAA isn't needed. Making the CAA optional keeps the base configuration focused and the price accessible.

What mount do I need?
The total system weight of about 9.3 pounds (4.2 kg) works well on mid-range German equatorial mounts. For visual use, the iOptron CEM26, Sky-Watcher EQ5, or a quality alt-az mount handles it comfortably. For imaging, the iOptron GEM28, Sky-Watcher HEQ5, or Celestron AVX provides solid performance at 714mm focal length. A star tracker can handle it for short exposures, though a full equatorial mount is recommended for guided imaging sessions.

Is there a dedicated flattener for this scope?
Yes — a 1× field flattener is available as part of the photography package (sold separately). It corrects field curvature for flat, round stars across the camera sensor. Check with us for current availability and pricing.

How does the color correction compare to a triplet APO?
At f/7, a well-made Super ED doublet corrects chromatic aberration to a degree that most visual observers cannot distinguish from a triplet at the eyepiece. On the very brightest stars, you might detect a faint whisper of color at extreme magnifications if you're specifically looking for it. Under real observing conditions, the difference between this doublet and a quality triplet is subtle. The triplet may have a slight advantage for wide-field imaging with a flattener. For visual work and planetary observation, the 102 GPA's color correction is excellent.

Recommended Accessories

• Sky Rover 1× Field Flattener: Corrects field curvature for astrophotography. Delivers round, finely defined stars across the camera sensor. Essential for deep-sky imaging.
• Sky Rover 2" Diagonal (SR2D): Full 2-inch light path for wide-field visual observing. A quality diagonal is essential for comfortable use.
• Sky Rover XWA 7mm Eyepiece: 100° apparent field at 102× — the perfect planetary magnification in a four-inch scope. Immersive views of Jupiter, Saturn, and the Moon.
• Sky Rover UWA 16mm Eyepiece: 82° apparent field at 45× — ideal for deep-sky sweeping, star clusters, and large nebulae.
• Sky Rover UF 24mm Eyepiece: Delivers 30× for wide-field views and target finding.

Final Thoughts

The 102 GPA is the scope where the GPA line becomes a serious telescope. Four inches of Super ED aperture resolves planetary detail, splits double stars, and gathers enough light that deep-sky objects show real structure. The f/7 ratio lets the doublet do its best chromatic correction work while keeping the tube manageable and the field of view wide. At under 10 pounds, it's still a scope that one person sets up in minutes — no observatory required, no help needed. For the observer who has outgrown an 80mm and wants more aperture without the weight and complexity of a triplet, the 102 GPA delivers the performance where it matters: at the eyepiece, under the sky, on a Tuesday night when you almost didn't go out.
