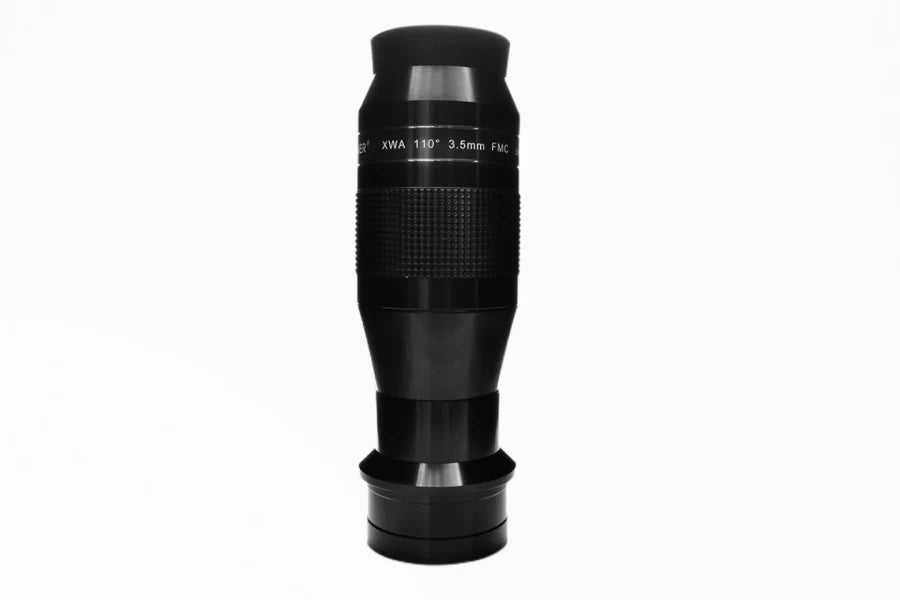

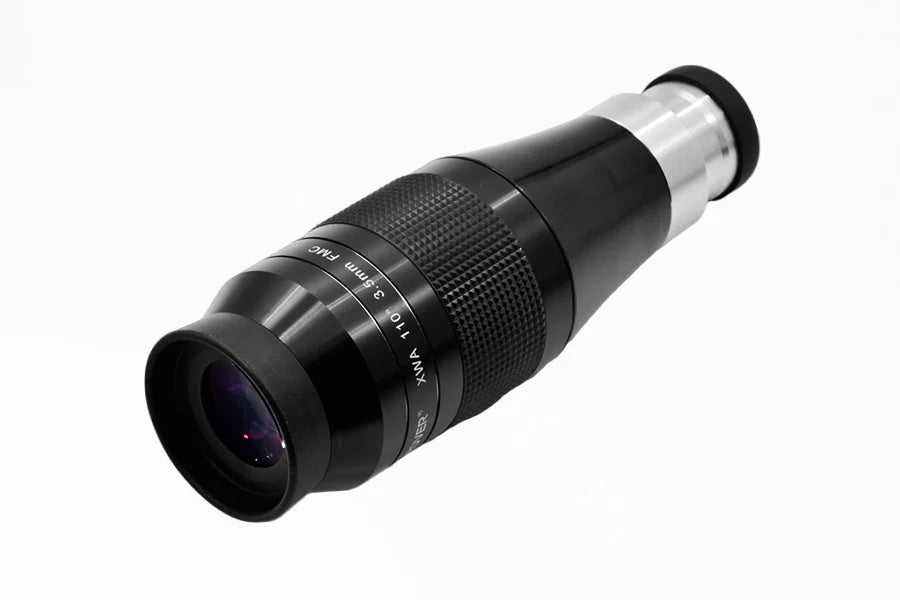

A 3.5mm eyepiece is a specialist. It's the one you reach for when the atmosphere goes still — when stars stop shimmering, when planetary detail snaps into focus at moderate power, and you know the night can handle more. In an 8" f/6 Dobsonian, this eyepiece delivers 348x. In a 130mm f/7 refractor, 260x. Those are serious magnifications, and on the right night, they reveal detail that lower-power eyepieces simply can't touch. What makes the XWA 3.5mm different from other high-power eyepieces is the field. At 110° apparent, you're not staring down a narrow tube. You're immersed. Even at this magnification, the wide apparent field keeps the view open and immersive instead of cramped and restrictive.
The Optics
Nine elements in six groups is a complex formula, and the complexity exists for a reason: holding sharpness and contrast across that 110° field at very short focal length. At 3.5mm, every optical imperfection is magnified along with the image. Field curvature, edge softness, internal reflections — they all become more visible as magnification climbs. The XWA’s multi-element design does a good job of controlling these issues across the field. Edge-blackened elements absorb stray light before it becomes contrast-killing reflections. FMC broadband coatings reduce surface reflections at each air-glass interface. At high magnification on low-contrast detail — planetary belts, faint nebular structure, the components of a tight double star — that optical discipline matters.
The dual 1.25"/2" barrel with stainless steel lower section provides a precise, rigid fit in 2" focusers. The foldable rubber eyecup accommodates glasses wearers and helps position your eye at the correct distance for the full field. Eye relief is listed at approximately 15mm.
When to Use It
This is not an every-night eyepiece, and that's fine. It's designed for the nights that reward high magnification — steady seeing, bright targets, and moments where you need to resolve fine detail. Planetary opposition nights. Tight double stars near your aperture's resolution limit. Small planetary nebulae that need magnification to show structure. On an average night with moderate turbulence, you'll get more from the 5mm or 7mm XWA. On those exceptional nights when the atmosphere cooperates, the 3.5mm will show you things the longer focal lengths can't reach. Owning it means you're ready when conditions are right.
One practical note: at 348x in an 8" scope, you're approaching the useful magnification ceiling for that aperture. The image will be dimmer, and the exit pupil is small — about 0.6mm. That's enough for bright targets (planets, double stars, the Moon) but not ideal for faint extended objects. This is primarily a planetary, lunar, and double-star eyepiece, with some use on bright compact deep-sky objects. The 110° field just means you don't sacrifice context while you're using it.
What's Included
- Sky Rover XWA 3.5mm Extra Wide Angle eyepiece
- Dual 1.25"/2" barrel

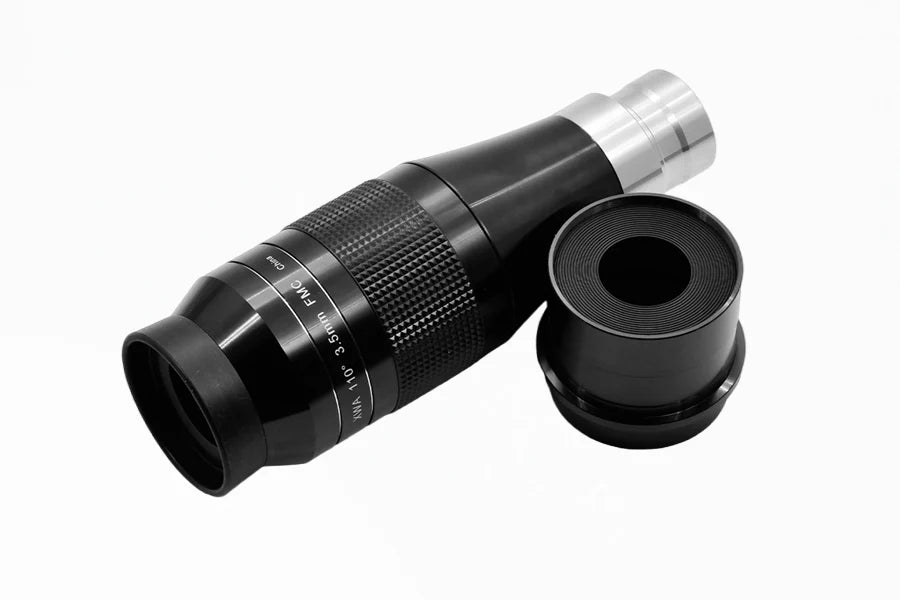

- Foldable rubber eyecup
- Lens caps (top and bottom)
- Lens cleaning cloth
Features
-
110° apparent field of view. The widest in the XWA line. At high magnification, you see the target and its surroundings — not just a narrow slice. Context matters, especially when you're tracking planetary detail or splitting close doubles.
-
9 elements in 6 groups. Optical complexity that corrects for the problems short focal length creates — field curvature, edge softness, internal reflections. Sharpness and contrast hold across the full field, not just on-axis.
-
Edge-blackened elements. Stray light is absorbed inside the eyepiece before it can bounce between surfaces and reduce contrast. On low-contrast planetary detail, this makes a visible difference.
-
FMC broadband coatings. Every air-glass surface is fully multicoated. More light reaches your eye. Fewer ghost reflections. Better contrast on faint detail.
-
3.5mm focal length. 348x in an 8" f/6, 260x in a 130mm f/7. These are magnifications that resolve fine planetary structure and split close double stars. A specialized tool for the nights that deserve it.
-
Stainless steel lower barrel. Stiffer and more durable than standard aluminum. Precise fit in a 2" focuser drawtube. Resists corrosion from humidity and dew.
-
Dual 1.25"/2" interface. Works in any standard focuser. Drop it in a 2" drawtube directly, or use the 1.25" barrel in smaller instruments.
-
Foldable rubber eyecup. Fold it down for glasses wearers. Leave it up to help position your eye at the correct relief distance for the full 110° field.
Under the Night Sky
Jupiter on a night of steady seeing is where this eyepiece earns its keep. At 348x in an 8" Dobsonian, The Great Red Spot can show more than its basic outline, with hints of internal structure and color variation when seeing is unusually steady. The North and South Equatorial Belts resolve into distinct sub-bands with festoons curling between them. Shadow transits of the Galilean moons appear as sharp dark dots crossing the disk. The 110° field means you see all of this at once — the full disk, the moons in the field, the surrounding context — without the claustrophobic feeling of a narrow-field high-power eyepiece.
Saturn at opposition rewards this magnification with the Cassini Division clearly defined, the Crepe Ring visible against the planet's disk, and cloud belts on the globe itself. The shadow of the rings on the planet and the planet's shadow on the rings both show as distinct, three-dimensional features.
Double stars are the other natural target. Pairs near your aperture's Dawes limit — Castor at 3.2" separation, Porrima when it's tight, Epsilon Boötis with its striking color contrast — benefit from the magnification this eyepiece provides. The wide field helps because you can see the stars, their diffraction patterns, and any companion clearly without hunting.
Small planetary nebulae like NGC 7662 (the Blue Snowball) or NGC 6826 (the Blinking Planetary) begin to show disk-like structure at this magnification rather than appearing stellar. The Ring Nebula (M57) takes magnification well, with the central hole becoming obvious and subtle unevenness in the ring sometimes visible in steady air.
Observing Tip
How do you know when the night is right for 3.5mm? Start at lower power. If your 7mm or 9mm eyepiece is delivering crisp, steady images with no shimmer on bright stars, step up to the 5mm. If the 5mm still looks sharp and stable, it's a 3.5mm night. Don't force it — the atmosphere decides, not your ambition. On the nights that cooperate, this eyepiece shows you detail you didn't know your telescope could resolve. On the nights that don't, put it away without guilt and enjoy the view at 5mm or 7mm.
Frequently Asked Questions
Is 348x too much for an 8" telescope?
On an average night, probably. On a night of excellent seeing, no. A traditional upper-end rule of thumb is about 50x per inch of aperture, though actual seeing often limits you well before that. For an 8" scope, that's 400x — and 348x falls well within that range. You'll know the night supports it when your lower-power views are rock-steady. This eyepiece exists for those moments.
Would this work in a Schmidt-Cassegrain?
Technically it fits, but at 2032mm focal length an 8" SCT produces 580x with a 3.5mm eyepiece. That's beyond what even excellent seeing typically supports. If you use an SCT, the 5mm or 7mm XWA is a better match for high-power work. The 3.5mm is best paired with f/5 to f/7 telescopes where the resulting magnification stays under 400x.
Can I use this for deep-sky observing?
For bright, compact deep-sky objects — small planetary nebulae, bright globular cluster cores — yes. For faint extended objects like galaxies or large emission nebulae, no. The exit pupil at 348x in an 8" scope is about 0.6mm, which means a dim image. This eyepiece excels on planets, the Moon, double stars, and compact bright targets.
How does the eye relief feel?
The listed eye relief is approximately 15mm. That's comfortable for most observers without glasses. If you wear glasses for astigmatism, you may find it workable with the eyecup folded down, though it will feel tighter than the longer-focal-length XWAs. If you only need glasses for focus correction, remove them — the focuser handles that.
Is the 3.5mm or the 5mm a better first XWA purchase?
The 5mm. It works on more nights, covers a wider range of targets, and delivers high magnification that the atmosphere can support more often. The 3.5mm is a follow-up purchase for observers who've used the 5mm and want to push further on their best nights. Start with the 5mm. Add the 3.5mm when you're ready for it.
Accessories
-
Sky Rover XWA 5mm eyepiece. The natural companion — your primary high-power eyepiece for most nights. The 3.5mm steps in when conditions are exceptional; the 5mm handles everything else.
-
Sky Rover XWA 7mm or 9mm eyepiece. Medium-high power options that work on any night. Building a set of XWAs in the 3.5–9mm range gives you continuous coverage from moderate to extreme magnification, all with the same 110° field.
-
Padded eyepiece case. Protects the optics during storage and transport. Nine elements of coated glass deserve better than a jacket pocket.
Final Thoughts
The XWA 3.5mm is the eyepiece you use least often and value most. It waits for the nights when the atmosphere stills, when every other eyepiece in your case has already delivered its best, and you reach for one more step of magnification. Those nights happen a handful of times a season — and when they do, this eyepiece shows you planetary detail, double star separations, and compact nebular structure that nothing else in your collection can reach. The 110° field means you don't pay for that magnification with tunnel vision. You see the target, its context, and the full experience at once. It's not the first eyepiece to buy. It's the one you add after you know what your telescope and your skies can do. And on those still, clear nights when everything lines up, it's the one you're glad you own.
