There’s a point in observing where the sky stops feeling like a collection of objects and starts feeling like a place. Star clouds connect. Nebulae sit in their surroundings instead of floating alone. Clusters, galaxies, and dark lanes all share the same field. You’re not moving from target to target — you’re exploring.

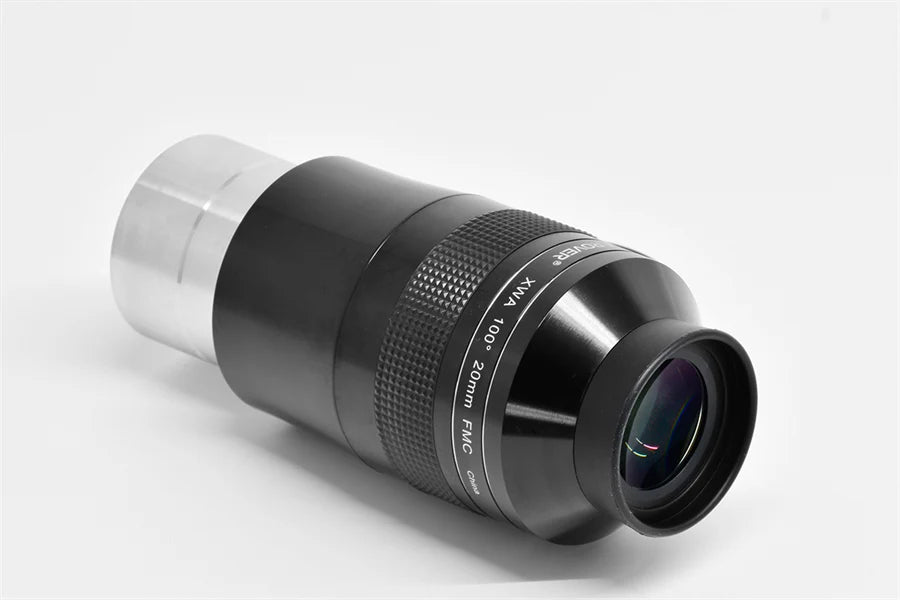

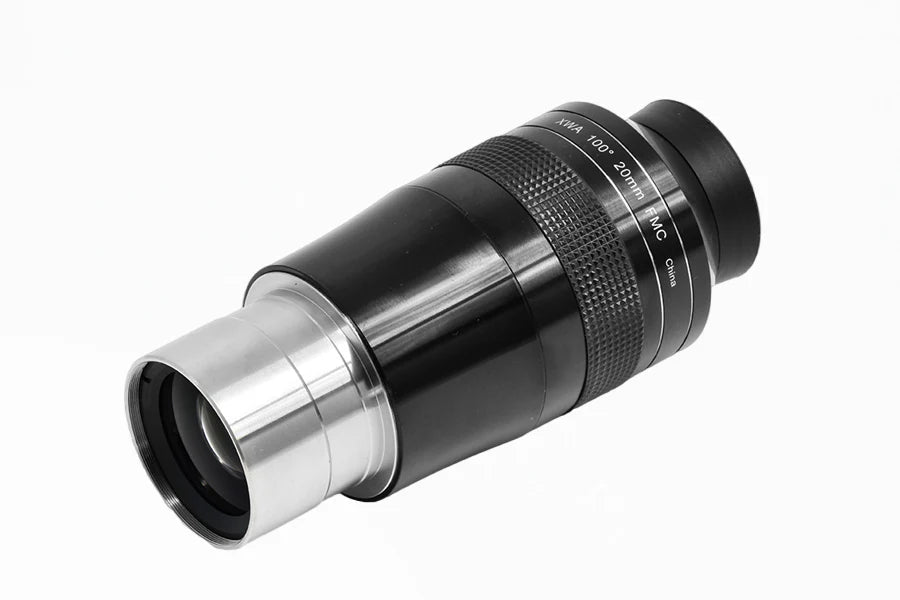

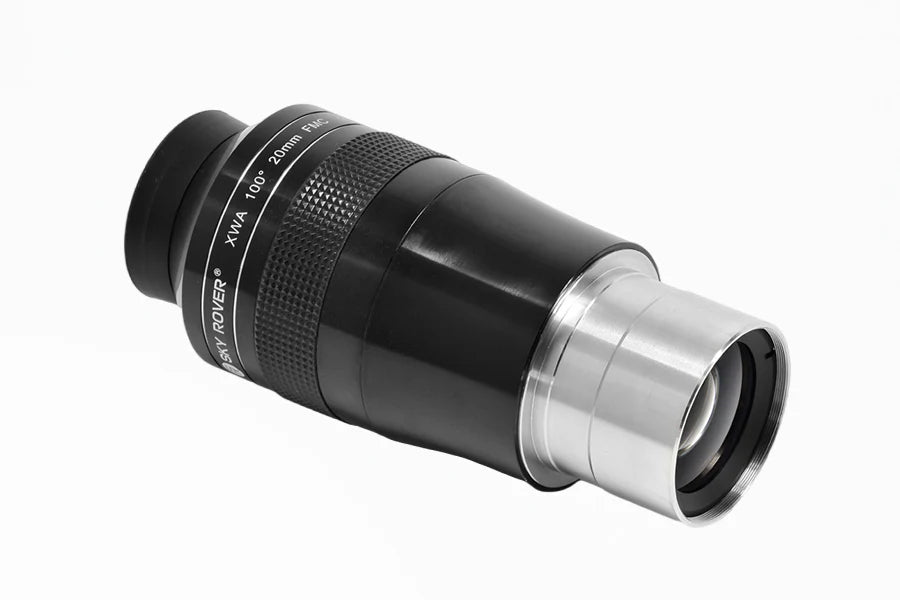

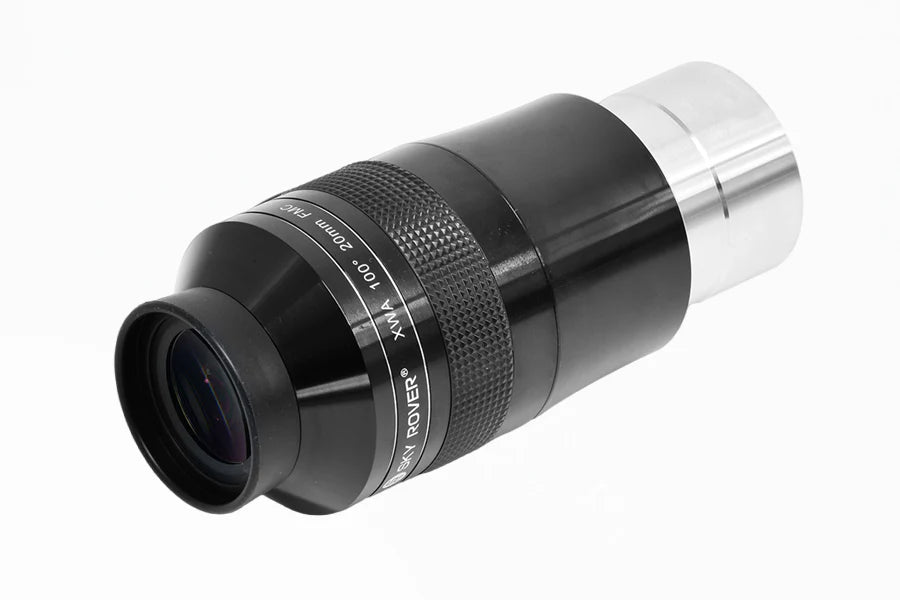

That’s what a true wide-field eyepiece is supposed to do, and the 20mm XWA is built for exactly that role. In an 8-inch f/6 Dobsonian, it delivers about 60x with a field wide enough to frame large nebulae, star clouds, and entire regions of the Milky Way at once. It’s the low-power anchor of the XWA line — the eyepiece you start with, the one that shows you where you are before you move in for detail.
With a 100° apparent field and a large exit pupil typical of low-power 2" eyepieces, it delivers bright, immersive views of faint deep-sky objects. Nine elements in six groups, fully multicoated and edge-blackened, maintain contrast and control stray light across the field. This is the eyepiece for observers who want to experience the sky, not just examine it.
The Optics
Twenty millimeters is the low-power anchor — the eyepiece that frames entire constellations, entire molecular cloud complexes, entire galaxy clusters in a single view. The nine-element design maintains sharpness across the 100° apparent field, so you're seeing everything clearly from edge to edge. There's minimal field curvature and well-controlled edge performance.
The construction is precision 2" barrel with standard 2" filter threads. If you own a light pollution filter, a nebula filter, or a planetary filter in 2" size, it screws directly onto this eyepiece. Edge-blackened elements and FMC coatings work together to maximize light transmission and minimize contrast loss from internal reflections. On faint objects, that's the difference between seeing structure and seeing a glow.
For Any Wide-Field Scope
In a fast, wide-field Dobsonian (f/4 or f/5), the 60x from an 8-inch scope is ideal low power. The 100° field frames everything beautifully. In a refractor, the low magnification is forgiving of poor seeing while still showing constellation context and object structure. In a binocular viewer pair, the large exit pupil and 15mm eye relief make this a nearly ideal low-power binoviewing eyepiece. This is the eyepiece you want when the goal is to experience the sky, not analyze it.
What's Included
- Sky Rover XWA 20mm Extra Wide Angle eyepiece
- 2" barrel (no 1.25" adapter — this is a dedicated 2" eyepiece)
- Foldable rubber eyecup
- Lens caps (top and bottom)
- Lens cleaning cloth
- Standard 2" filter threads (for nebula filters, light pollution filters, etc.)
Features
-
100° apparent field of view — One of the widest immersive views a single eyepiece can deliver. Frame constellations. Frame star clouds. Frame the entire extent of large nebulae.
-
9 elements in 6 groups — Serious optical correction maintains edge sharpness across the full 100° field even at low magnification.
-
Edge-blackened optical elements — Stray light control that maintains contrast on low-surface-brightness objects. At low magnification, internal reflections can wash out subtlety. This design prevents that.
-
FMC broadband coatings — Reduce reflections across the visible spectrum. Every optical surface is treated. More photons reach your eye on faint objects.
-
Standard 2" filter threads — Direct compatibility with 2" nebula filters, light pollution filters, planetary filters. No adapters needed.
-
20mm focal length — the wide-field anchor — 60x in an 8" Dob with 1.66° field (frame constellations), 102x in an 8" SCT with 0.98° field (still generous), 46x in a 130mm refractor with 2.19° field (explore the Milky Way).
Under the Night Sky
The Orion Nebula (M42) and the surrounding Orion Sword complex at 60x in an 8-inch scope fills the entire field. You see the three Sword nebulae all at once: M42 (the Great Nebula), M43 (the Running Man), and NGC 1977 (the head of the Sword). The detail — the trapezium at the core of M42, the dark bay to the northeast, the structure of the entire cloud complex — is all there in context. This is one of the most rewarding views in the catalog at this magnification.
The Veil Nebula complex at 46x in a 130mm refractor can show the northeastern section clearly, especially with a nebula filter. No hunting to assemble a picture. It's all there — bright eastern veil, fainter western structures, and the constellation context.
Cluster of galaxies in Coma Berenices at 46x can reveal multiple galaxies across the field under dark skies. You see the relationship between objects, the clustering, the spatial arrangement. This is the magnification where the universe's large-scale structure becomes visually obvious.
Open clusters like M45 (the Pleiades) at 60x shows the central bright stars and the fainter companions across the entire field. You see the three-dimensional structure and the relationship between the cluster and surrounding stars.
Observing Tip
The 20mm XWA is your opening eyepiece. Begin any observing session with this, get oriented, understand the field and the sky relationships, then step up to higher power (13mm, 9mm, 7mm) when you want detail on specific targets. This focal length is where you experience the sky, not just objects within it. On dark nights when the Milky Way is obvious, this eyepiece makes you understand why you bought a telescope.
FAQ
Is 60x too low for an 8-inch Dobsonian?
Not for deep-sky work. 60x is the magnification where you explore constellations and understand galactic context. It's not right for the Moon or planets — they need magnification. But for nebulae, galaxies, clusters, and the Milky Way itself, 60x in an 8-inch scope is ideal. You're limited by the darkness of the sky, not the magnification.
Can I use 2" filters on this eyepiece?
Yes. The XWA 20mm has standard 2" filter threads. Nebula filters (OIII, H-beta, UHC), light pollution filters, planetary filters in 2" size screw directly on. No adapters. No complications. This is valuable if you own 2" filters — they work directly with this eyepiece.
How much field of view do I get in different scopes?
In an 8" f/6 Dob (1200mm focal length): 1.66° true field. In an 8" f/10 SCT (2032mm focal length): 0.98° true field. In a 130mm f/7 refractor (910mm focal length): 2.19° true field. In a 150mm f/8 refractor (1200mm focal length): 1.66° true field. Divide the scope's focal length by 20mm to get magnification, then divide the apparent field (100°) by magnification to get true field.
Accessories
-
Sky Rover XWA 13mm eyepiece — Higher magnification companion. The 20mm + 13mm pair covers extended deep-sky observing from ultra-wide field to survey magnification.
-
Sky Rover XWA 9mm or 7mm eyepiece — For nights when you want even more magnification and detail.
-
2" nebula filter (OIII, H-beta, UHC) — Screws directly onto the filter threads. Emission nebulae show dramatic improvement in visibility, especially at this low magnification.
-
2" light pollution filter — If you're observing from a suburban site, this filter screws directly on and improves nebula and galaxy contrast.
Final Thoughts
The XWA 20mm is the eyepiece that reminds you what wide-field observing is supposed to feel like. It's not about magnification or seeing planetary detail. It's about looking at the sky whole — seeing constellations in context, understanding the Milky Way's structure, watching the universe organize itself across the field. The 34.8mm exit pupil delivers maximum light to your eye, making faint nebulae as bright as optics allow. The 100° field makes the view immersive. This is the eyepiece for the observer who wants to explore, not just examine. If you could own only one XWA, make it the 20mm.
