Star alignment isn't the most exciting part of owning a computerized telescope. It's simply the job that has to be done before the telescope can start doing what you bought it for.
The Celestron StarSense AutoAlign V2 takes care of that job for you. Attach it to a compatible Celestron computerized telescope, connect it to the mount's AUX system, power everything up, and select Auto Align. StarSense photographs several areas of the sky, recognizes the star patterns it sees, and builds the pointing model your mount needs for accurate GoTo operation. In roughly three minutes, you're ready to observe — without identifying alignment stars or carefully centering them in an eyepiece yourself.
The basic idea made the original StarSense one of Celestron's most useful accessories. V2 keeps that simplicity but updates almost everything behind it. A more sensitive Sony back-illuminated monochrome sensor replaces the original 1.2-megapixel camera, a considerably more capable onboard computer handles the plate solving, USB-C adds direct computer access, and you no longer need the dedicated StarSense hand controller that came with the original version.
Use the NexStar+ hand control already supplied with your compatible Celestron mount, control the system from Celestron's free CPWI software on a Windows PC, or use the SkyPortal app with a compatible Wi-Fi telescope or SkyPortal WiFi Module. The result is a cleaner, more flexible StarSense than the original — and one less hand controller to keep track of.
Features
-
Automatic alignment in about three minutes. StarSense photographs the sky, plate-solves the images, and builds the telescope's pointing model automatically. You don't need to know which stars you're looking at before you begin.
-
New Sony IMX462LLR-C monochrome sensor. The V2 moves from the original StarSense's 1.2MP Aptina sensor to a 2.13MP back-illuminated Sony CMOS sensor with 2.9-micron pixels, improving sensitivity and star-field recognition.
-
Fast 20mm f/2 optics. The fully multi-coated, air-spaced doublet gives the camera a fast, wide view of the sky so it can identify star patterns quickly.
-
More capable onboard processing. StarSense V2 carries its own integrated computer module, allowing alignment calculations and much of the system intelligence to live inside the accessory itself.
-
No dedicated StarSense hand controller required. V2 works with a compatible NexStar+ hand control, Celestron CPWI software, or the SkyPortal app. The older StarSense hand controller is not compatible with V2.
-

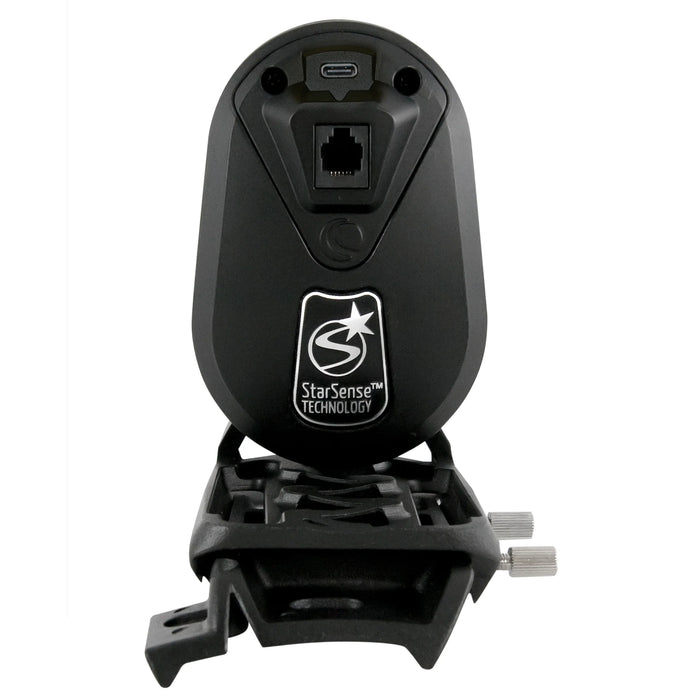

USB-C connection. Connect StarSense V2 directly to a PC for Live View focusing, diagnostic-log access, and direct firmware updates.
-
Polar alignment assistance. On compatible equatorial mounts — or compatible alt-azimuth mounts used on a wedge — StarSense can assist with polar alignment without requiring a direct view of Polaris.
-
Improved GoTo pointing. Once aligned, StarSense creates the sky model your mount uses to place selected objects near the center of the eyepiece or imaging sensor. CPWI and SkyPortal also support multi-point mount modeling for additional refinement.
-
Large and small mounting brackets included. The supplied brackets allow the camera to fit a broad range of compatible Celestron optical tubes.
How StarSense AutoAlign Works
A computerized telescope knows where it wants to point, but before it can accurately find anything, it has to understand how the mount is positioned relative to the real sky. Traditionally, you provide that information by identifying known stars and manually centering them one after another.
StarSense replaces that process with plate solving.
The camera takes an image of the stars above it and the onboard computer compares the pattern in that image with its internal sky model. From that pattern it can determine exactly where the telescope is pointing. StarSense repeats the process in several parts of the sky and uses those measurements to build the mount's alignment model.
You don't have to recognize Vega from Arcturus. You don't have to wonder whether you centered the correct star. The camera handles the recognition and the computer does the geometry.
If a tree, roofline, or other obstruction blocks one part of the sky during the automatic routine, StarSense can move elsewhere and try another field rather than requiring you to start the entire process over.
There is a one-time calibration step after initial installation so StarSense knows the exact relationship between its own field of view and the center of your telescope's field. As long as the StarSense camera remains mounted in the same position, that calibration normally does not need to be repeated.
What's Different About V2?
If you've used the original StarSense, the observing experience will feel familiar. Push a button, let the telescope look around the sky, and begin observing a few minutes later. The important changes are underneath that familiar workflow.
The original StarSense used a 1.2-megapixel Aptina MT9M034 CMOS sensor and relied on a dedicated StarSense hand controller. V2 uses a 2.13-megapixel Sony IMX462LLR-C back-illuminated monochrome sensor together with a substantially more capable computer built into the camera assembly.
That change is what allows V2 to work with the standard NexStar+ hand control and makes USB-C functions such as Live View, diagnostics, and direct firmware updating possible.
Live View is particularly useful if the StarSense camera ever needs its own focus checked or adjusted. On the original system, camera-focus problems were not something the owner could easily diagnose and correct. V2 lets you view the camera image from a connected PC and deal with the issue directly.
The new version also expands the polar-alignment workflow. With a compatible equatorial mount, StarSense can help establish accurate polar alignment even when Polaris itself is hidden by a house, tree, or other obstruction — a useful feature for imagers working from the same imperfect backyard most of us actually have.
Compatibility
StarSense AutoAlign V2 is designed for compatible Celestron computerized mounts. According to Celestron's current compatibility list, supported systems include:
- Advanced VX
- CGX
- CGX-L
- CGEM
- CGEM II
- CGEM DX
- CGE Pro
- NexStar 6SE and 8SE
- NexStar Evolution
- CPC
- CPC DX
StarSense AutoAlign V2 is not compatible with:
- NexStar SLT
- Astro Fi
- SkyProdigy
- LCM series
- NexStar 4SE and 5SE
- Advanced CG-5 GT
This is worth checking carefully if you're replacing an original StarSense. Compatibility is not identical between the first-generation product and V2.
StarSense V2 connects to the mount's AUX system. Do not connect it to an ST-4 autoguider port. If your mount needs an additional AUX connection, Celestron's AUX Port Splitter #93919 can be used.
If you plan to operate V2 through a NexStar+ hand control, make sure the controller is running compatible current firmware. Celestron specifies NexStar+ firmware version 5.35.5340 or later for StarSense AutoAlign V2 operation.
Frequently Asked Questions
Does StarSense AutoAlign V2 guide my telescope for astrophotography?
No. StarSense AutoAlign V2 automates sky alignment, improves the mount's pointing model, and assists with polar alignment, but it is not an autoguider. Celestron's StarSense AutoGuider is a different product designed to add guiding capability.
Do I still need my original StarSense hand controller?
No. In fact, the older dedicated StarSense hand controller is not compatible with StarSense AutoAlign V2. Use a compatible NexStar+ hand control, Celestron CPWI software, or the SkyPortal app instead.
Do I need a computer to use it?
No. A computer is not required for normal automatic alignment when using a compatible NexStar+ hand controller. PC connection through USB-C is useful for functions such as Live View, diagnostics, firmware updates, and CPWI control.
Can I control StarSense from my phone?
Yes, when used with a compatible Wi-Fi-enabled Celestron mount or Celestron SkyPortal WiFi Module. The SkyPortal app provides telescope control and StarSense alignment from a smartphone or tablet.
Does it really align without me identifying any stars?
Yes. StarSense uses plate solving to recognize the star patterns in its own camera images. You don't have to know which stars it is using or center them manually during the normal automatic alignment routine.
Does it need to see Polaris?
No for normal sky alignment, and its polar-alignment assistance can also work without a direct view of Polaris on compatible equatorial or wedge-mounted systems.
Will trees or a roofline prevent it from aligning?
Not necessarily. If StarSense encounters a field that is too obstructed to solve reliably, it can move to another area of the sky and continue the alignment routine.
Can I use it to find the Sun?
No. StarSense AutoAlign V2 depends on detecting star patterns and is not intended for daytime solar pointing. Never allow the StarSense camera itself to point at the Sun; concentrated sunlight can damage its image sensor.
Why might StarSense have difficulty near a bright Moon?
A bright Moon can wash out nearby stars in the StarSense camera's field, particularly through haze. If there aren't enough visible stars for the system to identify a pattern, plate solving in that region may fail.
Is V2 worth changing from the original StarSense?
The basic benefit is the same: automatic alignment. V2's reasons for upgrading are the newer and more sensitive camera, onboard processing, USB-C connectivity, user-accessible Live View and firmware functions, expanded control choices, and the elimination of the dedicated StarSense hand controller. Whether those changes justify replacing a working original system depends on how much those features matter in your particular setup.

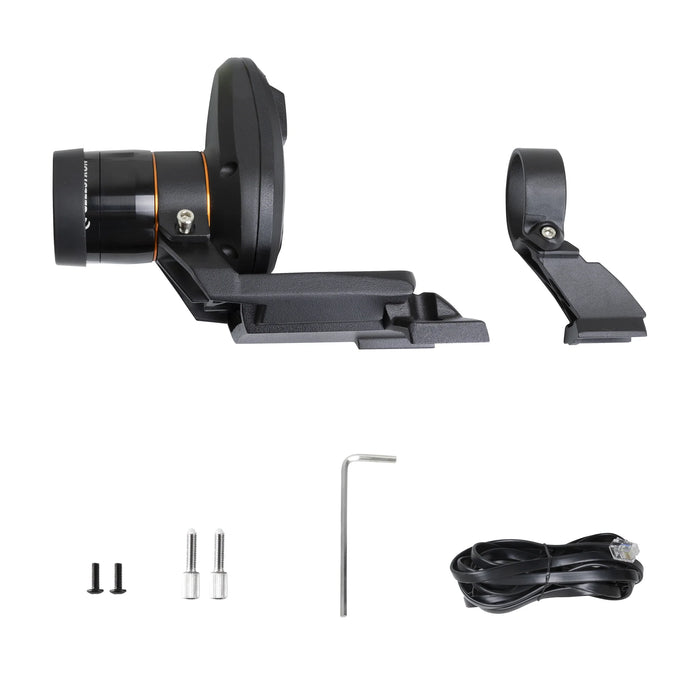

What's Included
- Celestron StarSense AutoAlign V2 camera
- Large mounting bracket
- Small mounting bracket
- Camera-to-mount connection cable
- Mounting hardware
Final Thoughts
The original StarSense solved a very simple problem: computerized telescopes are considerably more enjoyable once they're aligned, but manually aligning them every night isn't the part most people look forward to.
StarSense AutoAlign V2 keeps that original idea intact and modernizes everything around it. The camera is more sensitive, the computer is now inside the accessory, the special hand controller is gone, USB-C makes updates and diagnostics far easier, and the system offers more ways to control it than before.
It doesn't observe for you, and it doesn't turn an incompatible mount into a GoTo telescope. What it does is remove a repetitive setup step from a compatible Celestron system. Set the telescope outside, let StarSense figure out where it is, and spend the rest of the night using the telescope instead of aligning it.
